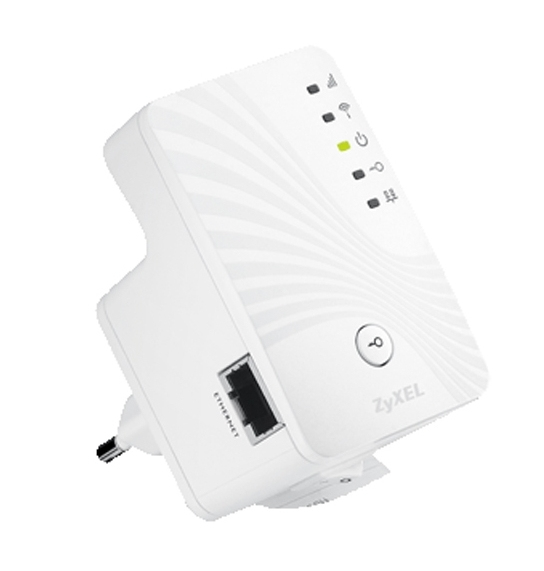

WRE2205 bridge/repeater 300 Mbit/s
Model WRE2205Part no. WRE2205-EU0101FEAN 4718937569489
21 specifications
- Speed300 Mbit/s
- ConnectivityWireless
- Weight85 g
- Antenna gain level (max)2 dBi
- Cabling technology10/100Base-T(X)
- MAC address filteringYes
Overview
- Speed
- 300 Mbit/s
- Connectivity
- Wireless
- Weight
- 85 g
- Antenna gain level (max)
- 2 dBi
- Cabling technology
- 10/100Base-T(X)
- MAC address filtering
- Yes
- Brand
- Zyxel
- Category
- Bridges & Repeaters
- Model
- WRE2205
- Part numbers
- WRE2205-EU0101F, WRE2205
- EAN / UPC
- 4718937569489, 100177370774, 168141653582, 760559120153 +5 more
- Also known as
- Zyxel WRE2205 bridge/repeater 300 Mbit/s
Specifications
21 specifications in 10 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 2 dBi |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
| MAC address filtering | Yes |
Features
| Specification | Value |
|---|---|
| Power LED | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 3 W |
| Power requirements | 5 V, 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | CE, FCC |
| Safety | CE LVD |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 46 x 42 x 73 mm |
| Weight | 85 g |
