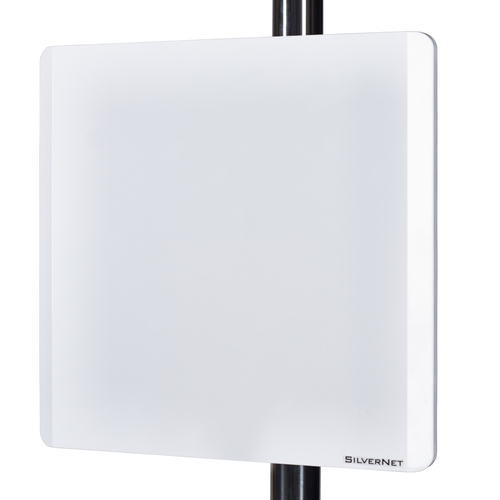

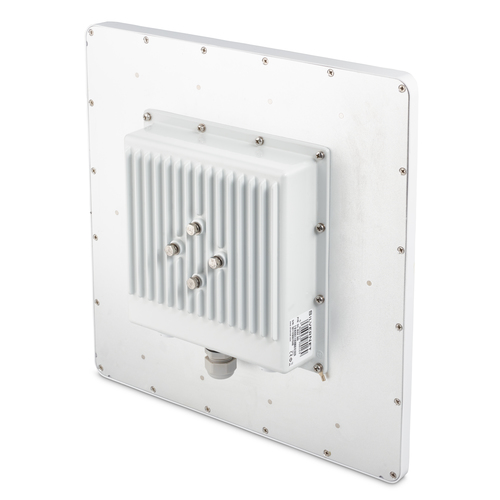

MAX 500
Model MAX 500Part no. SIL MAX 500EAN 5060693980169
88 specifications
- Speed500 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- Weight2.5 kg
- ColourWhite
- Antenna designInternal
Overview
- Speed
- 500 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Weight
- 2.5 kg
- Colour
- White
- Antenna design
- Internal
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- MAX 500
- Part number
- SIL MAX 500
- EAN / UPC
- 5060693980169
- Also known as
- SilverNet MAX 500 Network bridge 500 Mbit/s White
Specifications
88 specifications in 16 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Maximum transfer distance | 60000 m |
| Supported data transfer rates | 95, 240, 500, 1000Mbits/s |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antenna gain level (max) | 23 dBi |
| Pan/tilt-axis range | 180° |
| Antennas quantity | 1 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Transmission gain | 0 - 23 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Output power (dBm) | 26 |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Indoor range | 60000m |
| Outdoor range | 60000m |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
Management features
| Specification | Value |
|---|---|
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Yes |

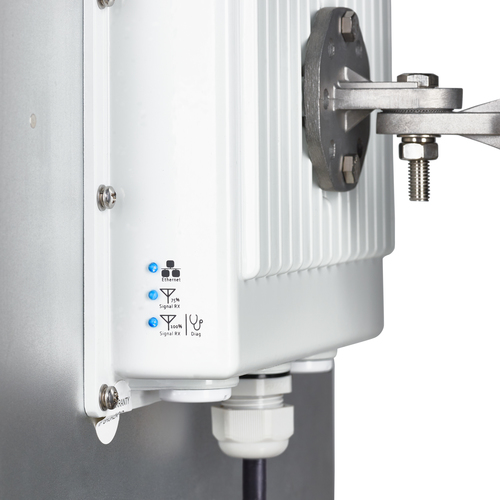

| LED indicators | LAN, Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| International Protection (IP) code | IP67 |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Surge protection | Yes |
| Wall mountable | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Mean time between failures (MTBF) | 60000 h |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| AC input voltage | 100 - 240 V |
| Power supply | 15.4 W |
| DC input voltage | 24-48/48-56 V |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Antenna diameter | 51 cm |
| Width | 370 mm |
| Depth | 370 mm |
| Height | 90 mm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|

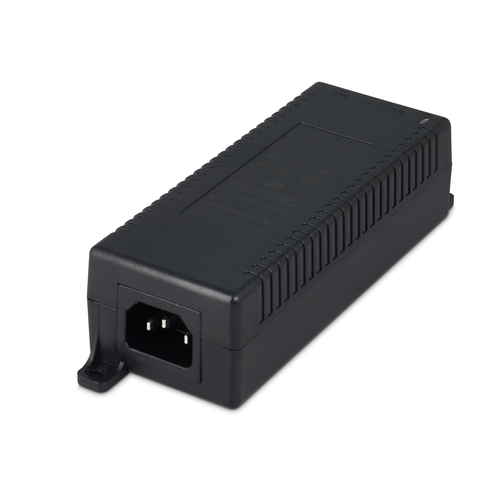

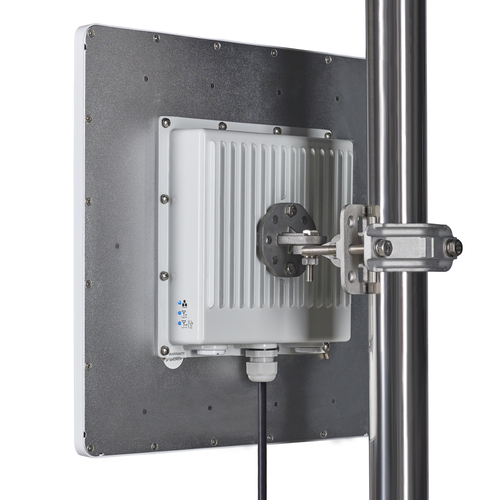

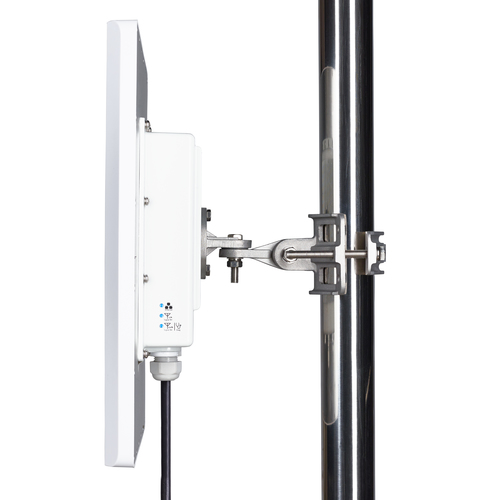

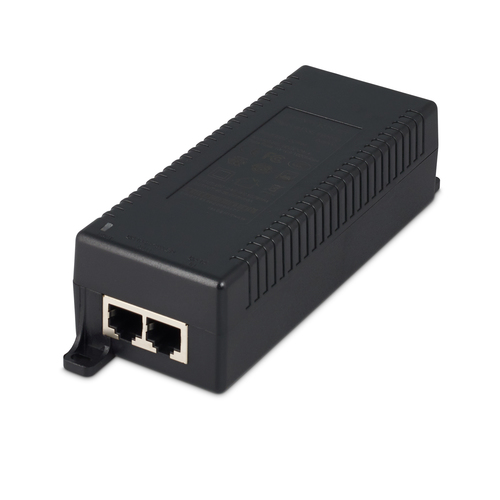

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 140 mm |
| Package height | 435 mm |
| Package type | Box |
| Package weight | 4.23 kg |
| Package width | 440 mm |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85176200 |
