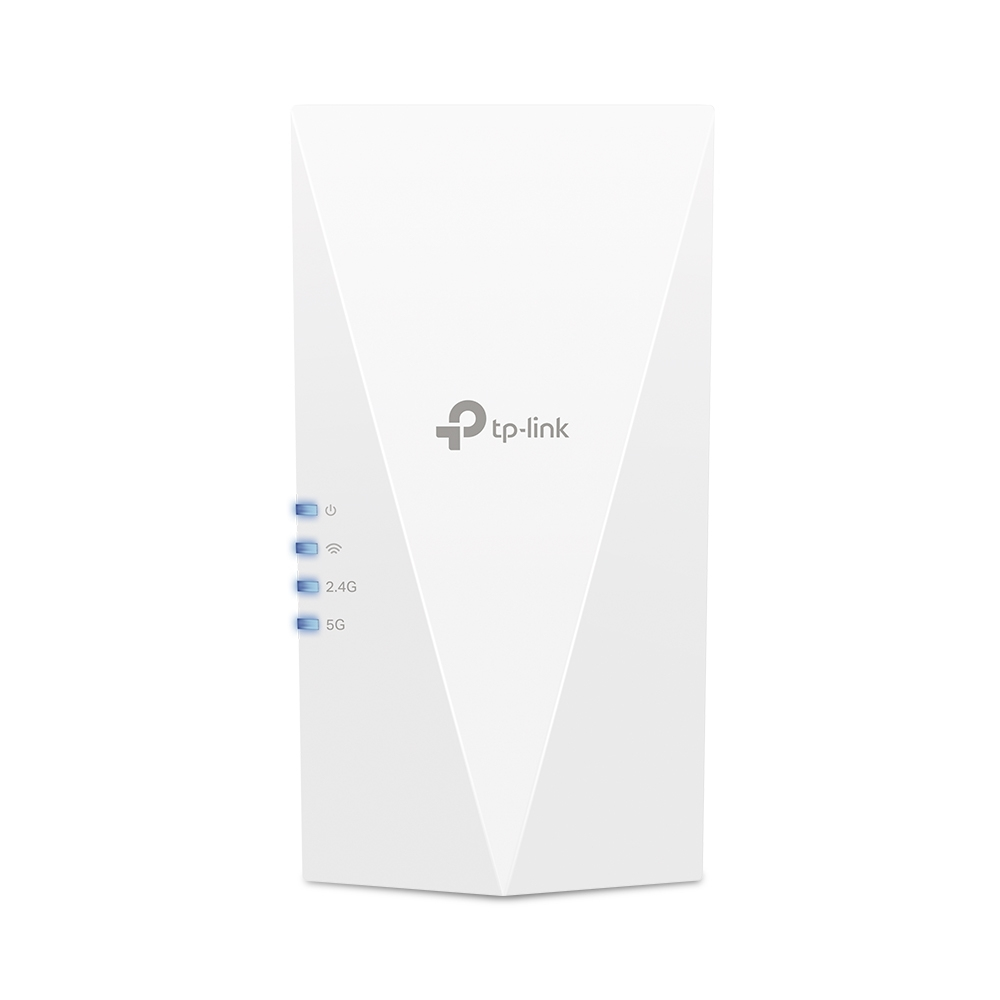

RE3000X Network repeater 2402 Mbit/s White
Model RE3000XPart no. RE3000X(DE)EAN 4897098685075
40 specifications
- Speed2402 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork repeater
- ColourWhite
- Antenna designInternal
- Wi-FiYes
Overview
- Speed
- 2402 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network repeater
- Colour
- White
- Antenna design
- Internal
- Wi-Fi
- Yes
- Brand
- TP-Link
- Category
- Bridges & Repeaters
- Model
- RE3000X
- Part number
- RE3000X(DE)
- EAN / UPC
- 4897098685075
- Also known as
- TP-Link RE3000X Network repeater 2402 Mbit/s White
Specifications
40 specifications in 13 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2402 Mbit/s |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antennas quantity | 2 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Signal strength | 21 dBm |
| Receiver sensitivity | 5GHz: 11a 6Mbps: -97dBm 11a 54Mbps: -78dBm 11ax HE20 MCS0:-97dBm 11ax HE20 MCS11:-66dBm 11ax HE40 MCS0:-94dBm 11ax HE40 MCS11:-63dBm 11ax HE80 MCS0:-91dBm 11ax HE80 MCS0:-91dBm 11ax HE80-1daxBm: 66 MCS11:-59dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11ax HE20 MCS0: -96dBm 11ax HE20 MCS11: -65dBm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2, WPA3 |
| WPS push button | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network repeater |
| Product colour | White |
| Remote control function | Yes |
| LED indicators | Yes |
| Power LED | Yes |
| Reset button | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX, Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 11.2 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 36 mm |
| Height | 149 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 125 mm |
| Package height | 97 mm |
| Package type | Box |
| Package weight | 380 g |
| Package width | 202 mm |
| Quantity per pack | 1 pc(s) |
