300N Wireless Repeater (Range Extender) with WPS I-WL-REPEATER
Model I-WL-REPEATEREAN 8057685300774
38 specifications
- Speed300 Mbit/s
- ConnectivityWireless
- Weight215 g
- ColourWhite
- Antenna type2x2
- Top Wi-Fi standardWi-Fi 4 (802.11n)
Overview
- Speed
- 300 Mbit/s
- Connectivity
- Wireless
- Weight
- 215 g
- Colour
- White
- Antenna type
- 2x2
- Top Wi-Fi standard
- Wi-Fi 4 (802.11n)
- Brand
- Techly
- Category
- Bridges & Repeaters
- Model
- I-WL-REPEATER
- Part number
- I-WL-REPEATER
- EAN / UPC
- 8057685300774
- Also known as
- Techly 300N Wireless Repeater (Range Extender) with WPS I-WL-REPEATER
Specifications
38 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Supported data transfer rates | 10/100Mbps |
Antenna
| Specification | Value |
|---|---|
| Antenna type | 2x2 |
| Antenna gain level (max) | 2 dBi |
| Antennas quantity | 2 |
Wireless LAN features
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Frequency band | 2.4 GHz |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab |
| Networking features | Bridge, Client, Repeater (Extender), Access Point (AP mode) |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| WPS push button | Yes |
Management features
| Specification | Value |
|---|---|

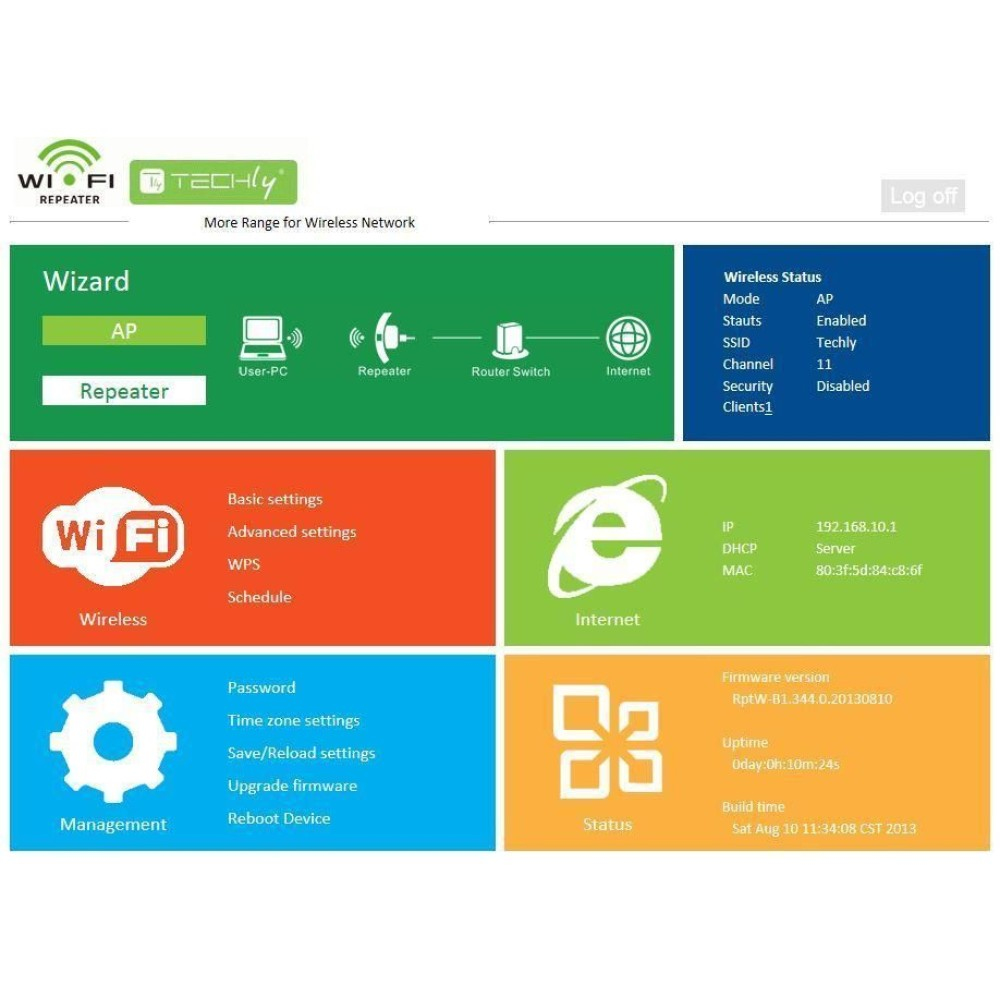

| Web-based management | Yes |
| Wireless statistics | Yes |
Features
| Specification | Value |
|---|---|
| Mounting type | Wall |
| Product colour | White |

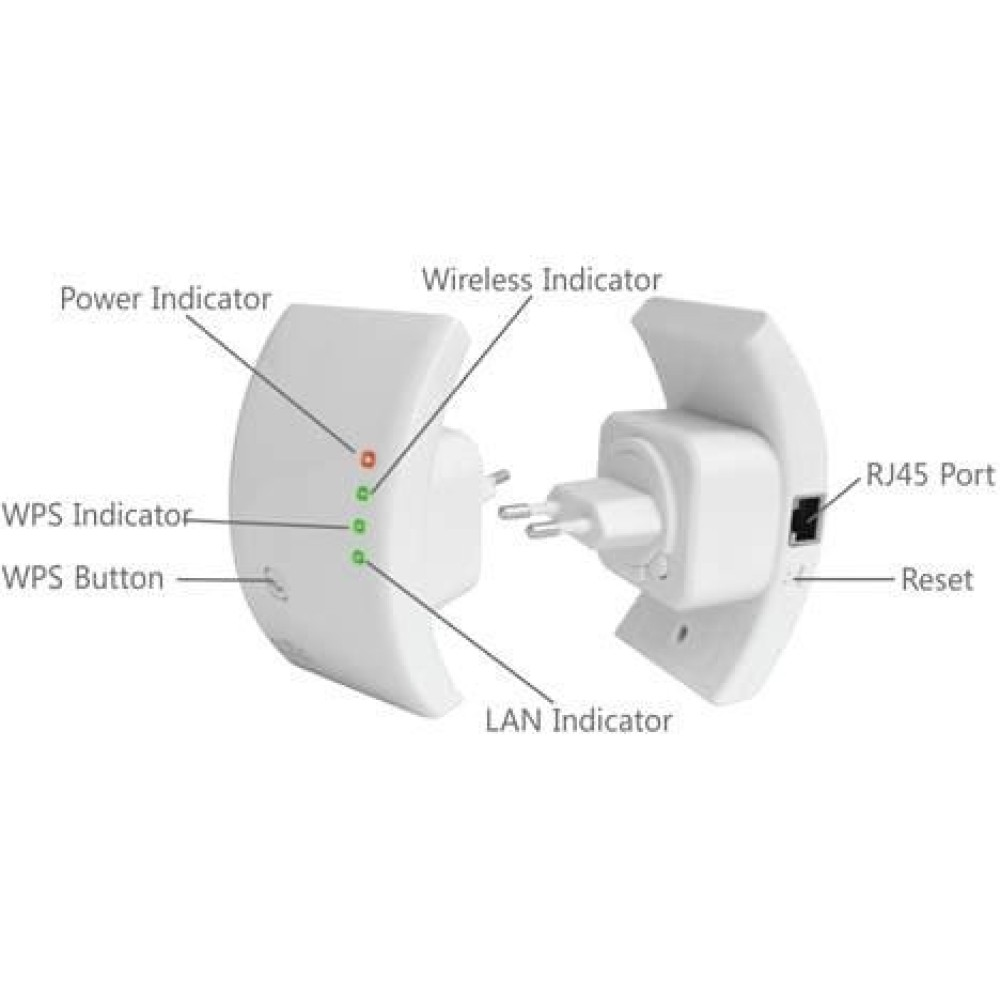

| LED indicators | LAN, Power, WLAN, WPS |
| Power LED | Yes |
| Quality of Service (QoS) support | No |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 60 x 50 x 110 mm |
| Width | 60 mm |
| Depth | 50 mm |
| Height | 110 mm |
| Weight | 215 g |
Supplier features
| Specification | Value |
|---|---|
| Vendor code | 300774 |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
