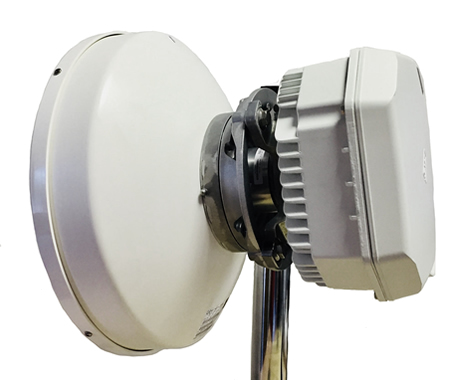

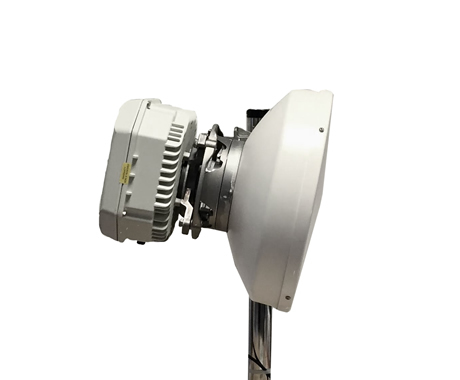

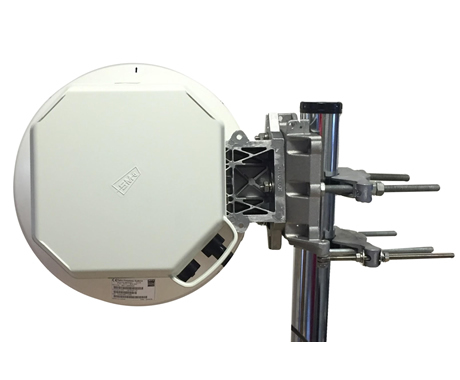

U2460-PCP Network bridge 500 Mbit/s White
Model U2460-PCPPart no. SIL U2460-PCPEAN 5060693980763
58 specifications
- Speed500 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- ColourWhite
- Antenna designExternal
- Frequency band24 GHz
Overview
- Speed
- 500 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Colour
- White
- Antenna design
- External
- Frequency band
- 24 GHz
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- U2460-PCP
- Part number
- SIL U2460-PCP
- EAN / UPC
- 5060693980763
- Also known as
- SilverNet U2460-PCP Network bridge 500 Mbit/s White
Specifications
58 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 500 Mbit/s |
| Maximum transfer distance | 10000 m |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 2 |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 24 GHz |
| Modulation | 16-QAM, 32-QAM, 64-QAM, 128-QAM, 512-QAM, 1024-QAM |
| Frequency stability | 5 ppm |
| Output power (dBm) | 4 QAM (+21) 16 QAM (+19) 32 QAM (+17) 64 QAM (+17) 128 QAM (+17) 256 QAM (+17) 512 QAM (+17) 1024 QAM (+16) |
| Receiver sensitivity | 4 QAM (-88) 16 QAM (-81) 32 QAM (-76.5) 64 QAM (-73.5) 128 QAM (-70.5) 256 QAM (-67) 512 QAM (-67.5) 1024 QAM (-60.5) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.11ad, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
| Full duplex | Yes |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| I/O ports | 2x GE electrical |
Management features
| Specification | Value |
|---|---|
| Management platform | Web GUI, In Band management, SilverView NMS |
| Web-based management | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Yes |
| Power LED | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| Real-Time Parameter Control (RTPC) | Yes |
| VoIP | Yes |
| Flow control support | Yes |
| International Protection (IP) code | IP65 |
| Link Loss Forwarding (LLF) | Yes |
| Link aggregation | No |
| Quality of Service (QoS) support | Yes |
| RMON Statistics | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 35 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -35 - 55 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | ETSI, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Antenna diameter | 60 cm |
| Width | 254 mm |
| Depth | 154 mm |
| Height | 254 mm |
Packaging content
| Specification | Value |
|---|---|
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 700 mm |
| Package height | 500 mm |
| Package type | Box |
| Package weight | 18.5 kg |
| Package width | 700 mm |
| Quantity per pack | 2 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
