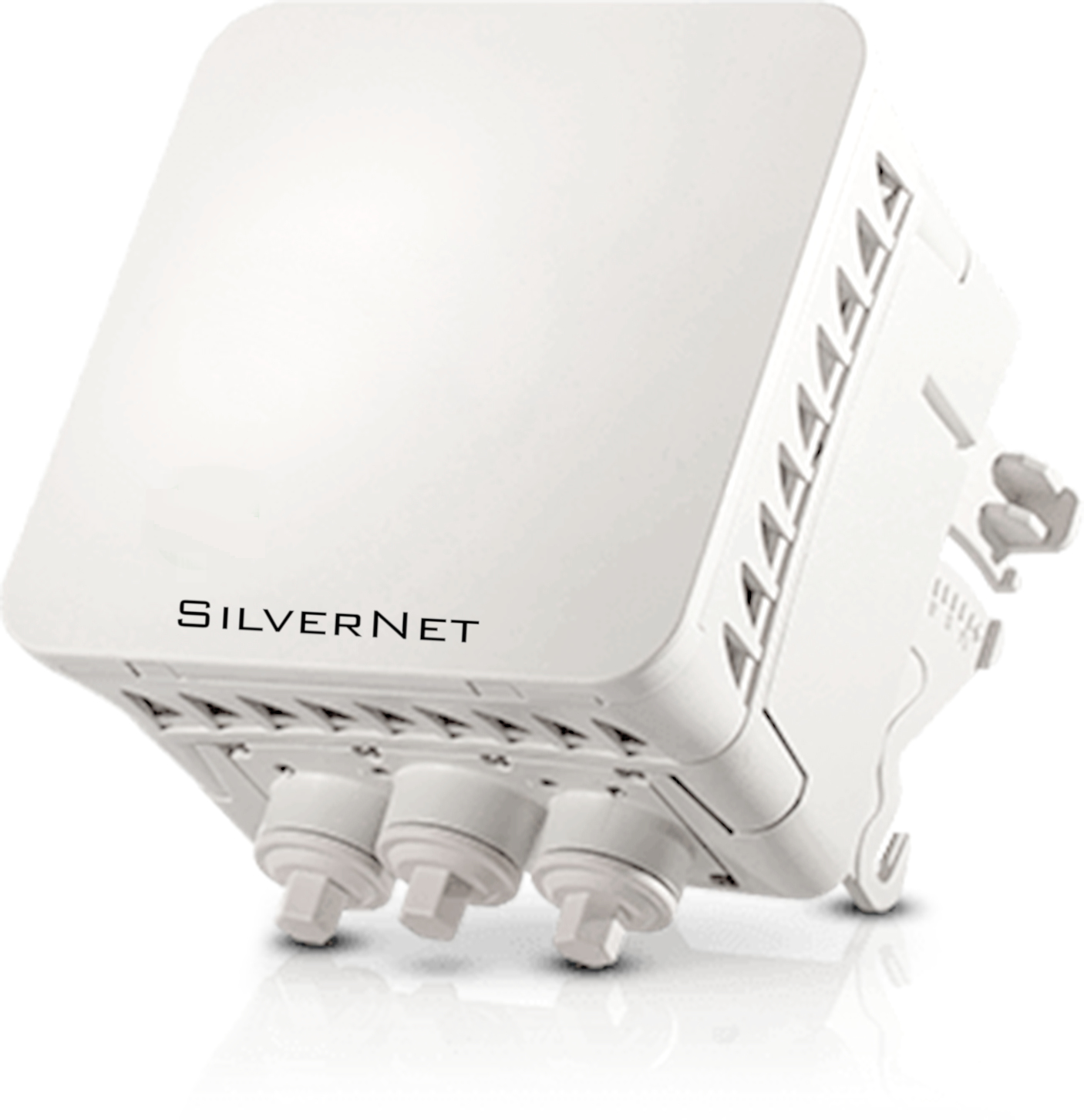

SIL TDD701G-15-PCP
Model SIL TDD701G-15-PCPEAN 5060693982361
34 specifications
- Speed1000 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- Weight1.8 kg
- Antenna gain level (max)38 dBi
- Frequency band71-76 GHz
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Weight
- 1.8 kg
- Antenna gain level (max)
- 38 dBi
- Frequency band
- 71-76 GHz
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- SIL TDD701G-15-PCP
- Part number
- SIL TDD701G-15-PCP
- EAN / UPC
- 5060693982361
- Also known as
- SilverNet SIL TDD701G-15-PCP bridge/repeater Network bridge 1000 Mbit/s
Specifications
34 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 500 m |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 38 dBi |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 71-76 GHz |
| Channels quantity | 32 channels |
| Modulation | 64-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1ag, IEEE 802.1p, IEEE 802.3ah |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic IP | Yes |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 3 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Mounting type | Wall/Pole |
| Power LED | Yes |
| International Protection (IP) code | IP67 |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -45 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 165 mm |
| Height | 165 mm |
| Weight | 1.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
