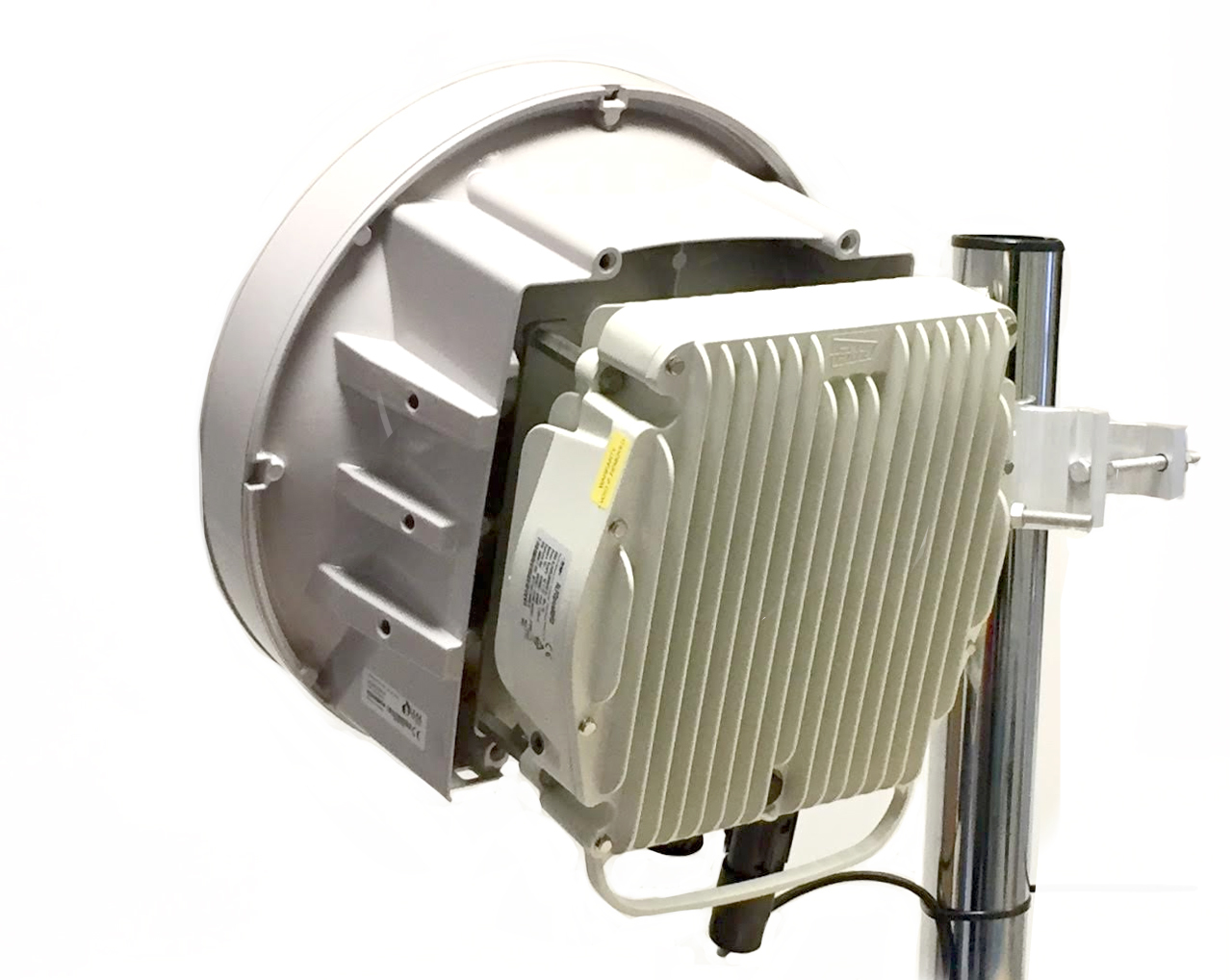

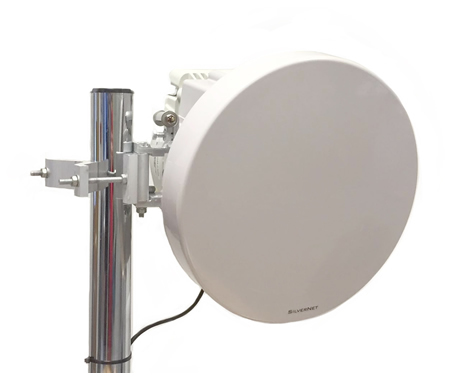

SIL SNTAplus2
Model SIL SNTAplus2Part no. SIL SNTAPLUS2EAN 5060693982330
31 specifications
- Speed2000 Mbit/s
- TypeNetwork bridge
- Weight11.5 kg
- Antenna designExternal
- Frequency band6-42 GHz
- Ethernet LANYes
Overview
- Speed
- 2000 Mbit/s
- Type
- Network bridge
- Weight
- 11.5 kg
- Antenna design
- External
- Frequency band
- 6-42 GHz
- Ethernet LAN
- Yes
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- SIL SNTAplus2
- Part number
- SIL SNTAPLUS2
- EAN / UPC
- 5060693982330
- Also known as
- SilverNet SIL SNTAplus2 Network bridge 2000 Mbit/s
Specifications
31 specifications in 8 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2000 Mbit/s |
| Supported data transfer rates | 1Gbps, 2Gbps, 4Gbps |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 6-42 GHz |
| Modulation | 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, 4096-QAM |
| Frequency stability | 5 ppm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ad |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, 256-bit AES |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Mounting type | Wall/Pole |
| Automatic Transmit Power Control (ATPC) | Yes |
| Real-Time Parameter Control (RTPC) | Yes |
| Flow control support | Yes |
| International Protection (IP) code | IP65 |
| Link aggregation | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| RMON Statistics | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 363 mm |
| Depth | 176 mm |
| Height | 252 mm |
| Weight | 11.5 kg |
Packaging content
| Specification | Value |
|---|---|
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
