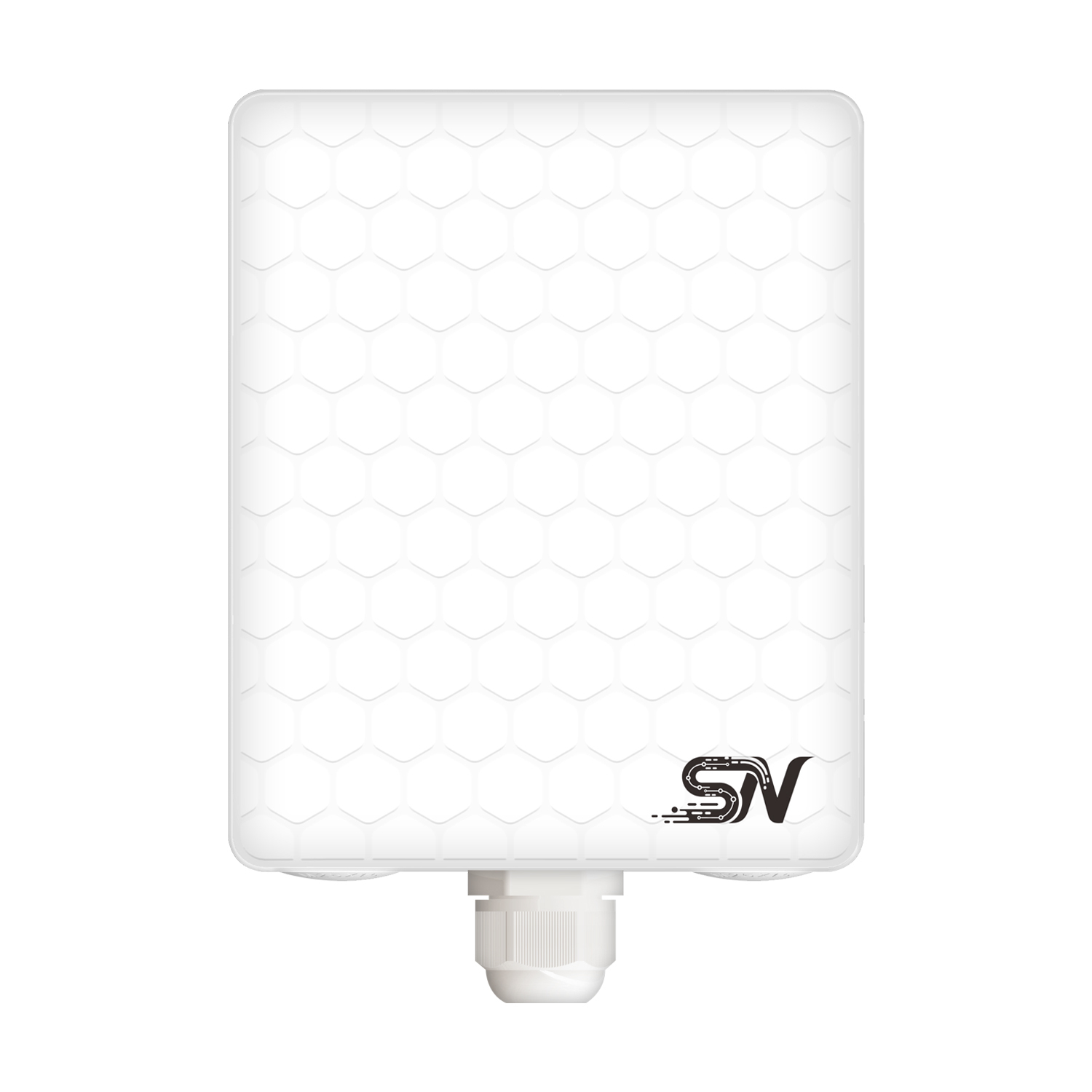

SIL-MICRO bridge/repeater Network bridge 2500 Mbit/s White
Model SIL-MICROEAN 5060693982972
63 specifications
- Speed2500 Mbit/s
- TypeNetwork bridge
- Weight765 g
- ColourWhite
- Antenna designInternal
- Wi-FiYes
Overview
- Speed
- 2500 Mbit/s
- Type
- Network bridge
- Weight
- 765 g
- Colour
- White
- Antenna design
- Internal
- Wi-Fi
- Yes
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- SIL-MICRO
- Part number
- SIL-MICRO
- EAN / UPC
- 5060693982972
- Also known as
- SilverNet SIL-MICRO bridge/repeater Network bridge 2500 Mbit/s White
Specifications
63 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Maximum transfer distance | 2000 m |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antenna type | 2x2 |
| Antenna gain level (max) | 16 dBi |
| Antennas quantity | 1 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 2500 Mbit/s |
| Frequency band | 5.150 - 6.425 GHz |
| Transmission gain | 0 - 20 dB |
| Output power (dBm) | 26 |
| Outdoor range | 2000 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11n |
| Full duplex | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

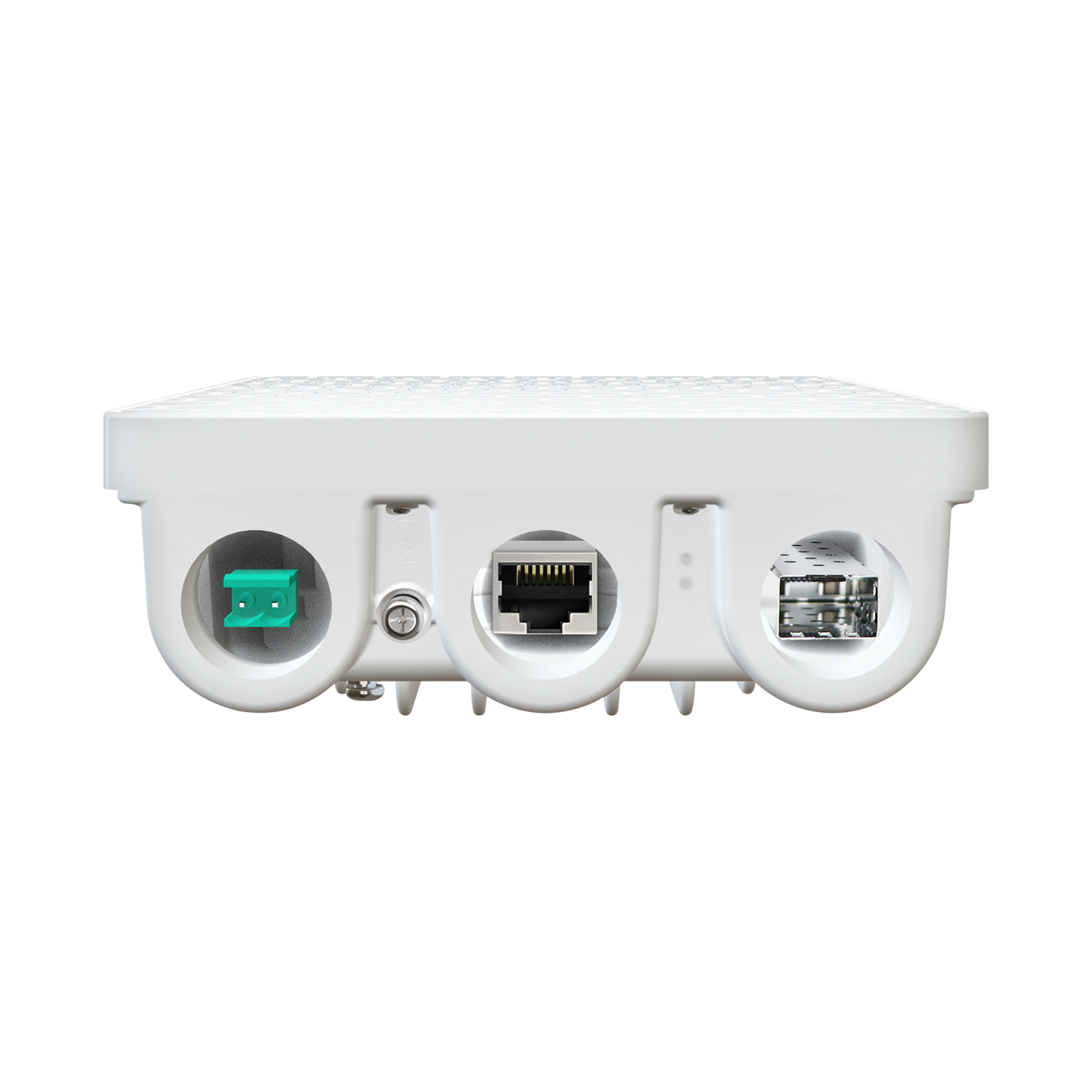

| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 256-bit AES, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| DHCP client | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |

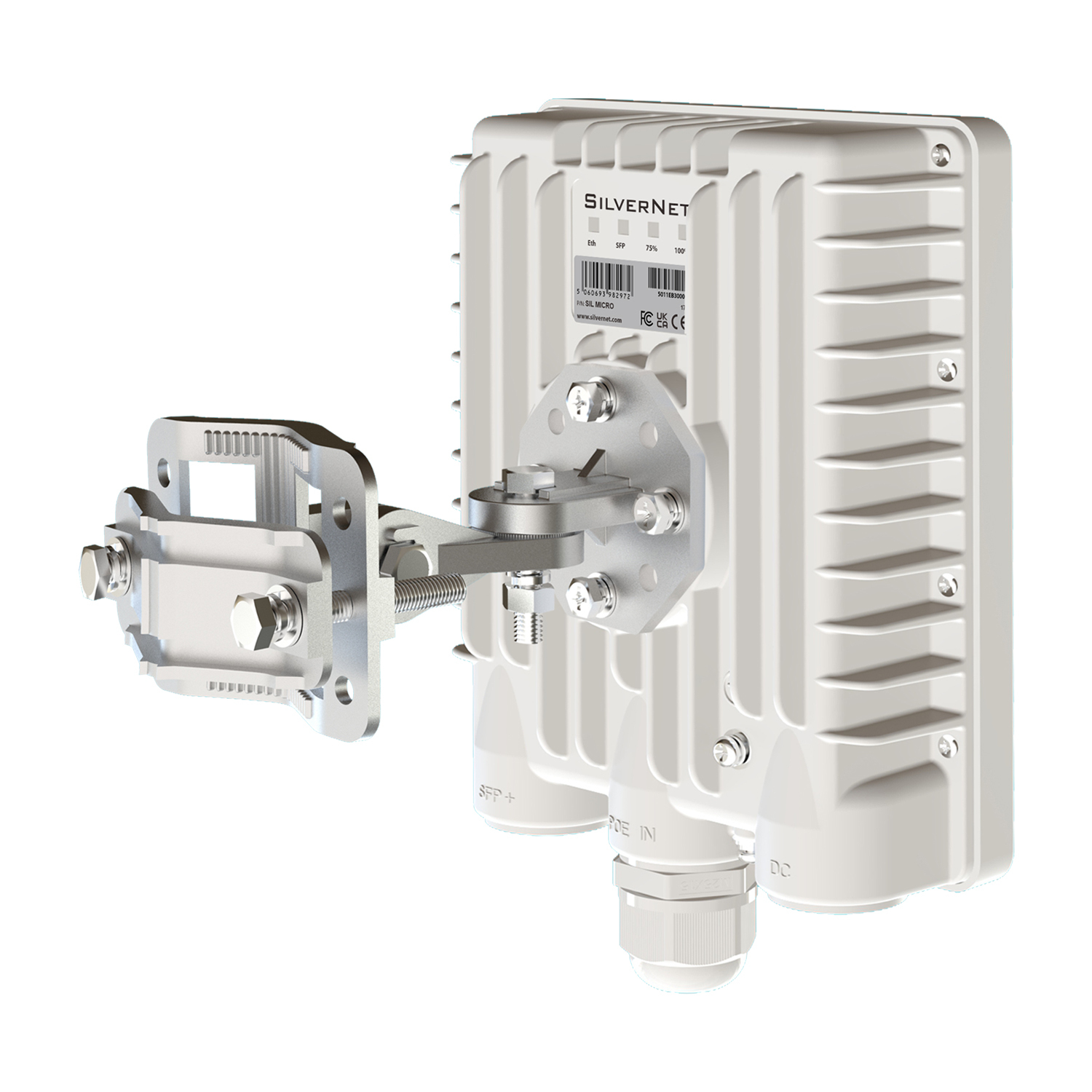

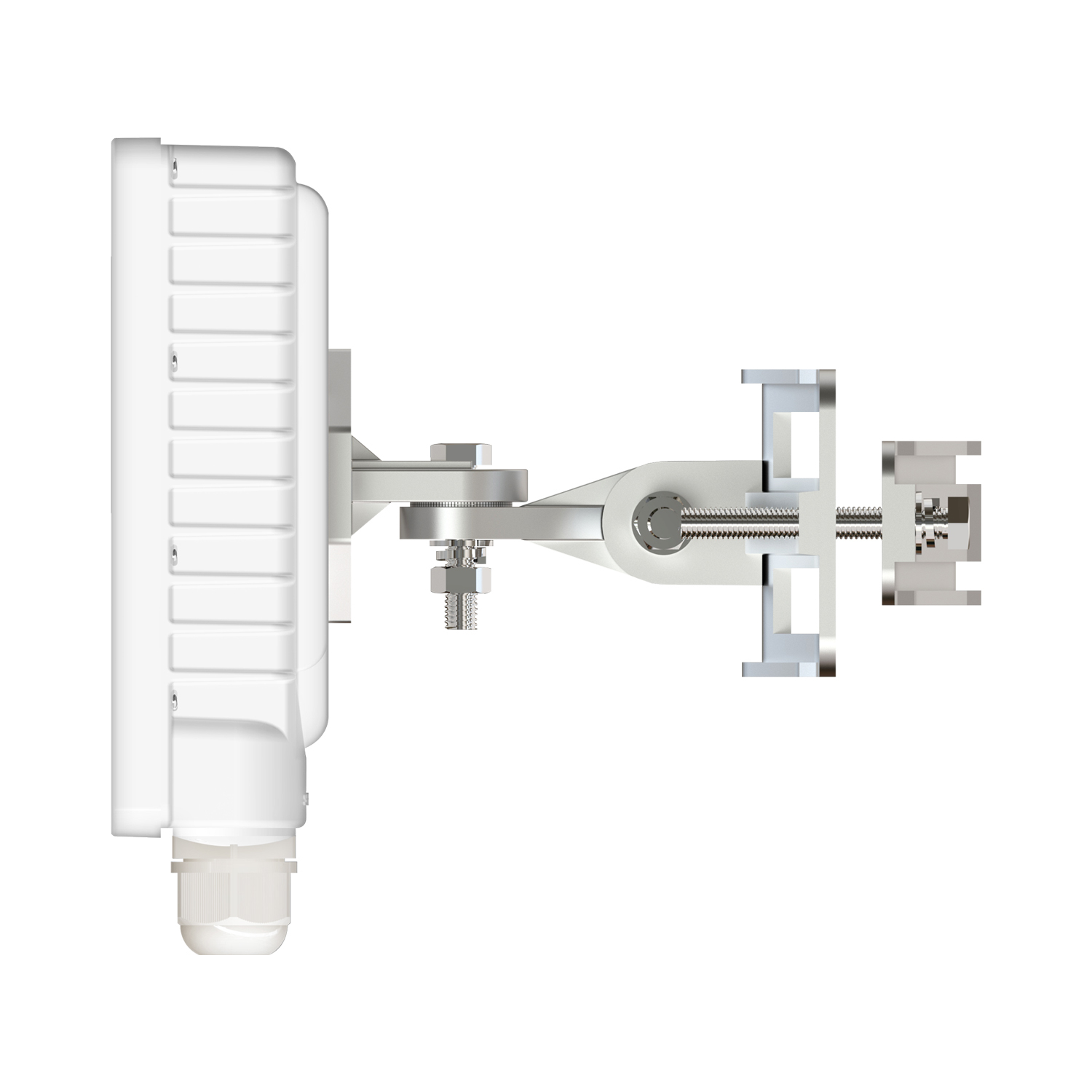

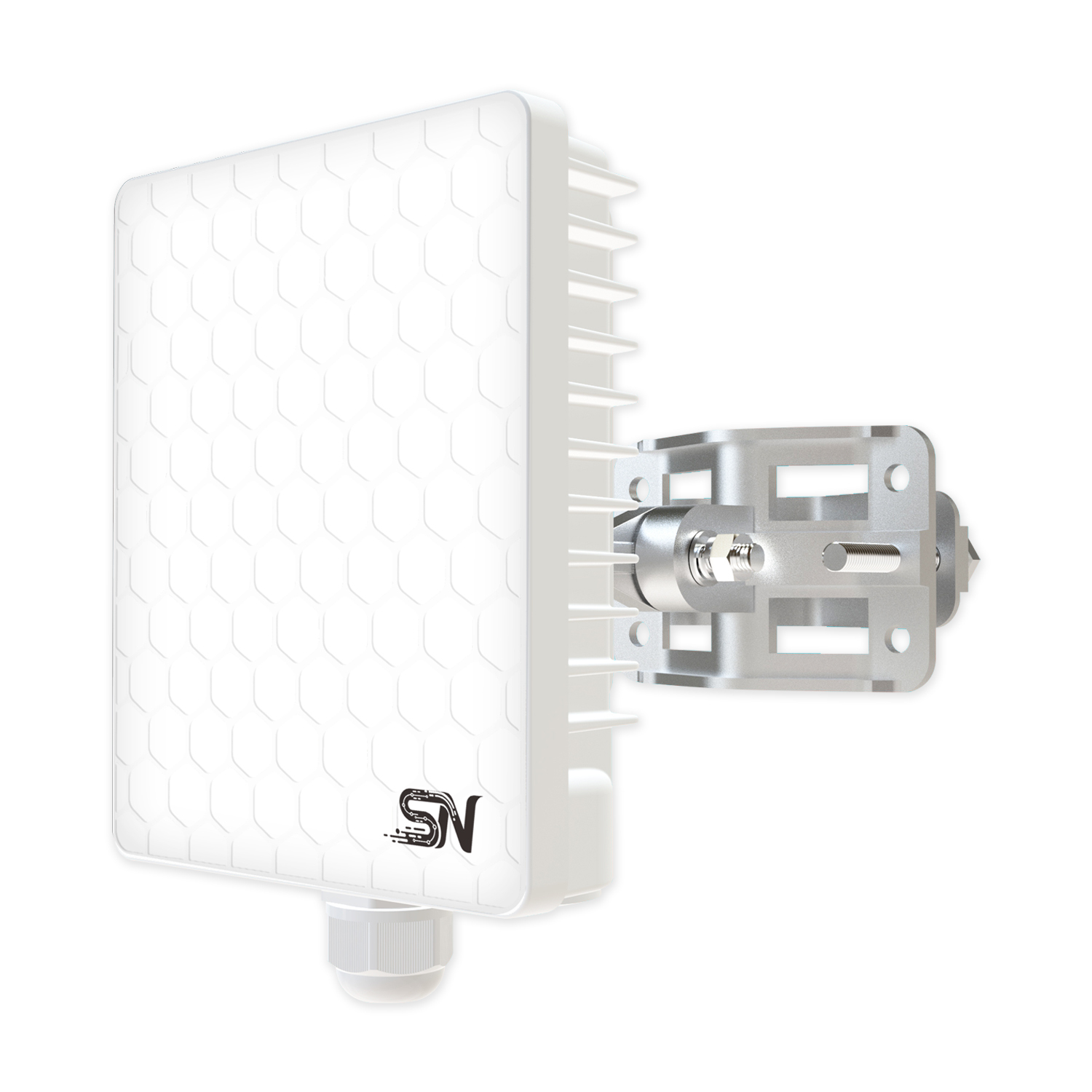

| Mounting type | Wall/Pole |
| Product colour | White |
| LED indicators | LAN, Power, Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| International Protection (IP) code | IP67 |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Surge protection | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Mean time between failures (MTBF) | 60000 h |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| AC input voltage | 100-240 V |
| Power supply | 15.4 W |
| DC input voltage | 9-56 V |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 52 mm |
| Height | 170 mm |
| Weight | 765 g |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Country of origin | United Kingdom |
