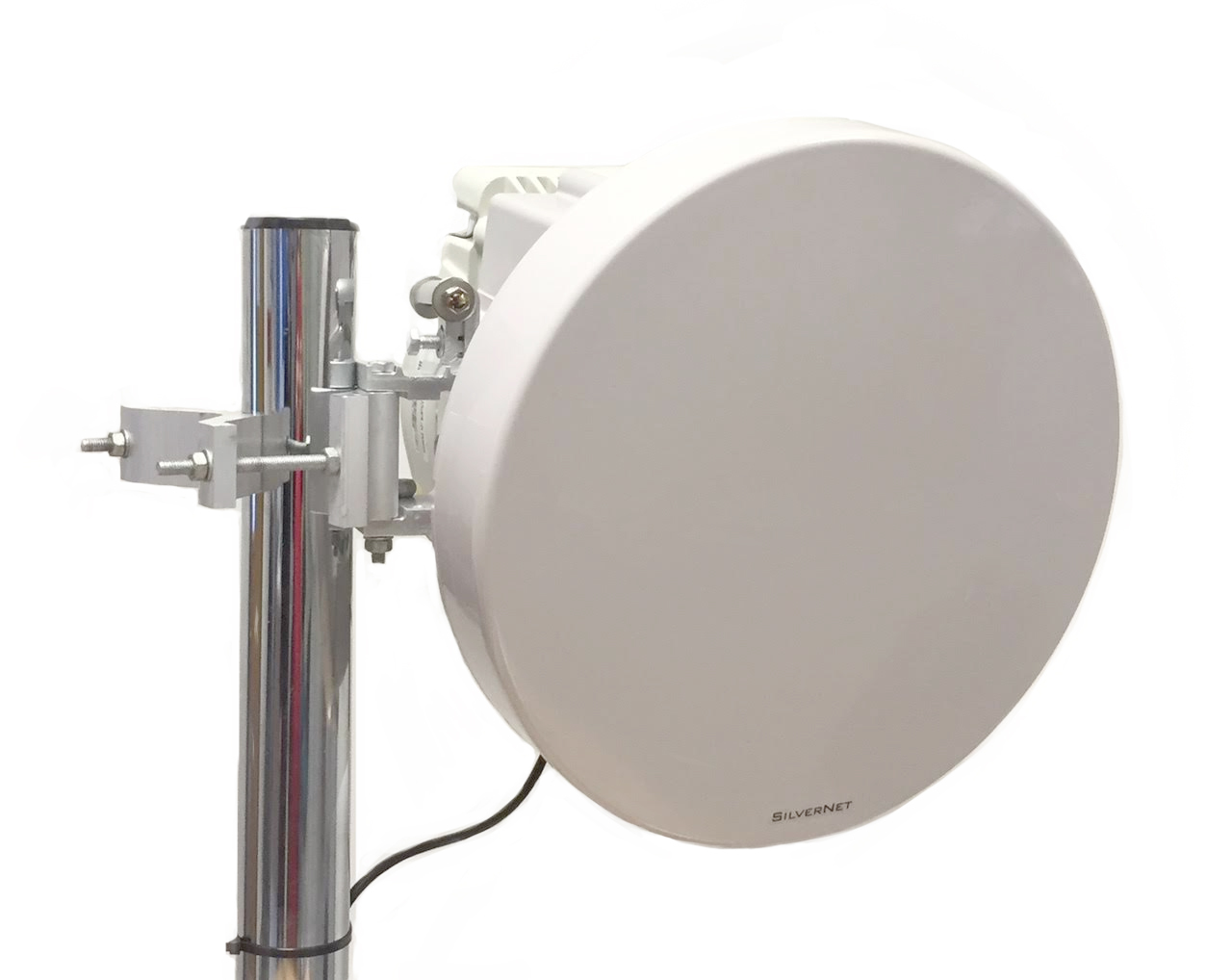

SIL FDD 8010G
Model SIL FDD 8010GEAN 5060693982200
64 specifications
- Speed10000 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- ColourWhite
- Antenna designExternal
- Frequency band80GHz (71 - 76GHz, 81 - 86GHz)
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Colour
- White
- Antenna design
- External
- Frequency band
- 80GHz (71 - 76GHz, 81 - 86GHz)
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- SIL FDD 8010G
- Part number
- SIL FDD 8010G
- EAN / UPC
- 5060693982200
- Also known as
- SilverNet SIL FDD 8010G bridge/repeater Network bridge 10000 Mbit/s White
Specifications
64 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Maximum transfer distance | 5000 m |
| Supported data transfer rates | 5Gbps, 10Gbps |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 2 |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 80GHz (71 - 76GHz, 81 - 86GHz) |
| Modulation | 8-QAM, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK |
| Frequency stability | 5 ppm |
| Output power (dBm) | See Datasheet |
| Receiver sensitivity | See Datasheet |
| Outdoor range | 2000m with 30cm Dish 5000m with 60cm Dish |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 1588v2, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Dynamic IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, 256-bit AES |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, HTTPs, SSH, SFTP, RADIUS, |
| Web-based management | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Mounting type | Wall/Pole |
| Product colour | White |
| Power LED | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| Real-Time Parameter Control (RTPC) | Yes |
| Flow control support | Yes |
| International Protection (IP) code | IP65 |
| Link Loss Forwarding (LLF) | Yes |
| Link aggregation | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| RMON Statistics | Yes |
| Surge protection | Yes |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | Web Browser, LAN Adapter |
| Compatible operating systems | Microsoft Windows, MAC OS, Linux Distributions |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power consumption (max) | 60 W |
| Power consumption (typical) | 60 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 55 V |
| Power plug type | Type G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -35 - 55 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | ETSI EN 302 217 / FCC CFR 47, Part 101 and Part 15 |
Packaging content
| Specification | Value |
|---|---|
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Quantity per pack | 2 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
