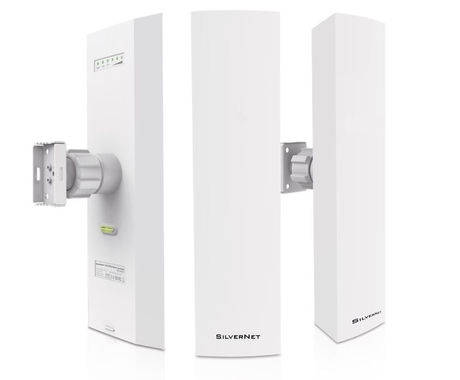

ECHO-BS 300 Mbit/s White
Model ECHO-BSPart no. SIL ECHO-BSEAN 5060693980992
41 specifications
- Speed300 Mbit/s
- Weight770 g
- ColourWhite
- Antenna designInternal
- Frequency band5 GHz
- Ethernet LANYes
Overview
- Speed
- 300 Mbit/s
- Weight
- 770 g
- Colour
- White
- Antenna design
- Internal
- Frequency band
- 5 GHz
- Ethernet LAN
- Yes
- Brand
- SilverNet
- Category
- Bridges & Repeaters
- Model
- ECHO-BS
- Part number
- SIL ECHO-BS
- EAN / UPC
- 5060693980992, 5704174161943
- Also known as
- SilverNet ECHO-BS 300 Mbit/s White
Specifications
41 specifications in 13 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antenna gain level (max) | 16 dBi |
| Antennas quantity | 1 |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 5 GHz |
| Output power (dBm) | 27 |
| Receiver sensitivity | -74dBm@300Mbps -78dBm@54Mbps -98dBm@1Mbps |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | LAN, Power, WLAN |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
| Power plug type | Type G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 395 mm |
| Depth | 100 mm |
| Height | 90 mm |
| Weight | 770 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 120 mm |
| Package height | 430 mm |
| Package weight | 1.34 kg |
| Package width | 120 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85176200 |
