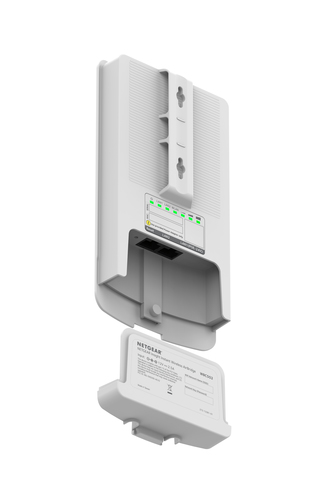

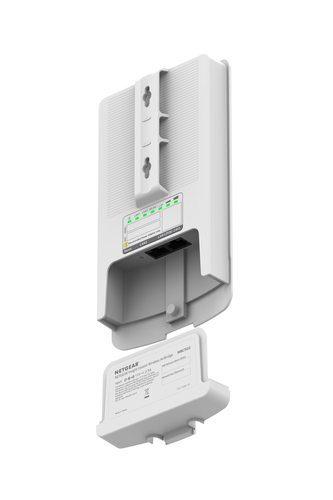

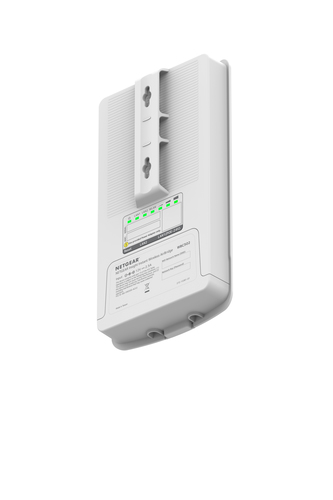

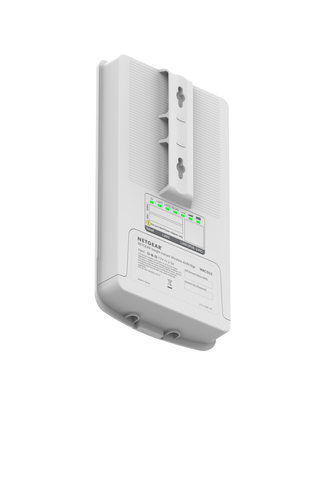

Wireless Airbridge - Pack of 2
Model Wireless Airbridge - Pack of 2Part no. WBC502B2-100UKSEAN 606449150674
39 specifications
- Speed867 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- Weight504 g
- ColourWhite
- Antenna designInternal
Overview
- Speed
- 867 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Weight
- 504 g
- Colour
- White
- Antenna design
- Internal
- Brand
- NETGEAR
- Category
- Bridges & Repeaters
- Model
- Wireless Airbridge - Pack of 2
- Part number
- WBC502B2-100UKS
- EAN / UPC
- 606449150674
- Also known as
- NETGEAR Wireless Airbridge - Pack of 2
Specifications
39 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 3000 m |
| Supported data transfer rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 to 2) |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antenna gain level (max) | 14 dBi |
| Antennas quantity | 1 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Signal strength | 23 dBm |
| Modulation | 16PSK, 64-QAM, 256-QAM, BPSK, QPSK |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Mounting type | Wall |
| Product colour | White |
| LED indicators | Power, Signal strength |
| International Protection (IP) code | IP55 |
| Reset button | Yes |
| Surge protection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 8.93 W |
| Power over Ethernet (PoE) voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -4 - 140 °F |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | 2014/30/EU |
| Certification | FCC / ISED, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 186 mm |
| Height | 29 mm |
| Weight | 504 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
