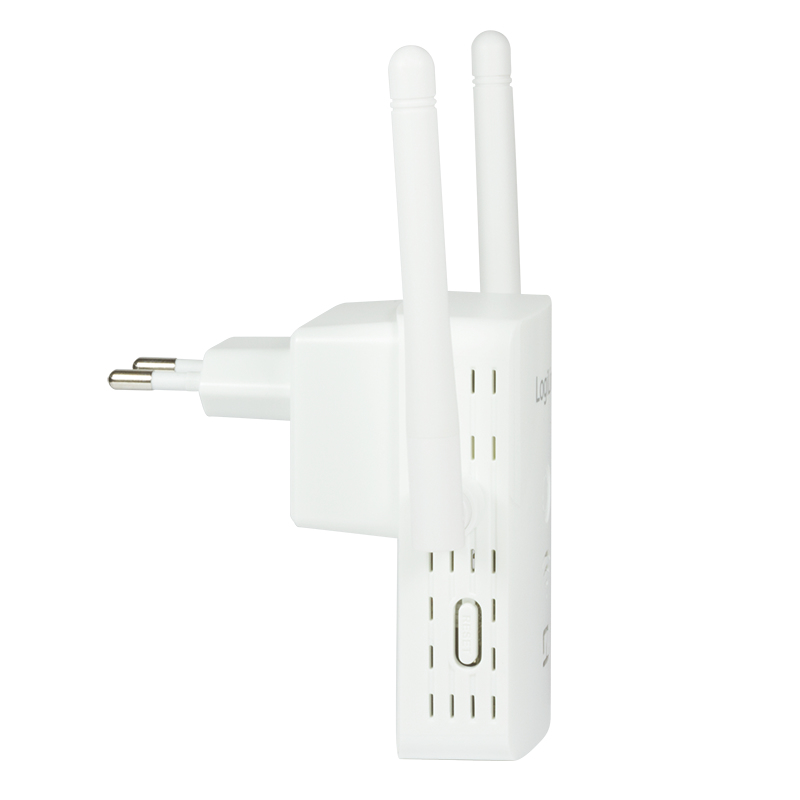

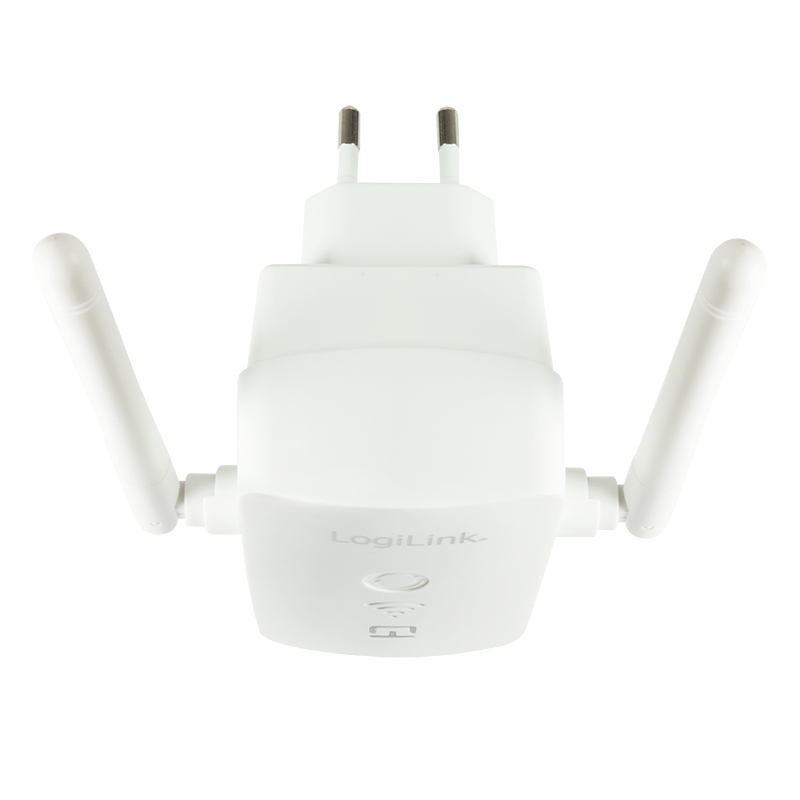

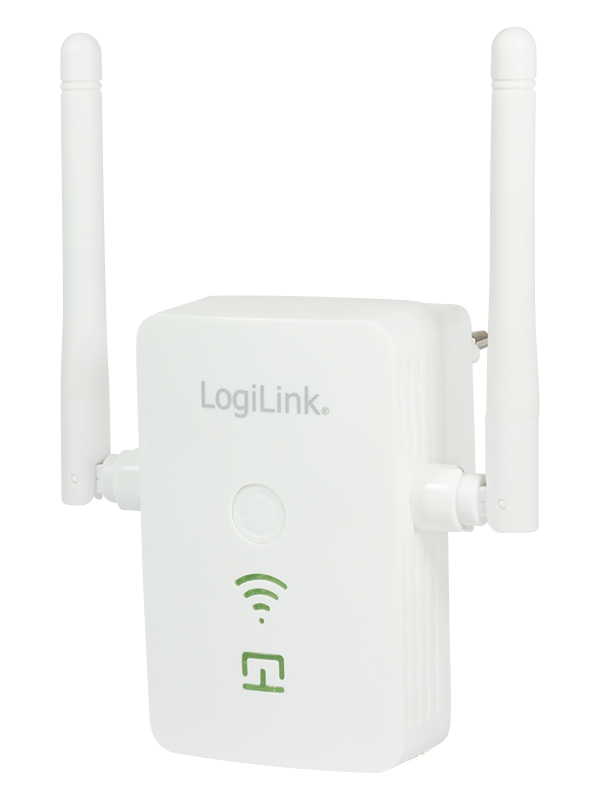

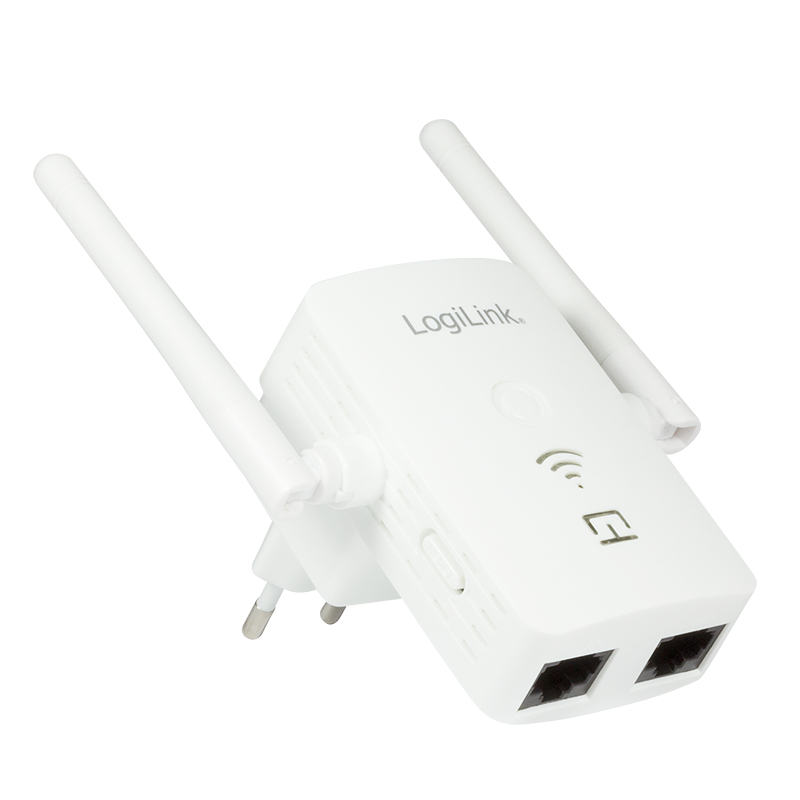

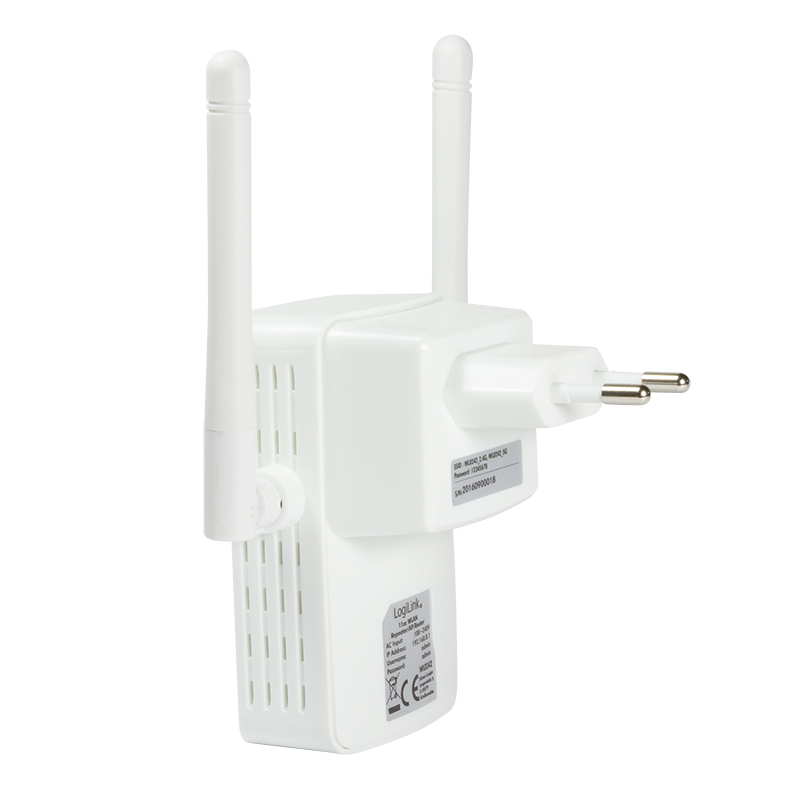

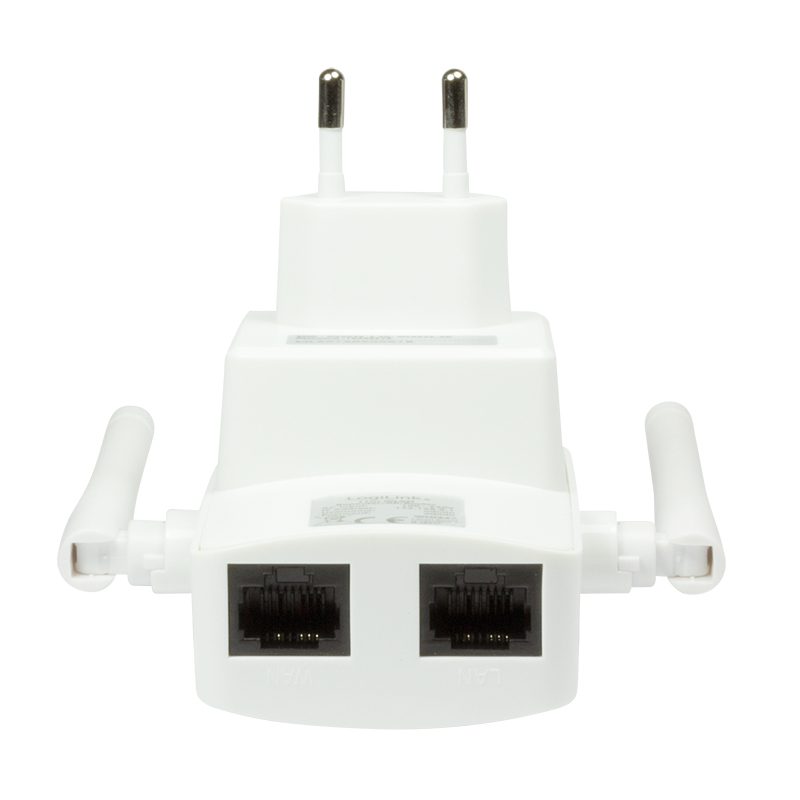

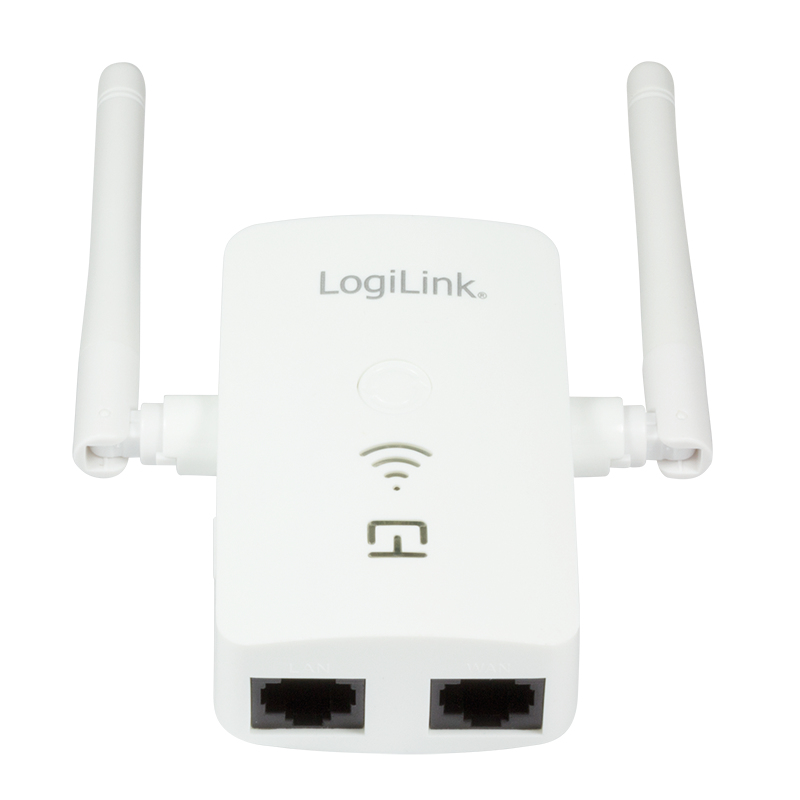

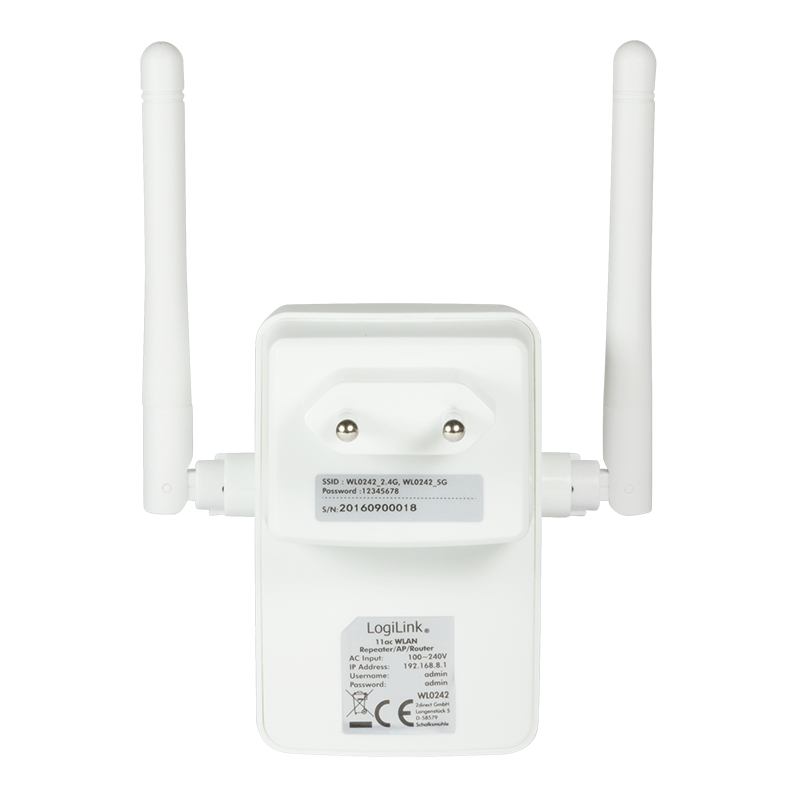

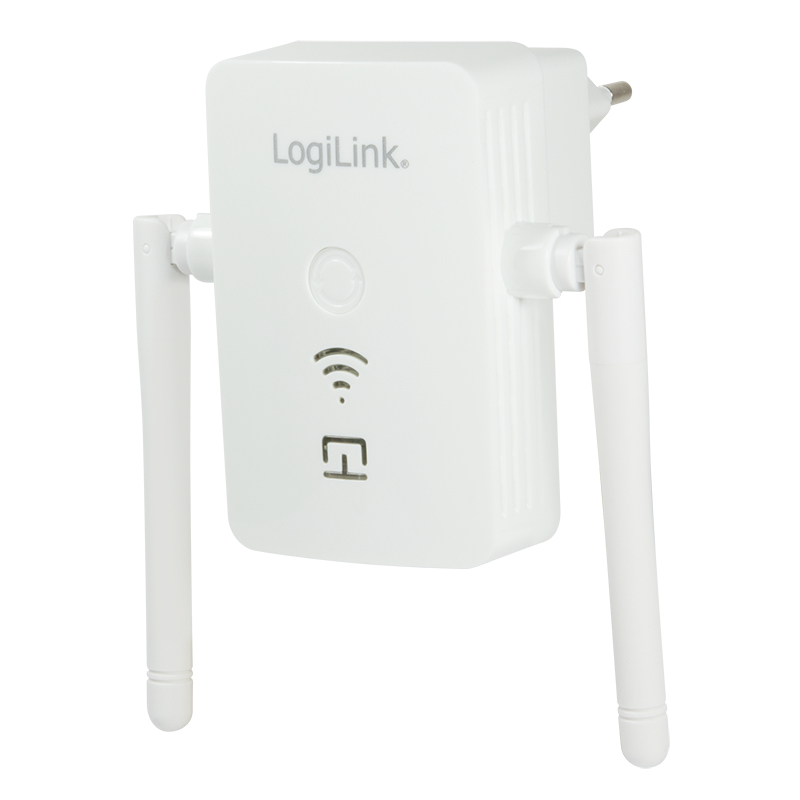

WL0242 bridge/repeater 733 Mbit/s White
Model WL0242EAN 4052792040982
19 specifications
- Speed733 Mbit/s
- ConnectivityWireless
- Weight110 g
- ColourWhite
- Frequency band2.4-2.4835, 5.15-5.825 GHz
- Ethernet LANYes
Overview
- Speed
- 733 Mbit/s
- Connectivity
- Wireless
- Weight
- 110 g
- Colour
- White
- Frequency band
- 2.4-2.4835, 5.15-5.825 GHz
- Ethernet LAN
- Yes
- Brand
- LogiLink
- Category
- Bridges & Repeaters
- Model
- WL0242
- Part number
- WL0242
- EAN / UPC
- 4052792040982
- Also known as
- LogiLink WL0242 bridge/repeater 733 Mbit/s White
Specifications
19 specifications in 9 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 733 Mbit/s |
| Supported data transfer rates | 433, 300, 54, 11 Mbit/s |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 2.4-2.4835, 5.15-5.825 GHz |
| Modulation | CCK, DBPSK, DQPSK, OFDM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| WPS push button | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 82.5 x 52.5 x 44.5 mm |
| Weight | 110 g |
