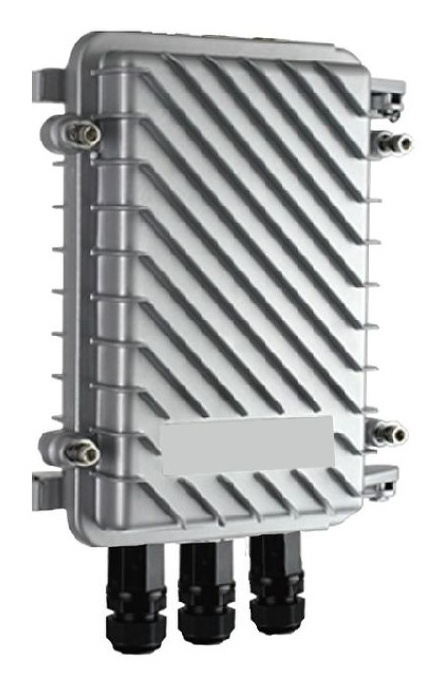

Outdoor Gigabit PoE++ Repeater, IP66, 802.3af/at/bt
Model POR-1311EAN 4015867227732
32 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- TypeNetwork repeater
- Weight1.08 kg
- ColourSilver
- Wi-FiNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Type
- Network repeater
- Weight
- 1.08 kg
- Colour
- Silver
- Wi-Fi
- No
- Brand
- LevelOne
- Category
- Bridges & Repeaters
- Model
- POR-1311
- Part number
- POR-1311
- EAN / UPC
- 4015867227732
- Also known as
- LevelOne Outdoor Gigabit PoE++ Repeater, IP66, 802.3af/at/bt
Specifications
32 specifications in 12 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 100 m |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | No |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| DC-in jack | No |
Features
| Specification | Value |
|---|---|
| Product type | Network repeater |
| Mounting type | Pole |
| Product colour | Silver |
| LED indicators | Power, PoE |
| International Protection (IP) code | IP66 |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 200 mm |
| Height | 70 mm |
| Weight | 1.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Mounting Kit |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Recommended usage | Outdoor |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
