Outdoor PTP/PTMP Bridge, Wi-Fi 6 (11ax)
2x2.5GbE , 360° , at
Model EOC655EAN 655216011281
47 specifications
- ProcessorARM Cortex
- Memory1024 MB
- Speed2500 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- Weight1.84 kg
Overview
- Processor
- ARM Cortex
- Memory
- 1024 MB
- Speed
- 2500 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Weight
- 1.84 kg
- Brand
- EnGenius
- Category
- Bridges & Repeaters
- Model
- EOC655
- Part number
- EOC655
- EAN / UPC
- 655216011281, 4711488350216
- Also known as
- EnGenius Outdoor PTP/PTMP Bridge, Wi-Fi 6 (11ax), 2x2.5GbE , 360° , at
Specifications
47 specifications in 15 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antenna connector type | N-type |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11e, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
Management features
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3 |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |

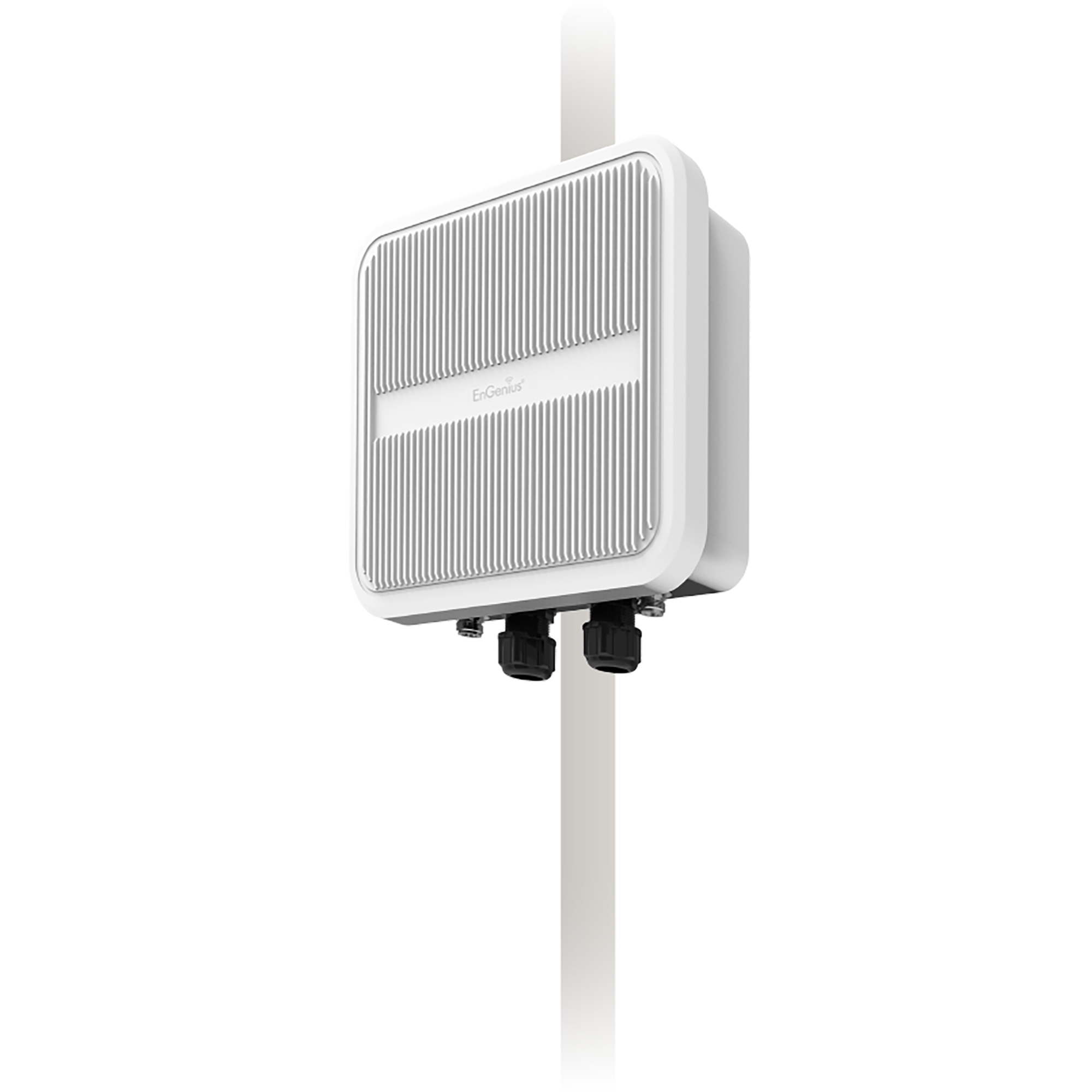

| Mounting type | Pole |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Processor family | ARM Cortex |
| Processor frequency | 1 MHz |
| Processor manufacturer | Qualcomm |
| Processor model | Cortex-A53 |
| Internal memory | 1024 MB |
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 21 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | -30 - 80 °F |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CB, RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 267 mm |
| Depth | 227 mm |
| Height | 82 mm |
| Weight | 1.84 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1 – EOC655 Outdoor Wireless 1 – PoE Injector 1 – Power Cord 1 – Pole Mount Brackets 1 – Pole Mount Strap 1 – Ethernet Cable Cat5e 1.5 mts 1 – Grounding Cable 1.8 mts |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 159 mm |
| Package height | 450 mm |
| Package weight | 3.99 kg |
| Package width | 314 mm |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 332 mm |
| Master (outer) case length | 338 mm |
| Master (outer) case height | 485 mm |
| Master (outer) case gross weight | 8.74 kg |
| Products per master (outer) case | 2 pc(s) |
