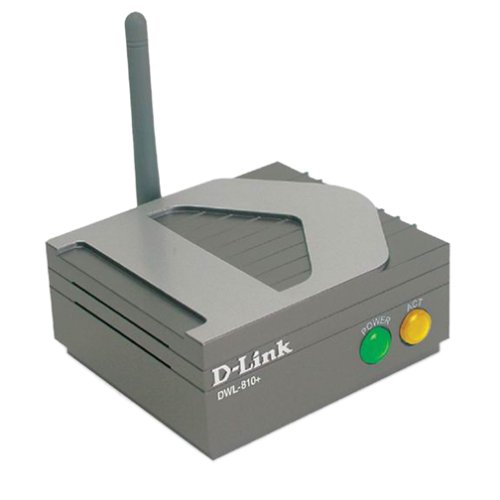

Ethernet to Wireless Client Adapter 802.11b 22Mbps
Model Ethernet to Wireless Client Adapter 802.11b 22MbpsPart no. DWL-810+/EEAN 790069250187
18 specifications
- ConnectivityWireless
- Weight153 g
- Wi-FiYes
- Data link protocolsEthernet, Fast Ethernet
- LED indicatorsPower
- Operating temperature (T-T)0 - 55 °C
Overview
- Connectivity
- Wireless
- Weight
- 153 g
- Wi-Fi
- Yes
- Data link protocols
- Ethernet, Fast Ethernet
- LED indicators
- Power
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- D-Link
- Category
- Bridges & Repeaters
- Model
- Ethernet to Wireless Client Adapter 802.11b 22Mbps
- Part number
- DWL-810+/E
- EAN / UPC
- 790069250187
- Also known as
- D-Link Ethernet to Wireless Client Adapter 802.11b 22Mbps
Specifications
18 specifications in 9 groups
Antenna
| Specification | Value |
|---|---|
| Antenna design | 2dBi Gain detachable external dipole antenna |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Indoor range | 100 m |
| Outdoor range | 400m |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| I/O ports | 10/100 Ethernet port (Auto MDI/MDIX) |
Management features
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Features
| Specification | Value |
|---|---|
| LED indicators | Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -25 - 75 °C |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic emissions | FCC Part 15b (Class B), CE Class B, C-Tick, BSMI Class B, R&TTE |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 82 x 90 x 40 mm |
| Weight | 153 g |
