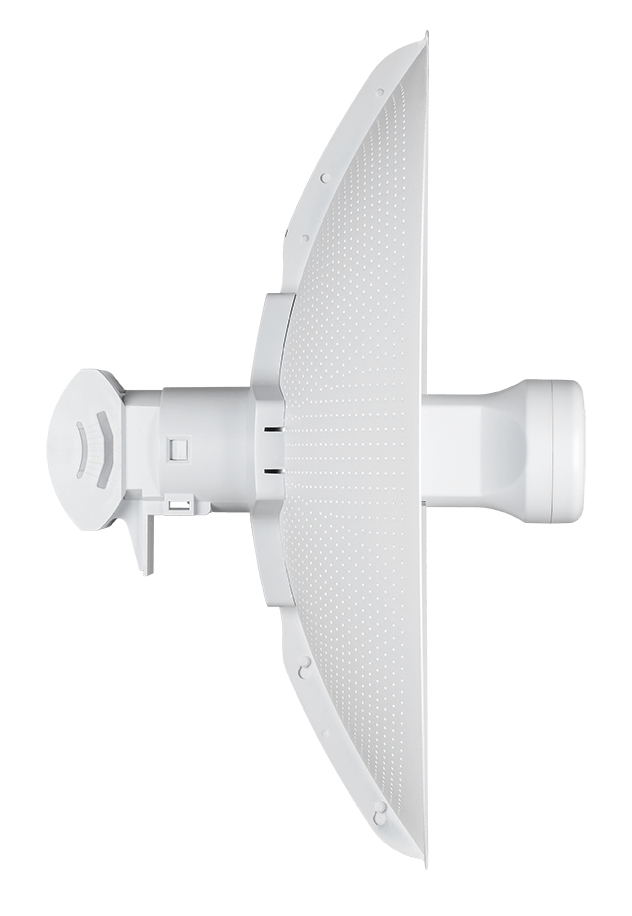

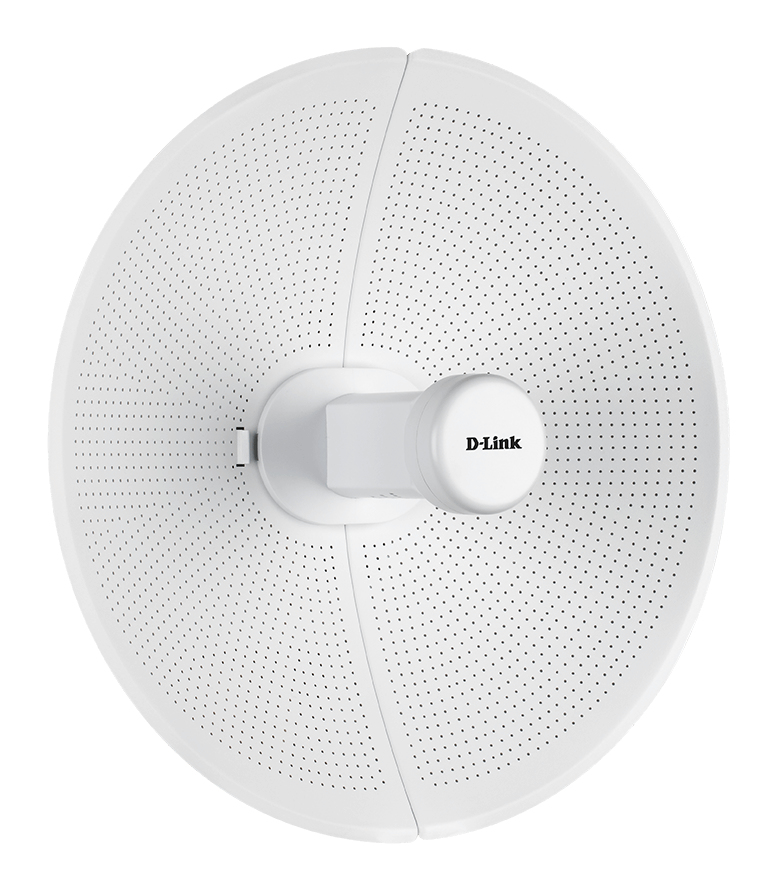

20km Long Range Wireless AC Bridge
Model DAP-3712EAN 790069457289
49 specifications
- Speed867 Mbit/s
- ConnectivityWired & Wireless
- TypeNetwork bridge
- Weight900 g
- ColourWhite
- Antenna designExternal
Overview
- Speed
- 867 Mbit/s
- Connectivity
- Wired & Wireless
- Type
- Network bridge
- Weight
- 900 g
- Colour
- White
- Antenna design
- External
- Brand
- D-Link
- Category
- Bridges & Repeaters
- Model
- DAP-3712
- Part number
- DAP-3712
- EAN / UPC
- 790069457289, 790069461538, 7900694572896
- Also known as
- D-Link 20km Long Range Wireless AC Bridge
Specifications
49 specifications in 14 groups
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 20000 m |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antenna gain level (max) | 23 dBi |
| Antennas quantity | 1 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Frequency band | 5.180 - 5.825 GHz |
| Signal strength | 27 dBm |
| Channels quantity | 2 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Static IP | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit AES |
| MAC address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| DHCP client | Yes |
Features
| Specification | Value |
|---|---|
| Product type | Network bridge |
| Material | Acrylonitrile butadiene styrene (ABS) |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| Surge protection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 15 W |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 372 mm |
| Depth | 241 mm |
| Height | 372 mm |
| Weight | 900 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
