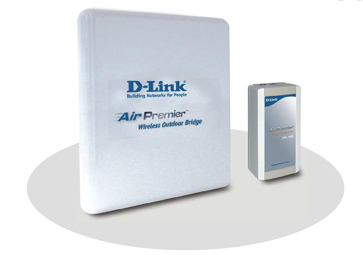

Bridge ENet Wless 11Mbps Remote station
Model Bridge ENet Wless 11Mbps Remote stationPart no. DWL-1800R
10 specifications
- ConnectivityRJ-45
- Frequency band2.4-2.4835 GHz
- Ethernet LANYes
- Data link protocolsIEEE 802.11b HR
- Operating temperature (T-T)-40 - 55 °C
- Dimensions (WxDxH)300 x 72 x 300 mm
Overview
- Connectivity
- RJ-45
- Frequency band
- 2.4-2.4835 GHz
- Ethernet LAN
- Yes
- Data link protocols
- IEEE 802.11b HR
- Operating temperature (T-T)
- -40 - 55 °C
- Dimensions (WxDxH)
- 300 x 72 x 300 mm
- Brand
- D-Link
- Category
- Bridges & Repeaters
- Model
- Bridge ENet Wless 11Mbps Remote station
- Part number
- DWL-1800R
- Also known as
- D-Link Bridge ENet Wless 11Mbps Remote station
Specifications
10 specifications in 7 groups
Antenna
| Specification | Value |
|---|---|
| Antenna design | Flat Panel 16dBi, 20° Vertical/Horizontal |
Wireless LAN features
| Specification | Value |
|---|---|
| Frequency band | 2.4-2.4835 GHz |
| Outdoor range | • Europe/ETSI (20dBm EIRP): up to 10km • US FCC: up to 25km |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | RJ-45 |
Management features
| Specification | Value |
|---|---|
| Management protocols | SNMP based enhanced Windows platform configuration utility |
| Data link protocols | IEEE 802.11b HR |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 300 x 72 x 300 mm |
