308P MkII
Model 308P MkIIPart no. LSR 308P MKIIEAN 691991007729
25 specifications
- Weight8.1 kg
- Frequency range37 - 24000 Hz
- Built-in speaker(s)Yes
- Built-in displayNo
- AC input voltage100 - 240 V
- Width254 mm
Overview
- Weight
- 8.1 kg
- Frequency range
- 37 - 24000 Hz
- Built-in speaker(s)
- Yes
- Built-in display
- No
- AC input voltage
- 100 - 240 V
- Width
- 254 mm
- Brand
- JBL
- Category
- Audio Monitor
- Model
- 308P MkII
- Part number
- LSR 308P MKII
- EAN / UPC
- 691991007729, 691991035715
- Also known as
- JBL 308P MkII
Specifications
25 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Frequency range | 37 - 24000 Hz |
Loudspeakers
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Number of drivers | 2 |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Woofer diameter (imperial) | 20.3 cm (8") |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

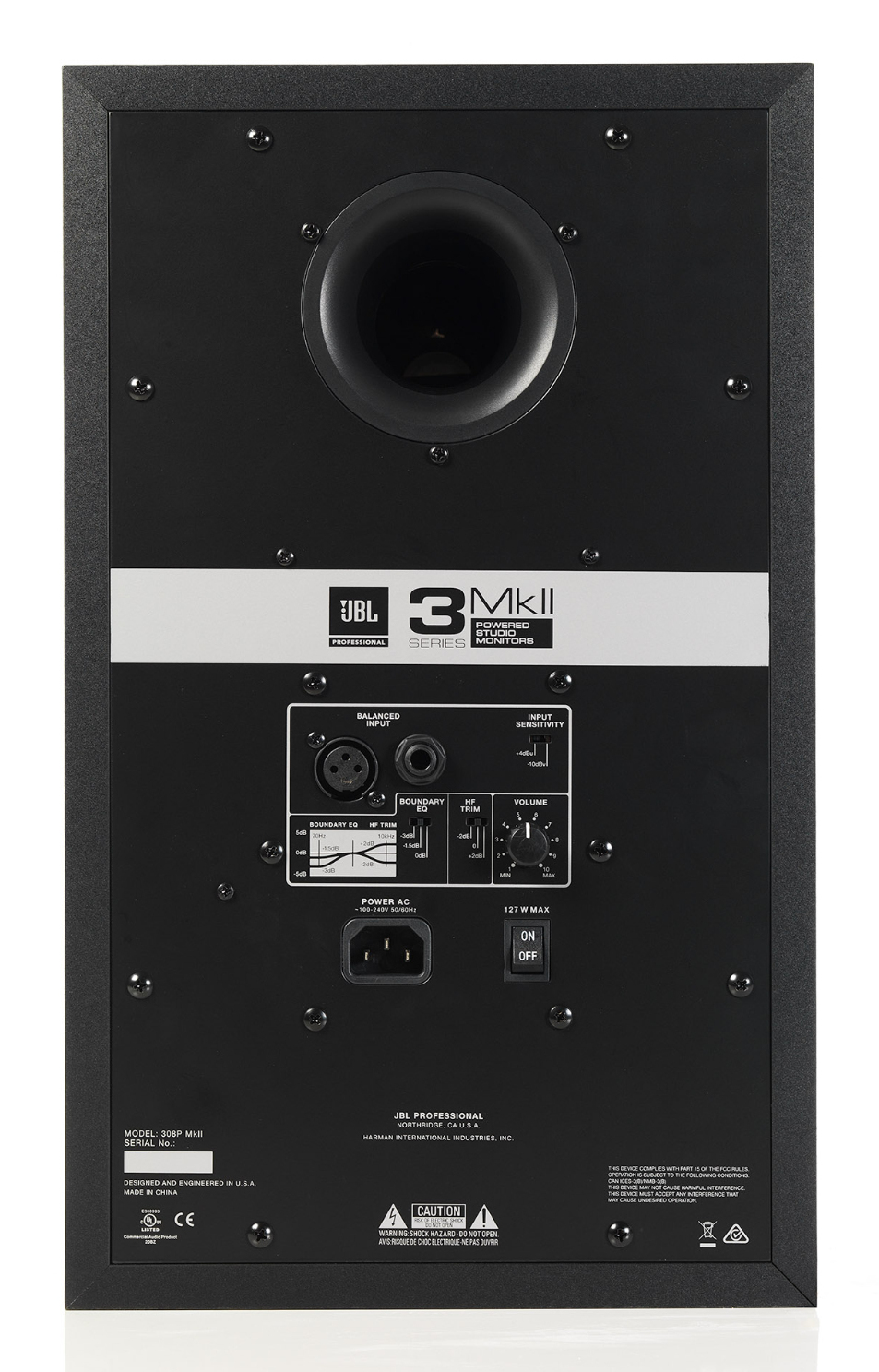

Ports & interfaces
| Specification | Value |
|---|---|
| XLR in | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Housing material | Acrylonitrile butadiene styrene (ABS), MDF, Polyvinyl chloride (PVC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 254 mm |
| Depth | 308 mm |
| Height | 419 mm |
| Weight | 8.1 kg |
| Package depth | 358 mm |
| Package height | 491 mm |
| Package weight | 9.4 kg |
| Package width | 326 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rubber feet | Yes |
| Manual | Yes |
