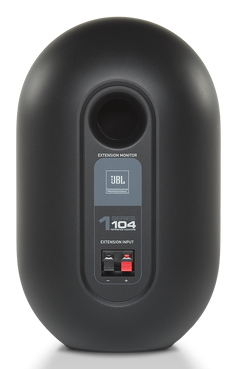

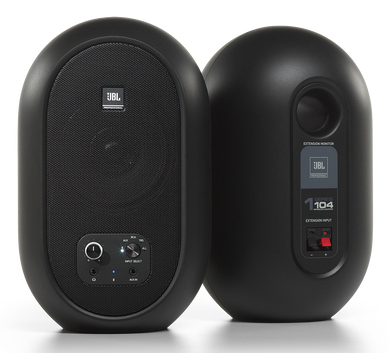

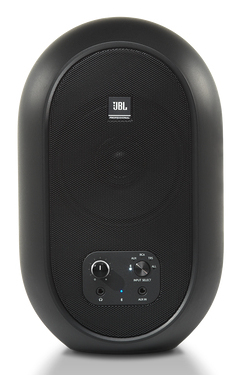

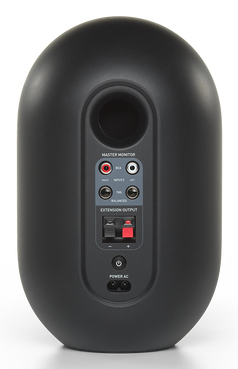

104-BT Black
Model 104-BTPart no. 104SET-BT-EKEAN 691991033728
41 specifications
- Weight3.79 kg
- ColourBlack
- Line-out Total Harmonic Distortion plus Noise (THD+N) (1kHz)10%
- Built-in speaker(s)Yes
- Built-in displayNo
- Line inputs (RCA)1
Overview
- Weight
- 3.79 kg
- Colour
- Black
- Line-out Total Harmonic Distortion plus Noise (THD+N) (1kHz)
- 10%
- Built-in speaker(s)
- Yes
- Built-in display
- No
- Line inputs (RCA)
- 1
- Brand
- JBL
- Category
- Audio Monitor
- Model
- 104-BT
- Part numbers
- 104SET-BT-EK, 104SET-BTW-EK
- EAN / UPC
- 691991033728, 691991016820, 691991033711
- Also known as
- JBL 104-BT Black
Specifications
41 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Line-out Total Harmonic Distortion plus Noise (THD+N) (1kHz) | 10% |
| Line-in Total Harmonic Distortion (THD) | 1% |
| Line-out Total Harmonic Distortion (THD) | 0.2% |
| Frequency range | 60 - 20000 Hz |
| Sensitivity | 87 dB |
| Line-in balanced impedance | 8 Ω |
Loudspeakers
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 60 W |
| Number of drivers | 4 |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter (imperial) | 1.91 cm (0.75") |
| Woofer diameter (imperial) | 11.4 cm (4.5") |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Audio input | Bluetooth, 1/8" Aux, RCA, 1/4" TRS balanced |
| Audio output | 1/8" stereo headphone with auto speaker mute |
| Line inputs (RCA) | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| AC (power) in | Yes |
| Bluetooth version | 5.0 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 85 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal |
| LED indicators | Yes |
| On/off switch | Yes |
| Volume control | Rotary |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 153 mm |
| Depth | 153 mm |
| Height | 247 mm |
| Weight | 3.79 kg |
| Package depth | 300 mm |
| Package height | 335 mm |
| Package weight | 4.8 kg |
| Package width | 205 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, RCA |
| Manual | Yes |
