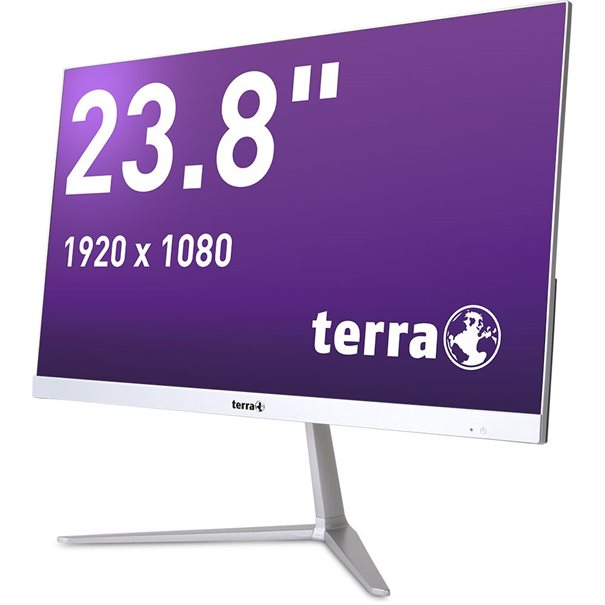

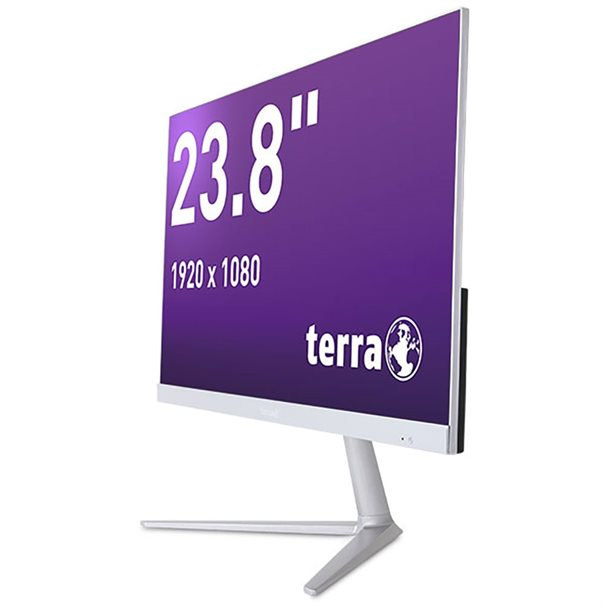

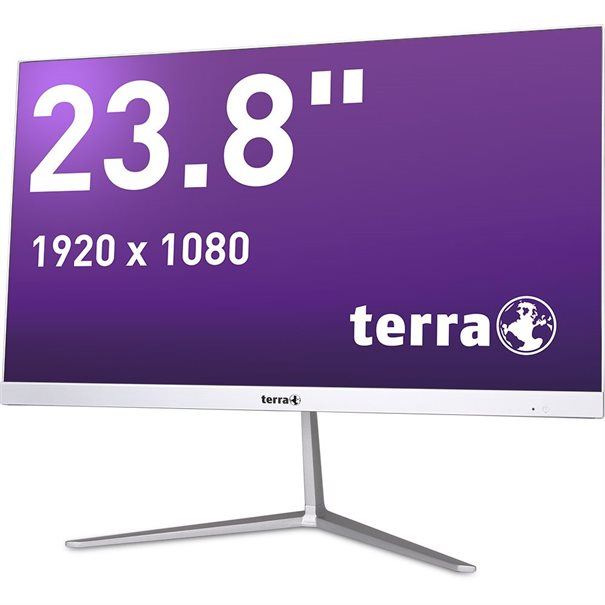

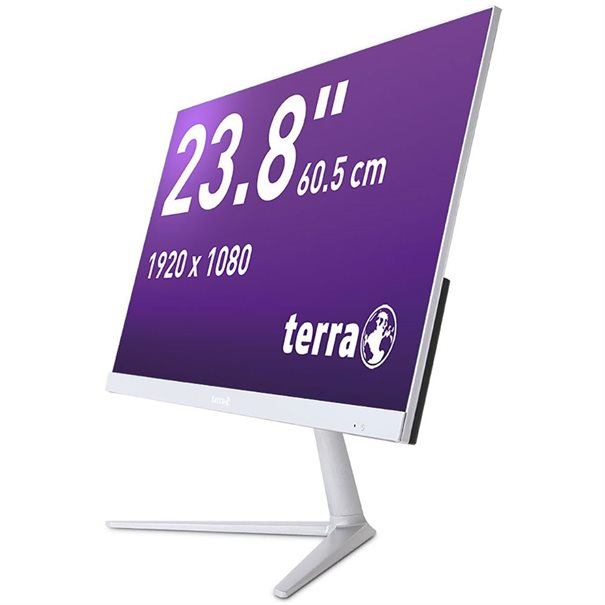

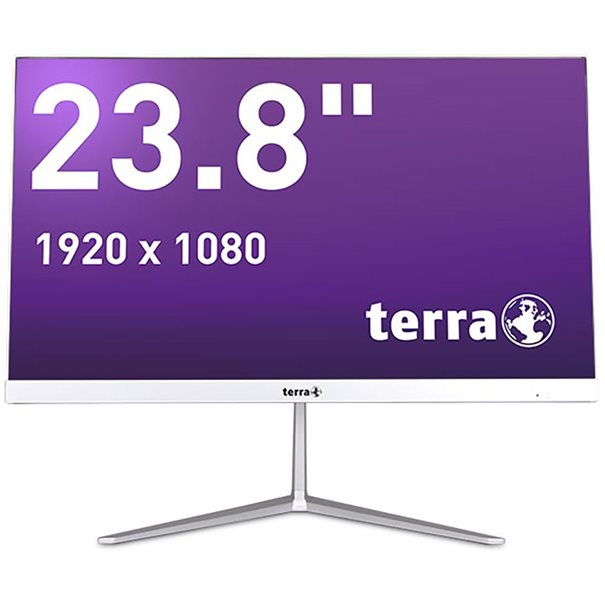

Terra All-In-One-PC 2400 Greenline

Model Terra All-In-One-PC 2400 GreenlinePart no. 1001309EAN 4039407057733

115 specifications

Overview

Brand: TERRA
Category: All-in-One PCs/Workstations
Model: Terra All-In-One-PC 2400 Greenline
Part number: 1001309
EAN / UPC: 4039407057733
Also known as: TERRA All-In-One-PC 2400 Greenline Intel® Core™ i3 i3-8145U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Wi-Fi 5 (802.

115 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	8th gen Intel® Core™ i3
Processor model	i3-8145U
Processor cores	2
Processor threads	4
Processor boost frequency	3.9 GHz
Processor frequency	2.1 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1528
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.3 GHz
Configurable TDP-up	25 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	10 W
Bus type	OPI
Maximum number of PCI Express lanes	16
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Processor codename	Whiskey Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Tjunction	100 °C
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	2133,2400 MHz
Memory bandwidth supported by processor (max)	37.5 GB/s

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of storage drives installed	1
HDD interface	SATA
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3EA0
On-board graphics card OpenGL version	4.5

Specification	Value
Built-in camera	No

Specification	Value
Product colour	Black, Silver

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	149090
Processor package size	46x24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
