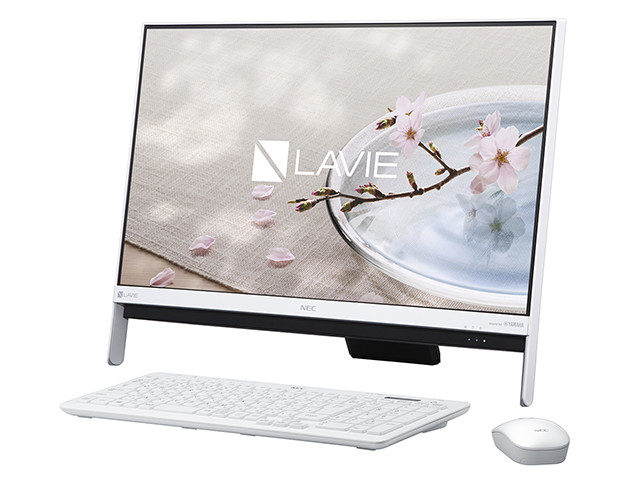

NEC LAVIE Direct DA (S) PC-GD254TCAT45AA6YCA All-in-One PC/workstation Intel® Core™ i5 i5-7200U
NEC

LAVIE Direct DA (S) PC-GD254TCAT45AA6YCA All-in-One PC/workstation Intel® Core™ i5 i5-7200U

60.5 cm (23.8") 1920 x 1080 pixels 4 GB DDR4-SDRAM 500 GB HDD Wi

Model PC-GD254TCAT45AA6YCA

157 specifications
  • Display60.5 cm (23.8")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • Memory4 GB
  • Storage500 GB
  • GraphicsNot available
See all specifications

Overview

Display
60.5 cm (23.8")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Memory
4 GB
Storage
500 GB
Graphics
Not available
Brand
NEC
Model
PC-GD254TCAT45AA6YCA
Part number
PC-GD254TCAT45AA6YCA
Also known as
NEC LAVIE Direct DA (S) PC-GD254TCAT45AA6YCA All-in-One PC/workstation Intel® Core™ i5 i5-7200U 60.5 cm (23.8") 1920 x 1080 pixels 4 GB DDR4-SDRAM 500 GB HDD Wi

Specifications

157 specifications in 19 groups

Display

Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Native aspect ratio16:9
Panel typeIPS
Pixel pitch0.274 x 0.274 mm
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation7th gen Intel® Core™ i5
Processor modeli5-7200U
Processor cores2
Processor threads4
Processor boost frequency3.1 GHz
Processor frequency2.5 GHz
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketBGA 1356
System bus rate4 GT/s
Thermal Design Power (TDP)15 W
Configurable TDP-up frequency2.7 GHz
Configurable TDP-up25 W
Configurable TDP-down frequency0.8 GHz
Configurable TDP-down7.5 W
Bus typeOPI
Maximum number of PCI Express lanes12
PCI Express configurations1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version3.0
Processor codeSR2ZU
Processor codenameKaby Lake
Processor lithography14 nm
Processor operating modes64-bit
SteppingH0
Tjunction100 °C
Conflict-Free processorYes
Maximum internal memory supported by processor32 GB
Memory types supported by processorDDR3L, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory4 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2133 MHz
Memory layout (slots x size)1 x 4 GB
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity500 GB
Storage mediaHDD
Number of storage drives installed1
Number of HDDs installed1
HDD capacity500 GB
HDD speed7200 RPM
HDD interfaceSATA
Number of SSDs installed0
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® HD Graphics 620
Maximum on-board graphics card memory32 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1000 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x5916
On-board graphics card OpenGL version4.4

Audio

Built-in speaker(s)Yes
Built-in microphoneYes

Camera

Built-in cameraYes

Optical drive

Optical drive interfaceSATA
Disc types supportedCD, DVD

Network

Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity0
VGA (D-Sub) ports quantity0
Headphone outputs0
Microphone inNo
Combo headphone/mic portYes
USB Sleep-and-ChargeYes
USB Sleep-and-Charge ports1

Design

Product colourWhite

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography14 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Smart Response Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)Yes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0
Intel® Wireless Display (Intel® WiDi)Yes
Processor ARK ID95443
Processor package size42 x 24 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes

Power

AC adapter frequency50/60 Hz

Weight & dimensions

Width (with stand)546 mm
Depth (with stand)190 mm
Height (with stand)418 mm
Weight (with stand)8.6 kg

Operational conditions

Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)20 - 80%

Packaging content

Mouse includedYes
Keyboard includedYes
Drivers includedYes
Remote control includedYes

Other features

3DNo
Autonomy modeNo
Detachable displayNo
