MSI PRO AP272P 14M i7 14700 16GB 1TB W11P

PRO AP272P 14M i7 14700 16GB 1TB W11P

Model PRO AP272P 14M i7 14700 16GB 1TB W11PPart no. PRO AP272P 14M I7 14700 16GB 1TB W11PEAN 4711377231930

128 specifications

Display68.6 cm (27")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: PRO AP272P 14M i7 14700 16GB 1TB W11P
Part number: PRO AP272P 14M I7 14700 16GB 1TB W11P
EAN / UPC: 4711377231930
Also known as: MSI Pro AP272P 14M Intel Core i7 14700 All in One PC, (16GB RAM, 1TB SSD, Windows 11PRO), 27 Inch IPS Screen/UHD Graphics/Type-C/USB/LAN/HDMI/DP/WiFi 6E/BT 5.3/

Specifications

128 specifications in 18 groups

Display

Specification	Value

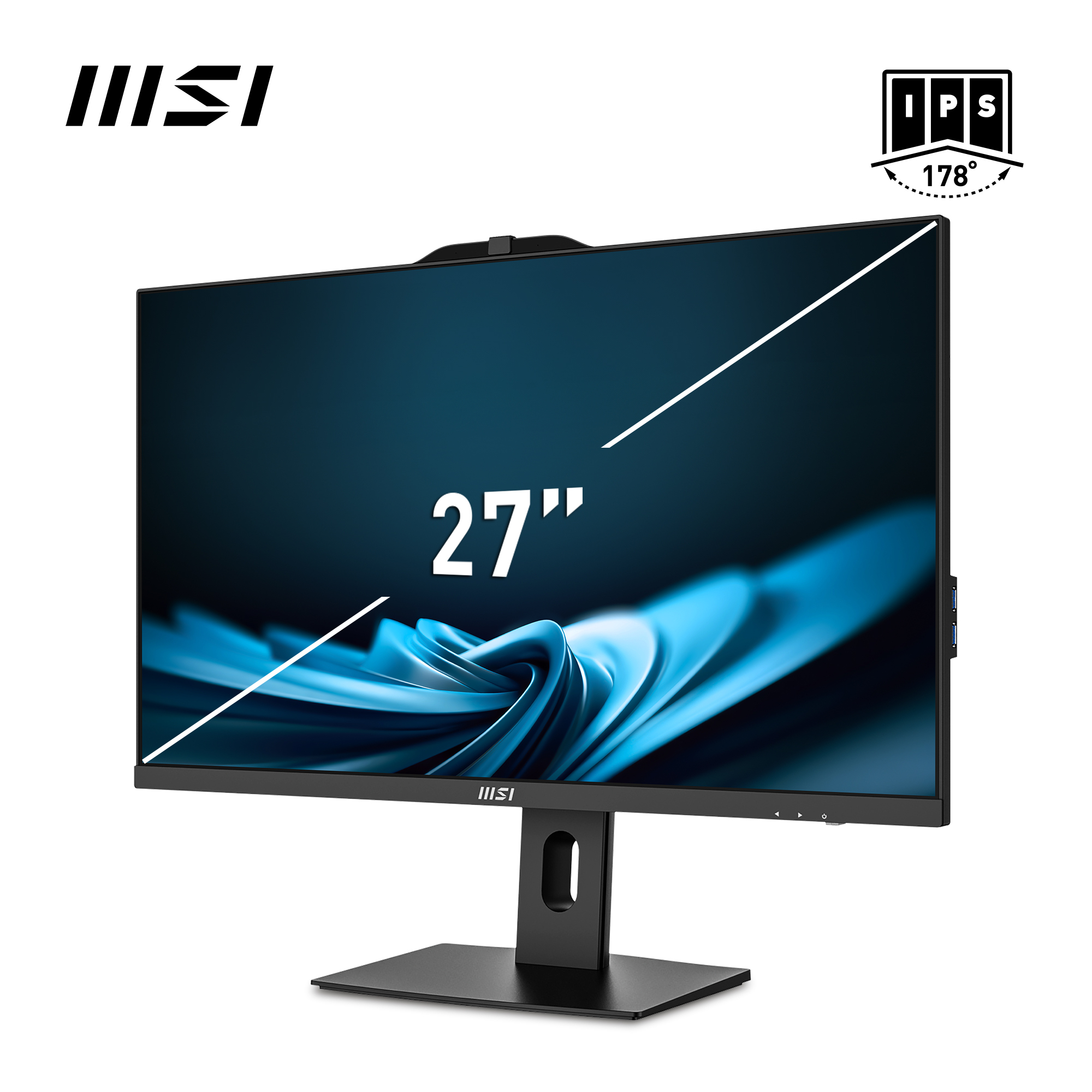

Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm

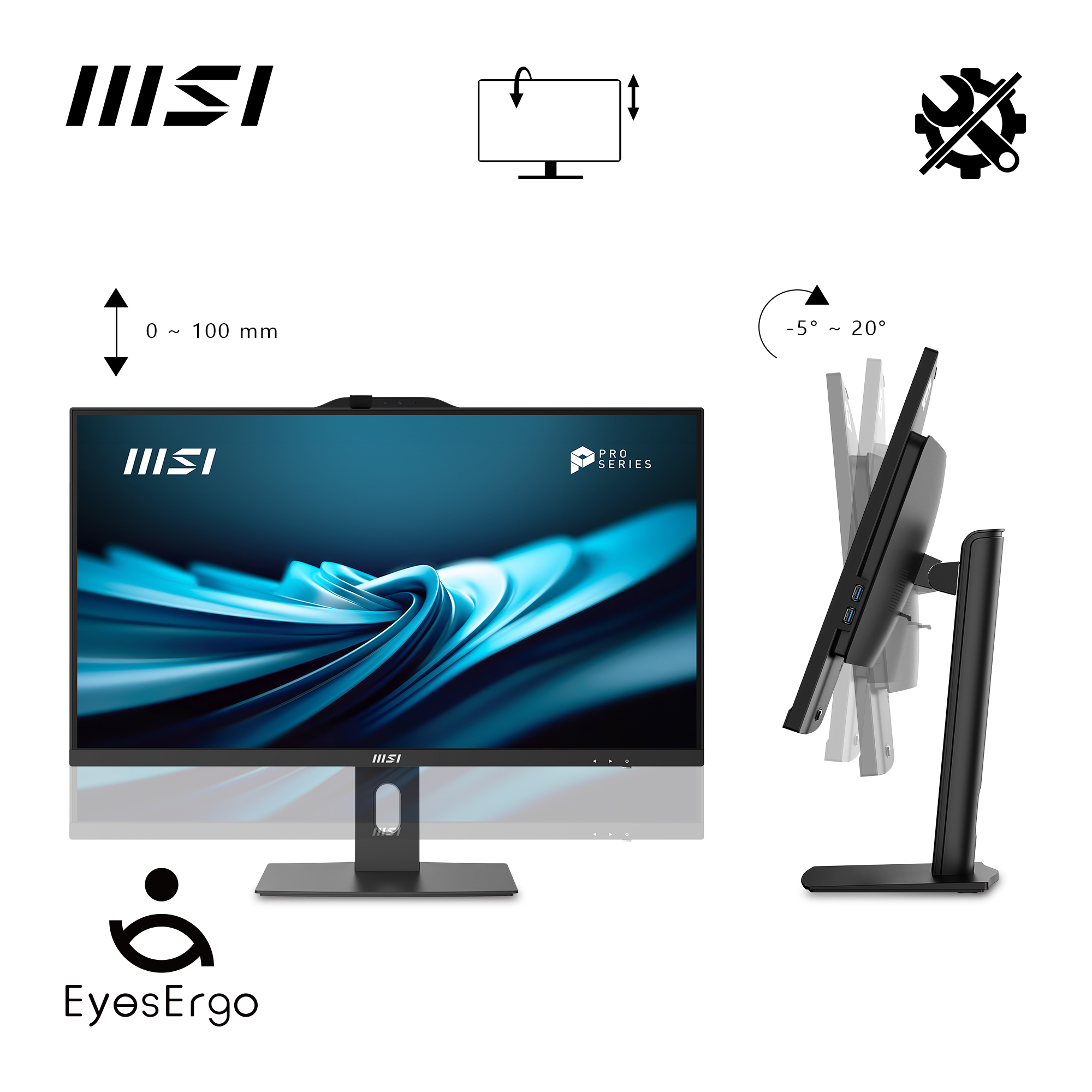

Tilt adjustment	Yes
Tilt angle range	-4 - 20°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700
Processor cores	20
Processor threads	28
Processor boost frequency	5.4 GHz
Processor frequency	2.1 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Maximum turbo power	219 W
Processor base power	65 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2800 MHz
Memory layout (slots x size)	2 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	M.2
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 770

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in microphone	Yes
Audio chip	Realtek ALC897
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP
Camera HD type	Full HD
Privacy camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Number of rear USB ports	4
Number of side USB ports	2
Number of side audio ports	2

Design

Specification	Value
Product colour	Black
Housing material	Plastic
Colour name	BLACK
Frameless design	Yes
Height adjustment	Yes
Pivot	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Cable management	Yes
Introduction year	2024
Panel mounting interface	75 x 75 mm
VESA mounting	Yes
Wall mountable	Yes
On/off button	Yes
Country of origin	China

Performance

Specification	Value
Product type	All-in-One PC
Cooling type	Active
Market positioning	Business
Motherboard chipset	Intel H610
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Specification	Value

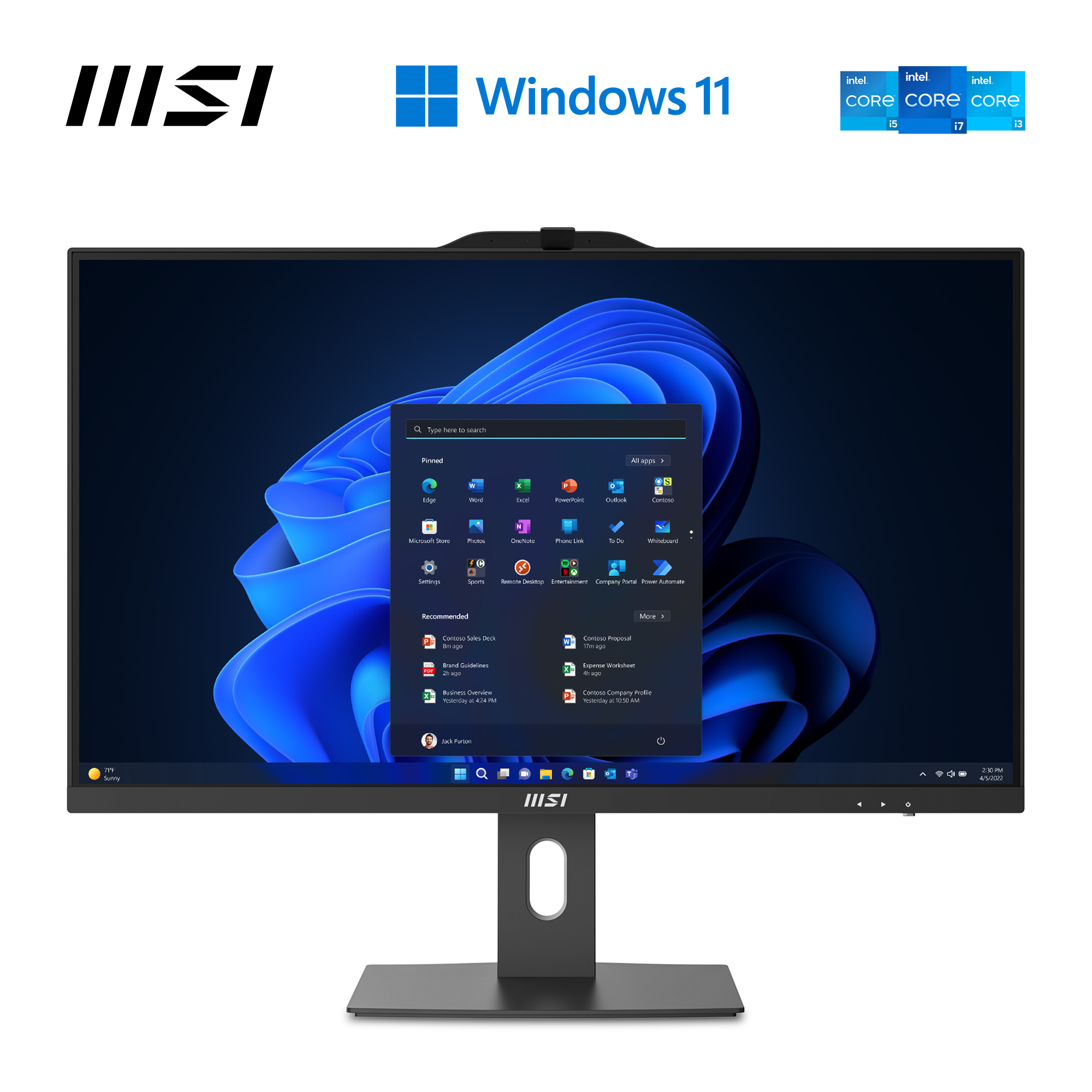

Operating system installed	Windows 11 Pro

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	613.5 mm
Depth (with stand)	268 mm
Height (with stand)	457.7 mm
Weight (with stand)	4.63 kg
Package width	711 mm
Package depth	232 mm
Package height	514 mm
Package weight	8 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Certificates

Specification	Value
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Cables included	AC

Other features

Specification	Value
Warranty period	3 year(s)
