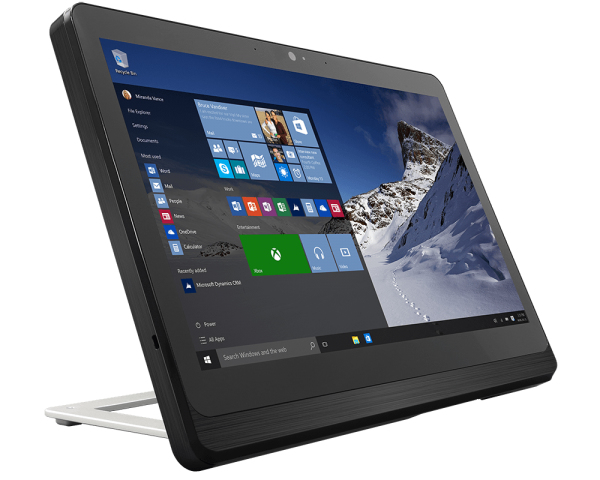

MSI Wind Top AP16FLEX-004EU All-in-One PC/workstation Intel® Celeron® N3150
MSI

Wind Top AP16FLEX-004EU All-in-One PC/workstation Intel® Celeron® N3150

39.6 cm (15.6") 1366 x 768 pixels 4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Pro Black

Model AP16FLEX-004EUEAN 4719072456399

128 specifications
  • Display39.6 cm (15.6")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Celeron®
  • Memory4 GB
  • Storage500 GB
  • GraphicsNot available
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1366 x 768 pixels
Processor
Intel® Celeron®
Memory
4 GB
Storage
500 GB
Graphics
Not available
Brand
MSI
Model
AP16FLEX-004EU
Part number
AP16FLEX-004EU
EAN / UPC
4719072456399
Also known as
MSI Wind Top AP16FLEX-004EU All-in-One PC/workstation Intel® Celeron® N3150 39.6 cm (15.6") 1366 x 768 pixels 4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Pro Black

Specifications

128 specifications in 14 groups

Display

Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
TouchscreenNo
HD typeHD
LED backlightYes
Native aspect ratio16:9
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelN3150
Processor cores4
Processor threads4
Processor boost frequency2.08 GHz
Processor frequency1.6 GHz
Processor cache2 MB
Processor cache typeSmart Cache
Processor socketBGA 1170
System bus rate5 GT/s
64-bit computingYes
Thermal Design Power (TDP)6 W
Integrated 4G WiMAXNo
Maximum number of PCI Express lanes4
PCI Express configurations1x4, 4x1
PCI Express slots version2.0
Processor codeSR29F
Processor codenameBraswell
Processor lithography14 nm
Processor operating modes64-bit
Processor seriesIntel Celeron N3000 series
Scenario Design Power (SDP)4 W
SteppingC0
Tjunction90 °C
Conflict-Free processorYes
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR3L-SDRAM
Memory clock speeds supported by processor1600 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory4 GB
Internal memory typeDDR3L-SDRAM
Memory slots2
Memory slots typeSO-DIMM

Storage

Total storage capacity500 GB
Storage mediaHDD
Number of storage drives installed1
HDD speed5400 RPM
Card reader integratedYes
Compatible memory cardsMMC, Memory Stick (MS), SD

Graphics

Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency320 MHz
On-board graphics card burst frequency640 MHz
On-board graphics card dynamic frequency (max)640 MHz
Number of execution units12

Audio

Built-in speaker(s)Yes
RMS rated power4 W
Built-in microphoneYes

Camera

Built-in cameraYes
Total megapixels1 MP

Network

Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
HDMI ports quantity0
VGA (D-Sub) ports quantity0
Headphone outputs0
Microphone inNo
Total number of SATA connectors2
Number of SATA III connectors2

Design

Product colourBlack

Software

Operating system installedWindows 10 Pro

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure BootYes
Intel Secure Boot Technology version1.00
Intel Secure Key Technology version1.00
Intel Small Business Advantage (SBA) version0.00
Intel Smart Connect TechnologyNo
Intel Smart Connect Technology version0.00
Intel Smart Response Technology version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® OS GuardNo
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)Yes
Processor ARK ID87258
Processor package size25 x 27 mm
Thermal Monitoring TechnologiesYes
UARTYes

Power

AC adapter power40 W

Other features

Detachable displayNo
