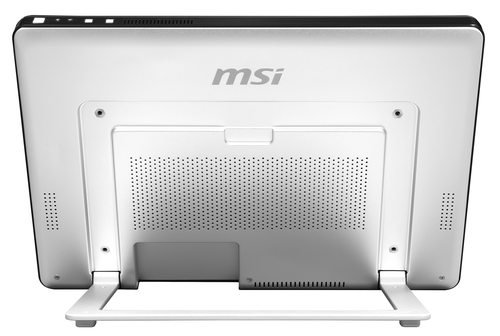

AP16 Flex-035RU

Model AP16 Flex-035RUPart no. 9S6-A62213-035

122 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AP16 Flex-035RU
Part number: 9S6-A62213-035
Also known as: MSI Pro AP16 Flex-035RU Intel® Celeron® J1900 39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Home Black

122 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor cores	4
Processor threads	4
Processor boost frequency	2.42 GHz
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1170
Thermal Design Power (TDP)	10 W
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Processor code	SR1SC
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor J1000 series for Desktop
Stepping	B3
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, Memory Stick (MS), SD, SDIO, SDXC

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	No
DC-in jack	Yes

Specification	Value
Product colour	Black
Wall mountable	Yes

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel FDI Technology	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78867
Processor package size	25 X 27 mm
