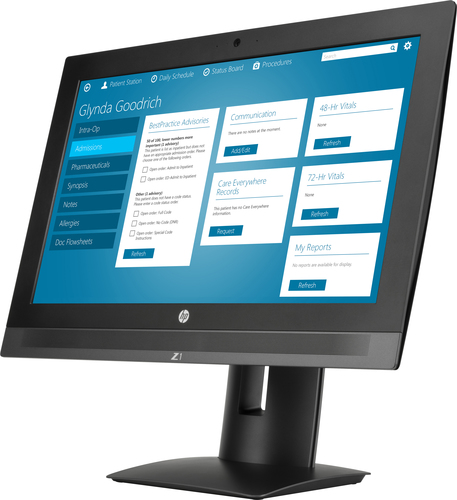

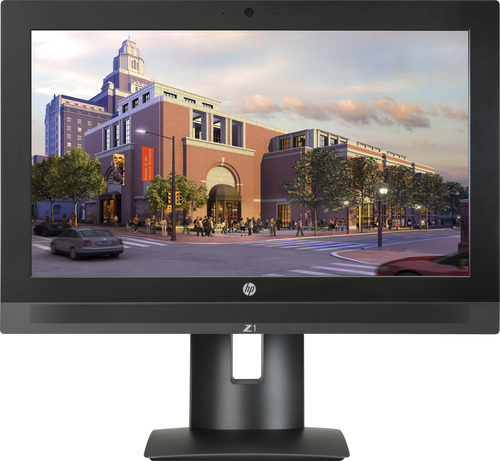

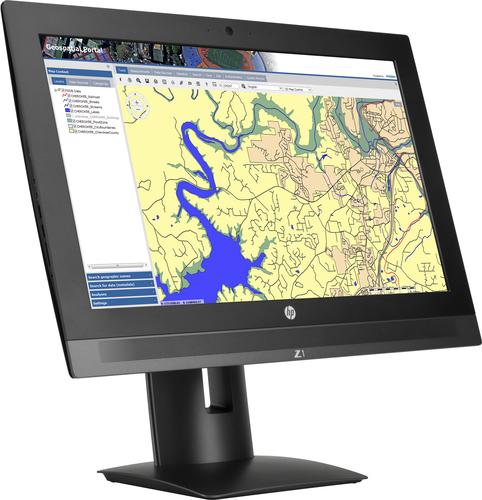

Z1 G3

Model Z1 G3Part no. T4L15ESEAN 190780087572

139 specifications

Overview

139 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 v5
Processor model	E3-1225V5
Processor cores	4
Processor threads	4
Processor boost frequency	3.7 GHz
Processor frequency	3.3 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
System bus rate	8 GT/s
Thermal Design Power (TDP)	80 W
Bus type	DMI3
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200 v5
Conflict-Free processor	Yes
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes
Memory voltage supported by processor	1.35 V

Specification	Value
Discrete graphics card model	NVIDIA® Quadro® M1000M
Discrete graphics card memory	2 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics P530
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x191D
On-board graphics card OpenGL version	4.4

Specification	Value
Built-in speaker(s)	Yes
Dolby technologies	DTS Studio Sound

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	1
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes

Specification	Value
Product colour	Black
Country of origin	China

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88168
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
