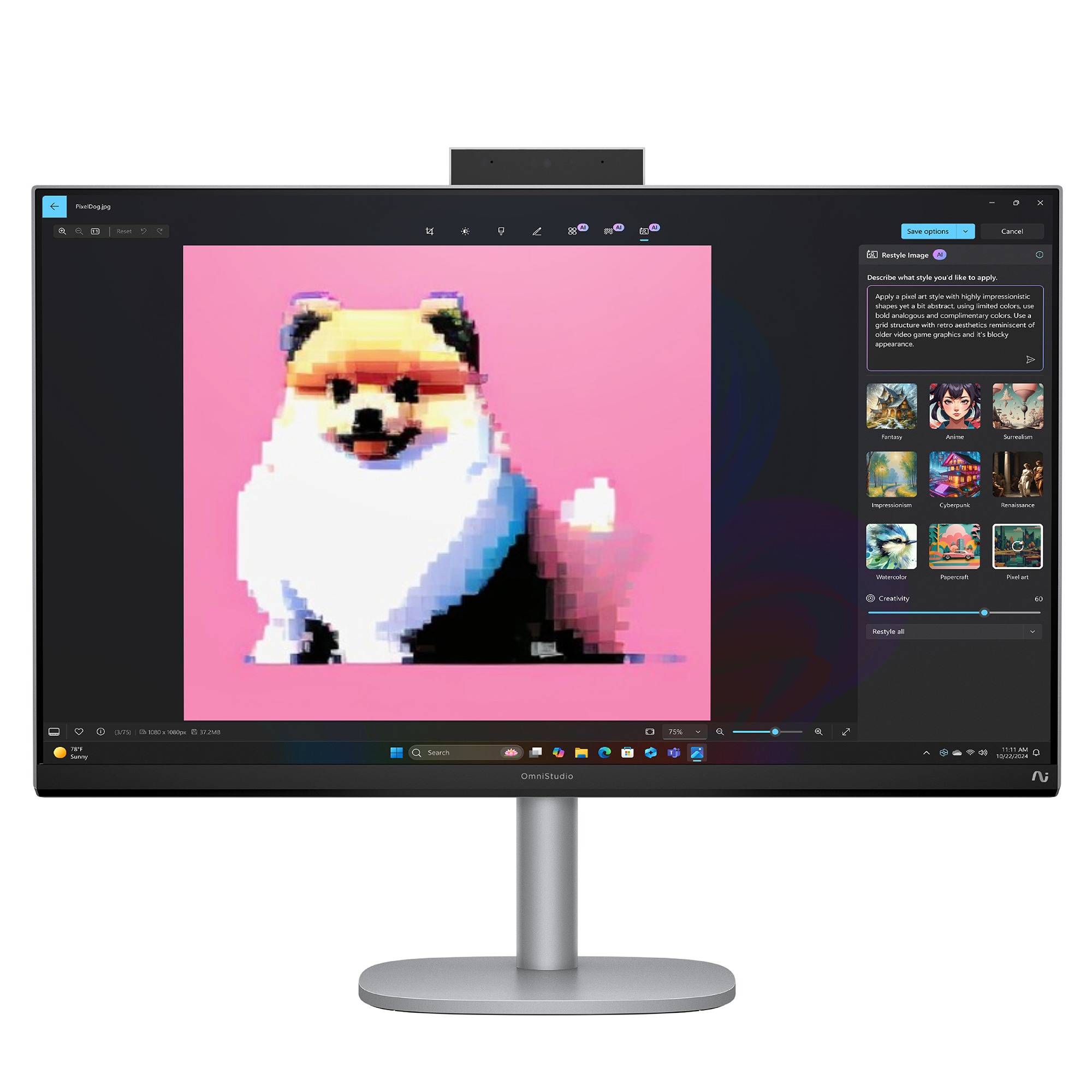

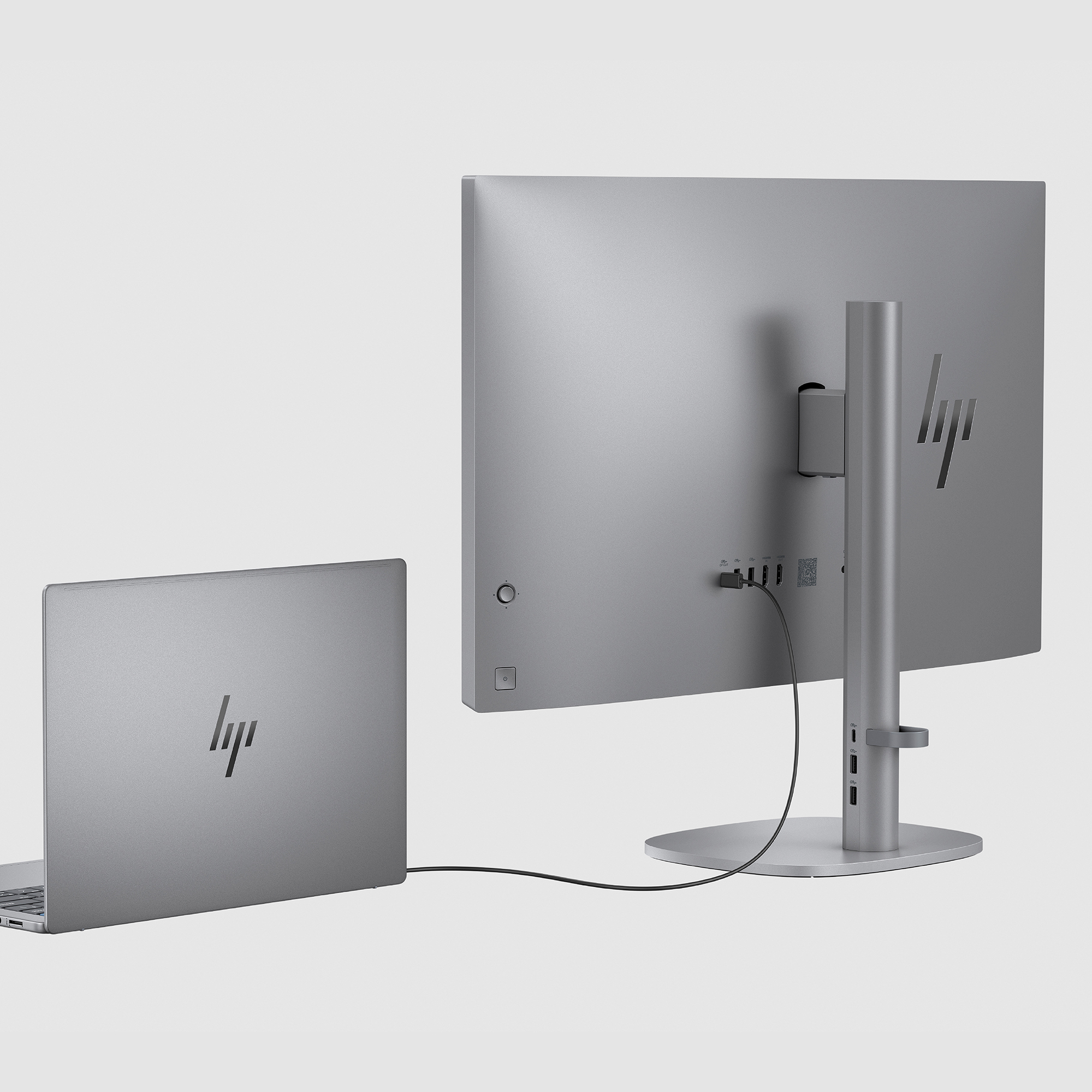

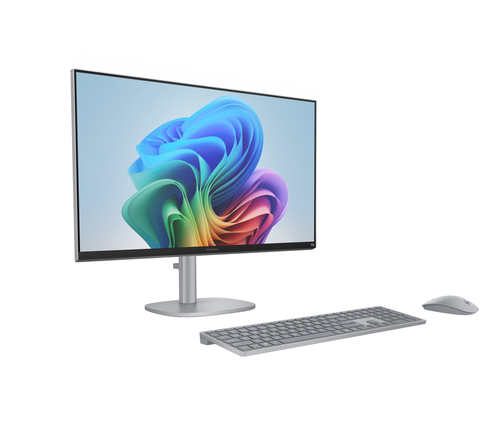

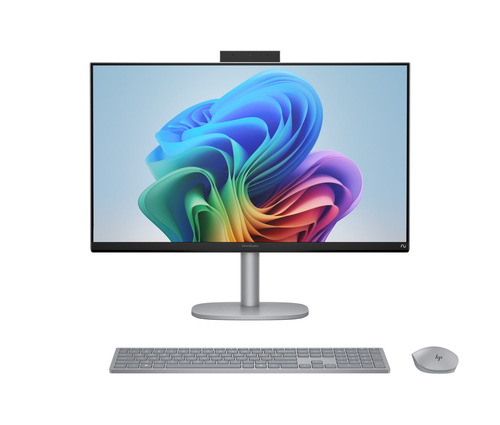

HP OmniStudio X Next Gen AI 27-cs1020nb PC

OmniStudio X Next Gen AI 27-cs1020nb PC

Model OmniStudio X Next Gen AI 27-cs1020nb PCPart no. CL4H2EA#UUG

113 specifications

Display68.6 cm (27")
Resolution3840 x 2160 pixels
ProcessorIntel Core Ultra 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 3840 x 2160 pixels
Processor: Intel Core Ultra 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: HP
Category: All-in-One PCs/Workstations
Model: OmniStudio X Next Gen AI 27-cs1020nb PC
Part number: CL4H2EA#UUG
Also known as: HP OmniStudio X Next Gen AI 27-cs1020nb PC Copilot+ PC Intel Core Ultra 5 226V 68.6 cm (27") 3840 x 2160 pixels All-in-One PC 16 GB LPDDR5x-SDRAM 512 GB SSD Win

Specifications

113 specifications in 19 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	3840 x 2160 pixels
Touchscreen	No
HD type	4K Ultra HD
Display brightness	350 cd/m²
Panel type	IPS
RGB colour space	sRGB
Colour gamut	99%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	226V
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Low Power Efficient-core Base Frequency	2100 MHz
Processor cache	8 MB
Processor cache type	L3
Processor socket	BGA
Maximum turbo power	37 W
Processor base power	17 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	16 GB
Memory clock speed	8533 MHz
Memory data transfer rate	8533 MT/s
Memory form factor	On-board
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics 130V

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	10 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	5 MP
Infrared (IR) camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	MediaTek MT7922
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	2500,10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	2
HDMI version	1.4
Microphone in	Yes
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Silver
Colour name	Meteor silver
Introduction year	2025
Country of origin	China, Thailand

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Premium

Software

Specification	Value
Operating system installed	Windows 11 Home

Brand-specific features

Specification	Value
HP speaker type	HP Dual Speakers
HP front camera	HP Webcam 5MP
HP segment	Home

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	614.1 mm
Depth (with stand)	200 mm
Height (with stand)	537.1 mm
Weight (with stand)	8.4 kg
Weight	8.4 kg
Package width	760 mm
Package depth	163 mm
Package height	480 mm
Package weight	14.7 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT, EPEAT Gold
Sustainable technologies and materials	At least 25% recycled metal; At least 35% post-consumer recycled plastic

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Numeric keypad	No

Other features

Specification	Value
Display bezel technology	Micro-Edge
Chassis type	All-in-One
Display diagonal (metric)	68.6 cm
Display included	Yes
