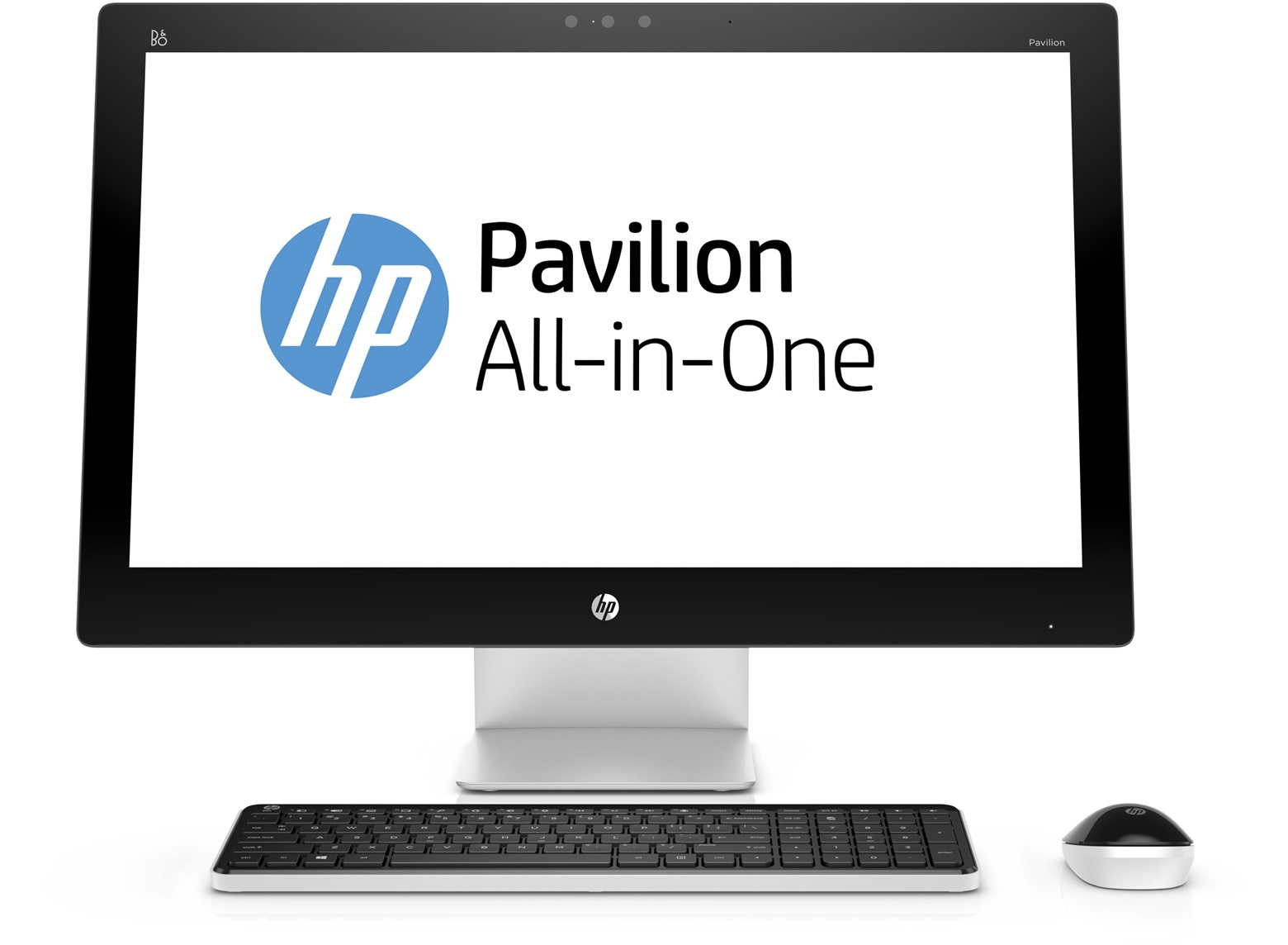

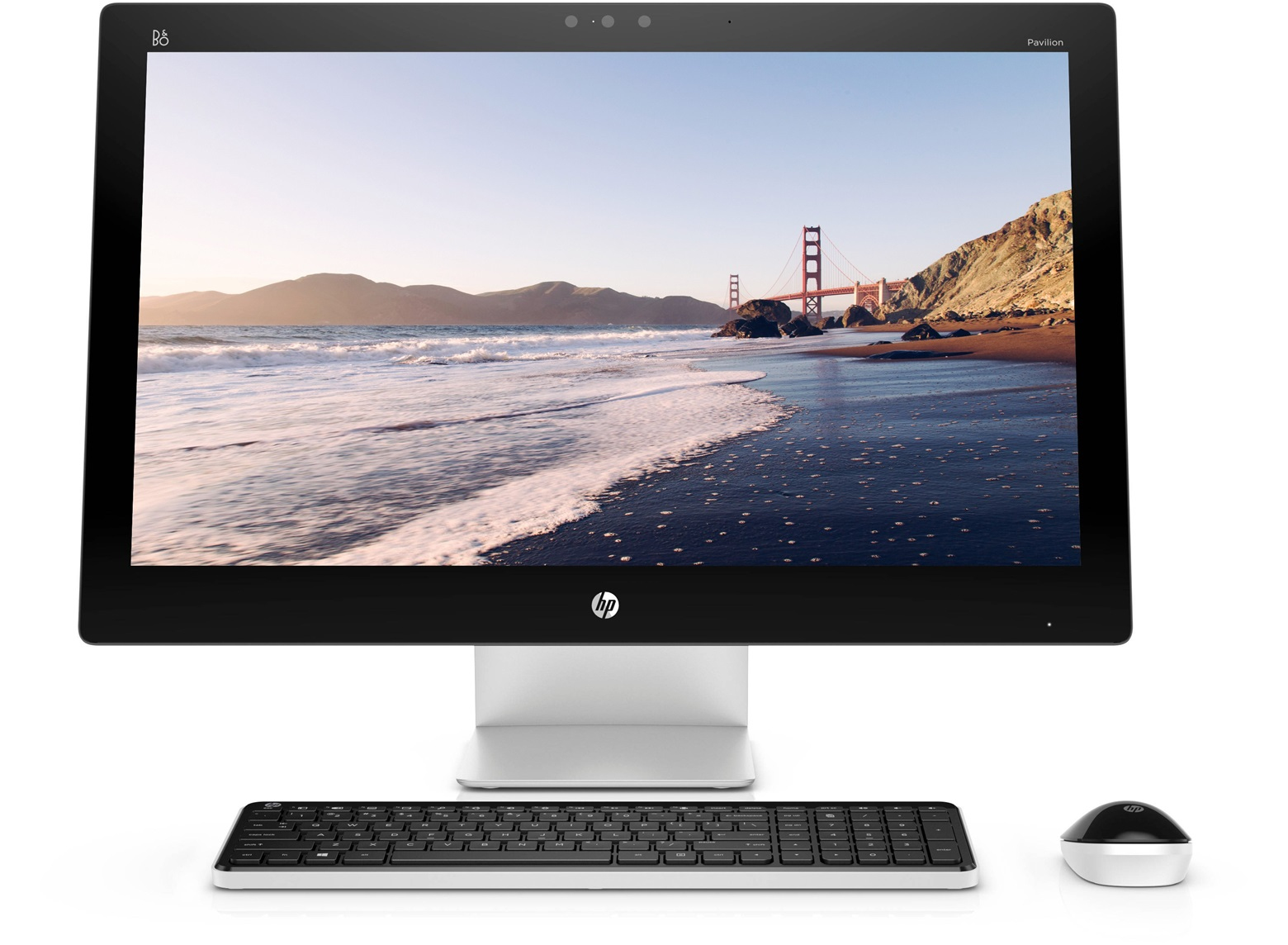

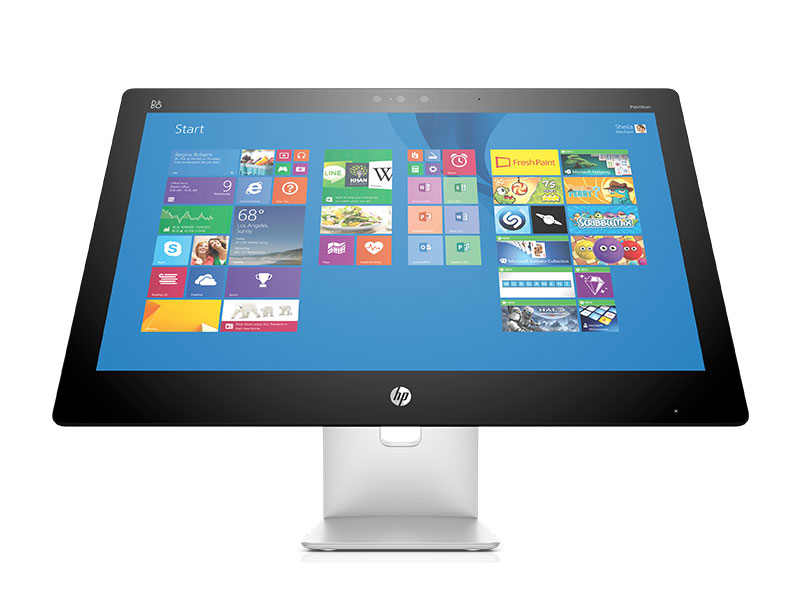

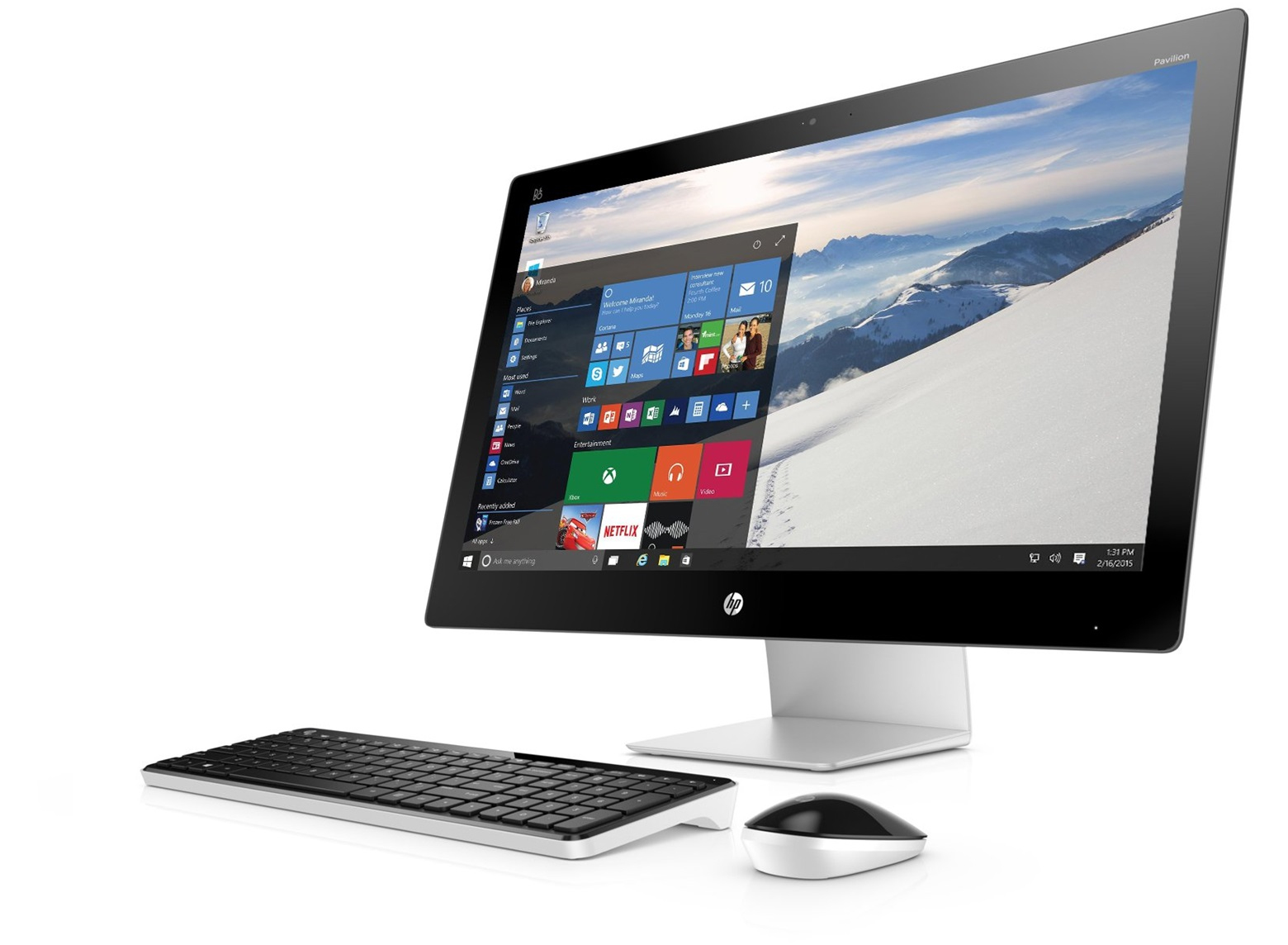

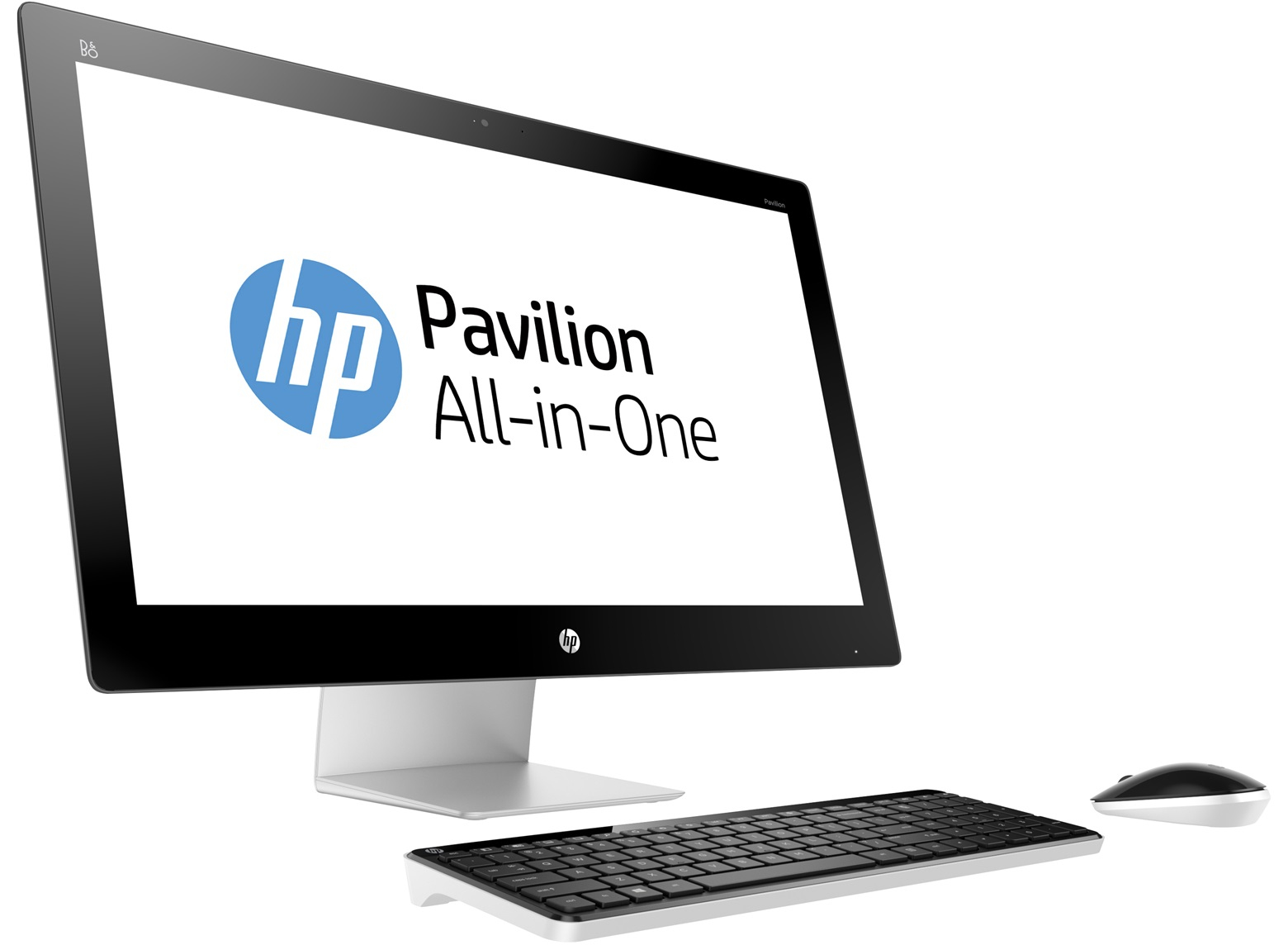

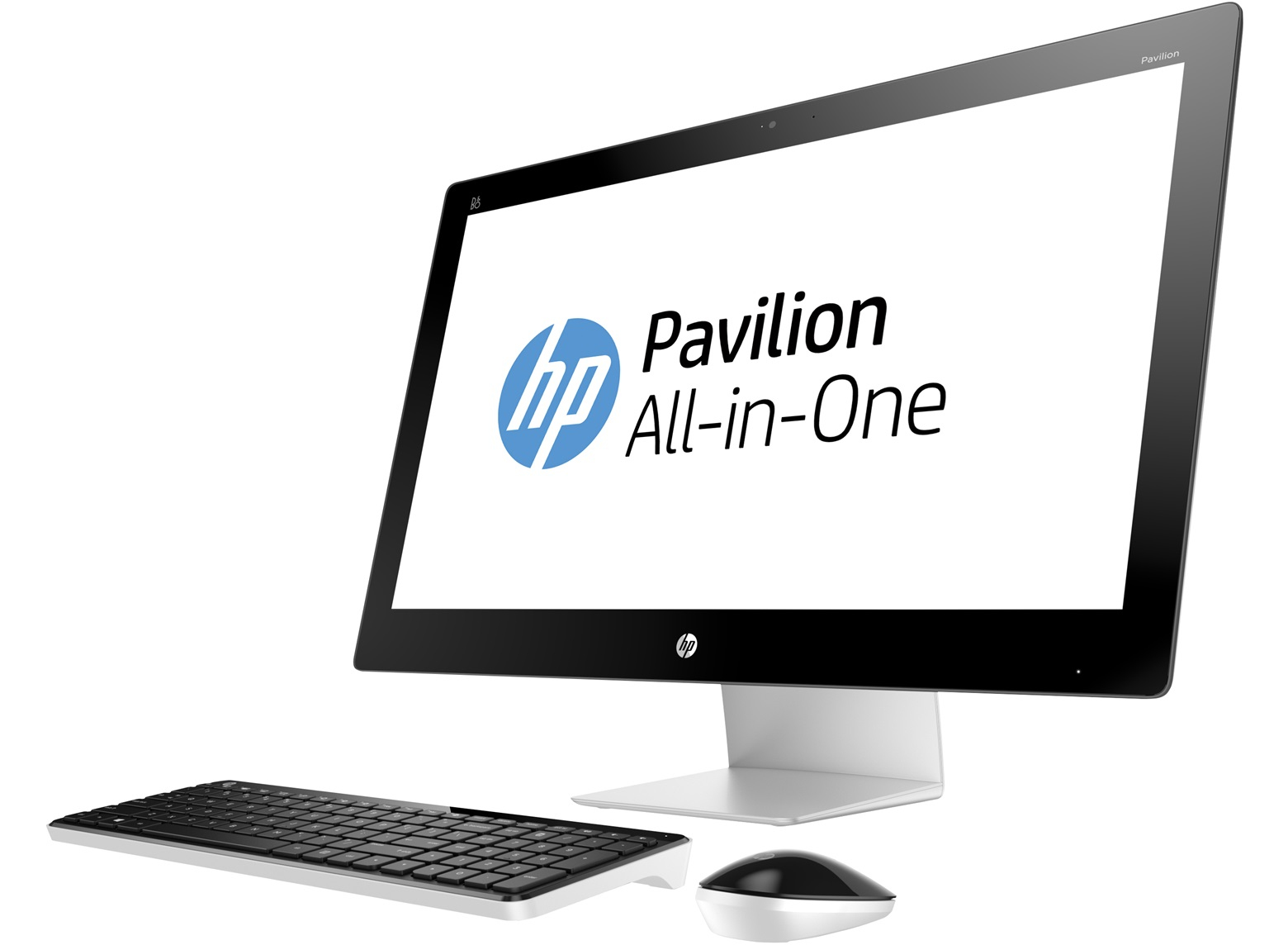

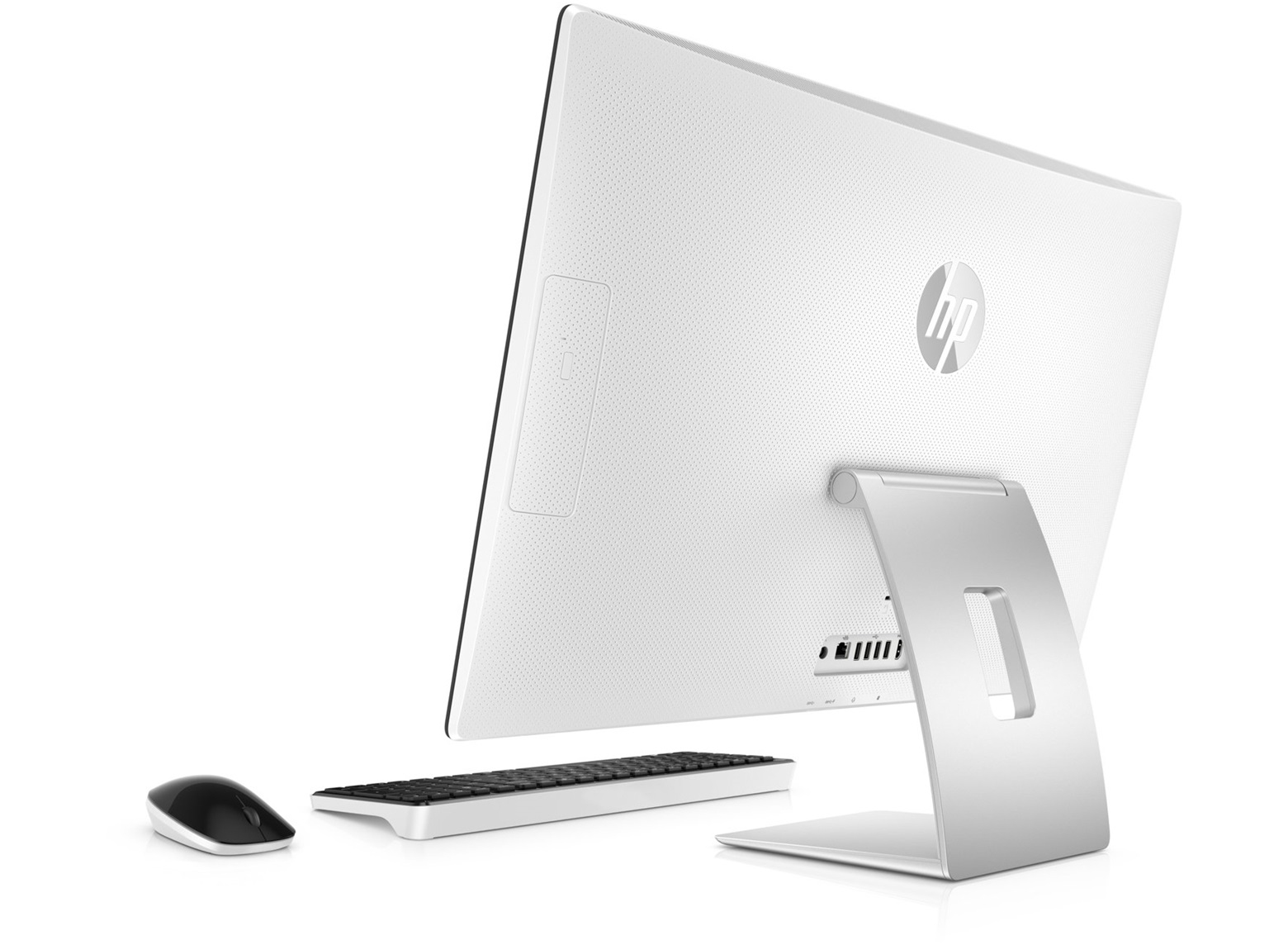

Pavilion 27-n140nz Intel® Core™ i7 i7-4785T

68.6 cm (27") 1920 x 1080 pixels All-in-One PC 8 GB DDR3L-SDRAM 1 TB HDD AMD Radeon R7 M360 Windows 10 Home White

Model 27-n140nzPart no. L6W21EA#UUZ?S

177 specifications

Display68.6 cm (27")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsAMD Radeon R7 M360

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon R7 M360

Brand: HP
Category: All-in-One PCs/Workstations
Model: 27-n140nz
Part number: L6W21EA#UUZ?S
Also known as: HP Pavilion 27-n140nz Intel® Core™ i7 i7-4785T 68.6 cm (27") 1920 x 1080 pixels All-in-One PC 8 GB DDR3L-SDRAM 1 TB HDD AMD Radeon R7 M360 Windows 10 Home White

Specifications

177 specifications in 21 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Panel type	IPS
Display number of colours	16.78 million colours
Screen shape	Flat

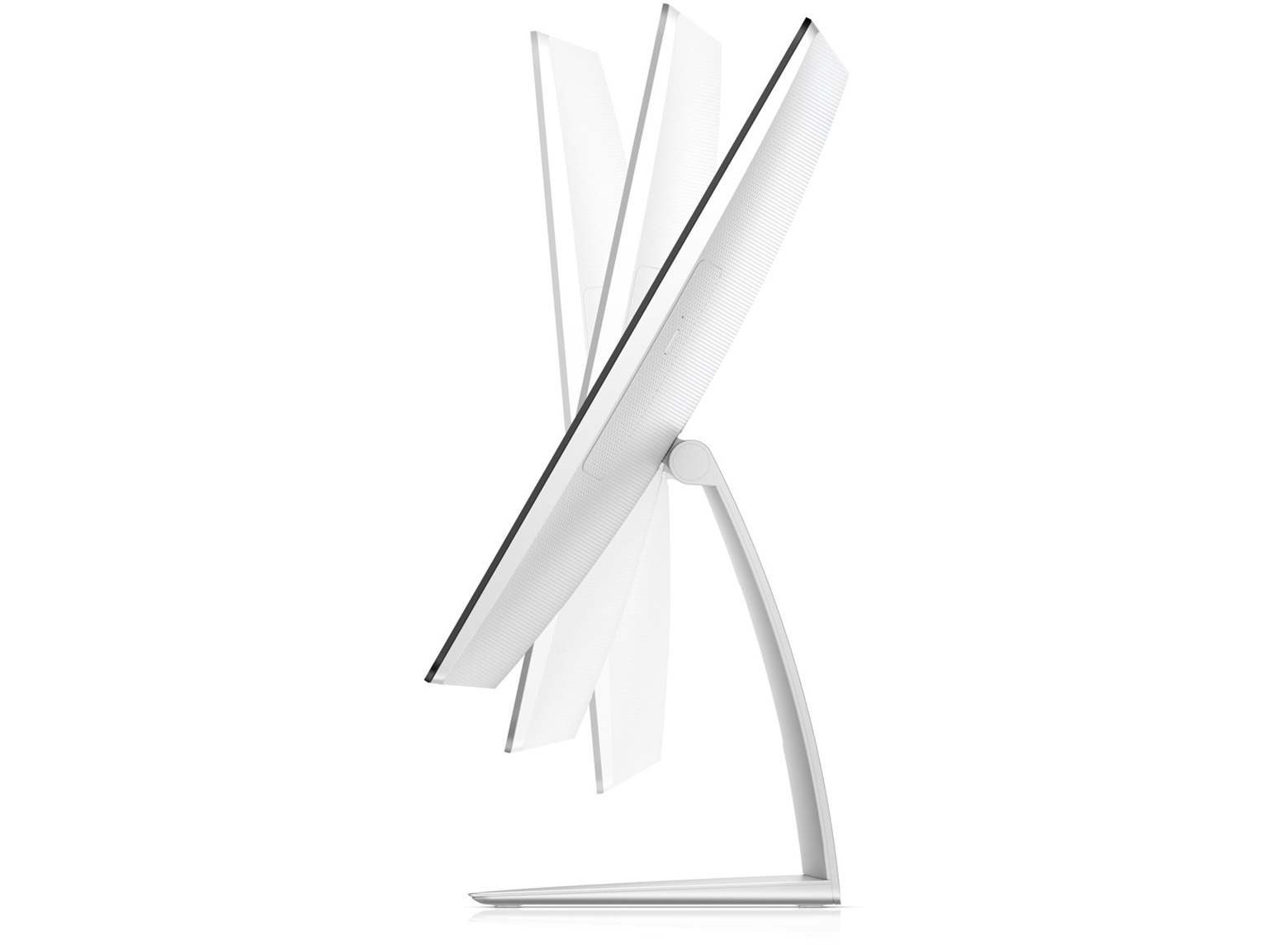

Tilt angle range	-5 - 30°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4785T
Processor cores	4
Processor threads	8
Processor boost frequency	3.2 GHz
Processor frequency	2.2 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1QU
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Stepping	C0
Tcase	66.35 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card model	AMD Radeon R7 M360
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR3
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
On-board graphics card memory	1.7 GB
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	B&O PLAY

Camera

Specification	Value
Built-in camera	Yes

Optical drive

Specification	Value
Optical drive interface	SATA
Disc types supported	CD, DVD
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

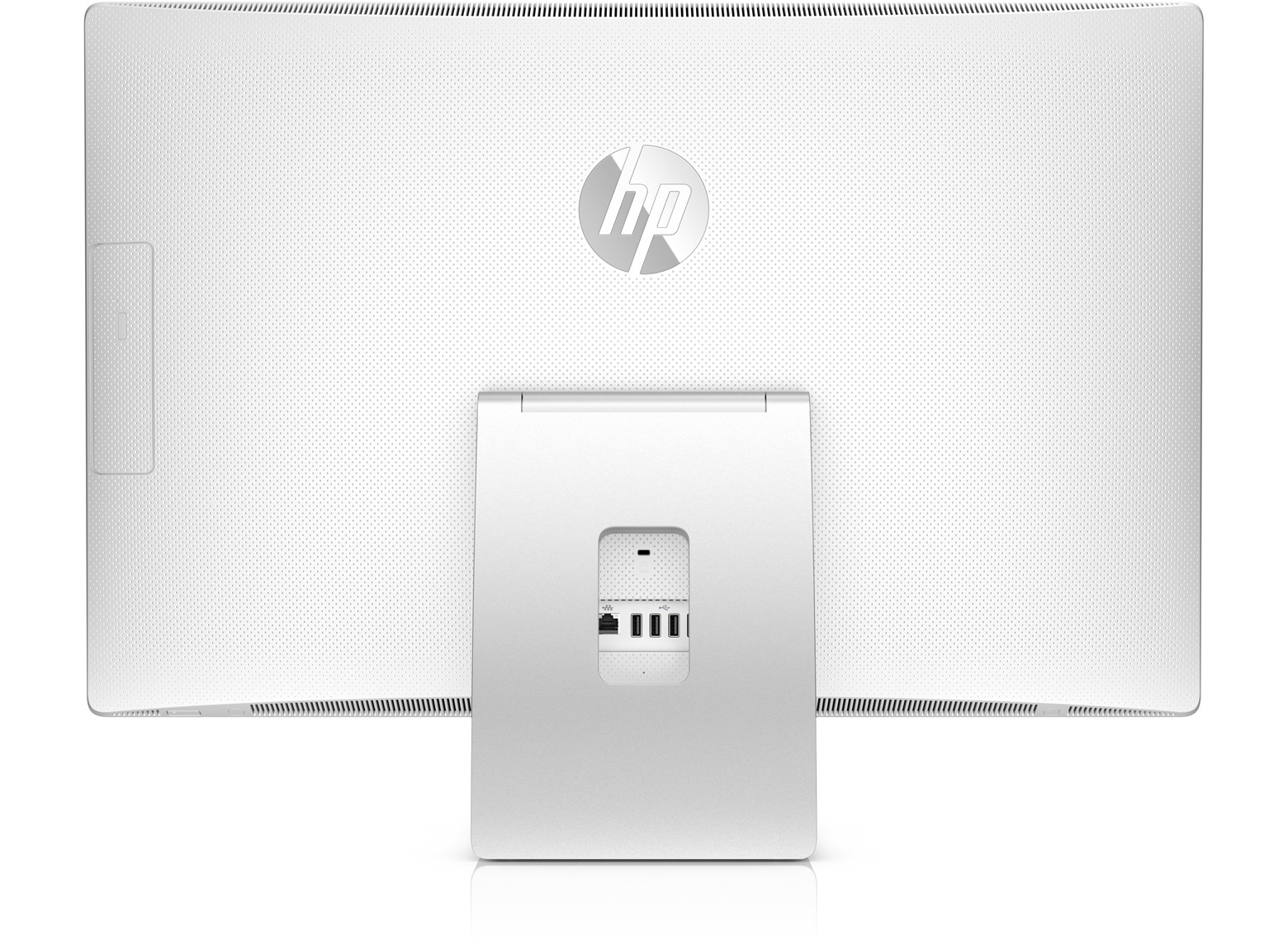

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt 2 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	1
Microphone in	No
Combo headphone/mic port	Yes
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Design

Specification	Value
Product colour	White
Country of origin	China

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H87

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	80814
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	667 mm
Depth (with stand)	205 mm
Height (with stand)	495 mm
Weight (with stand)	11.2 kg
Package width	770 mm
Package depth	290 mm
Package height	617 mm
Package weight	15.3 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3050 m
