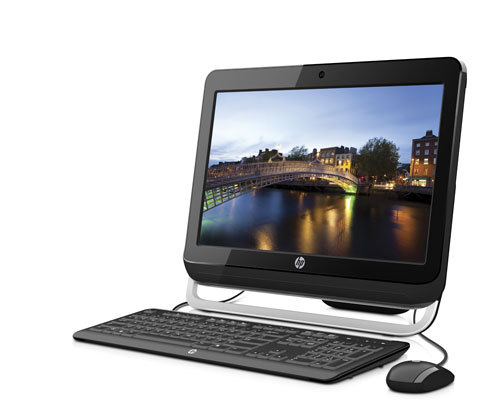

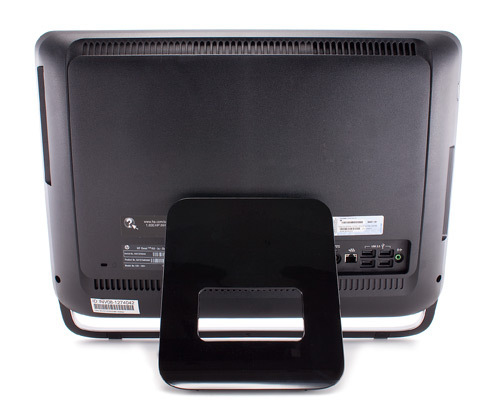

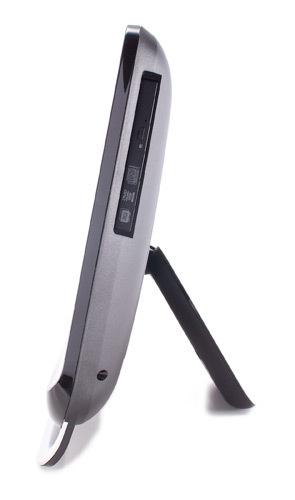

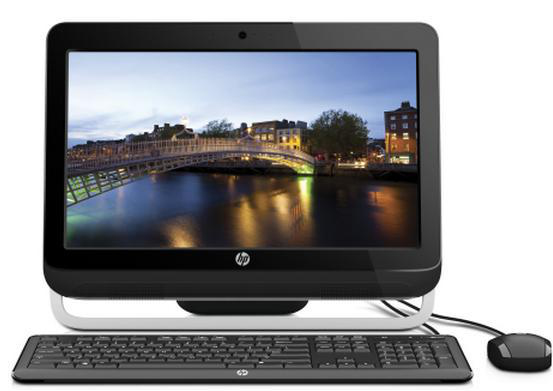

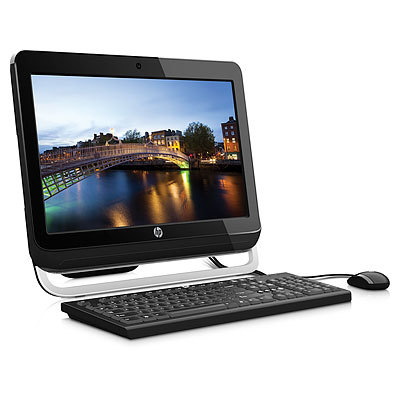

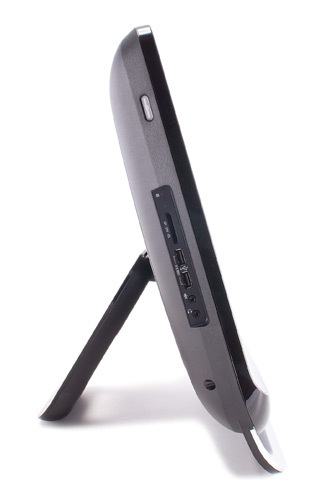

Omni 120-1213cx Intel® Celeron® G G540

50.8 cm (20") 1600 x 900 pixels All-in-One PC 2 GB DDR3-SDRAM 500 GB HDD Linux Black

Model 120-1213cxPart no. H3T91AA

129 specifications

Overview

Brand: HP
Category: All-in-One PCs/Workstations
Model: 120-1213cx
Part number: H3T91AA
Also known as: HP Omni 120-1213cx Intel® Celeron® G G540 50.8 cm (20") 1600 x 900 pixels All-in-One PC 2 GB DDR3-SDRAM 500 GB HDD Linux Black

129 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G540
Processor cores	2
Processor threads	2
Processor frequency	2.5 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	25
PCI Express slots version	2.0
Processor code	SR05J
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Stepping	Q0
Tcase	69.1 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s
Memory channels supported by processor	Dual

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MS Duo, MS PRO, MS PRO Duo, Memory Stick (MS), MicroSD (TransFlash), MiniSD, SD, SDHC

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Specification	Value
Built-in camera	Yes
Camera resolution	640 x 480 pixels

Specification	Value
Optical drive interface	SATA

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
Audio output	Yes
DC-in jack	Yes
ExpressCard slot	No

Specification	Value
Product colour	Black
Country of origin	China

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Linux

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53416
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
