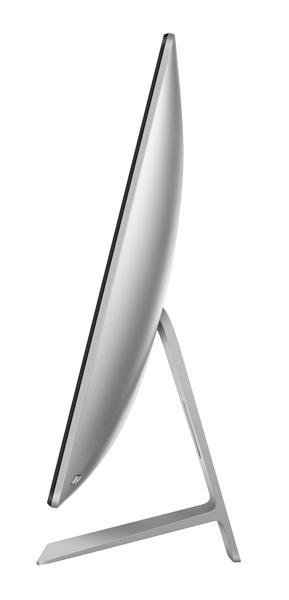

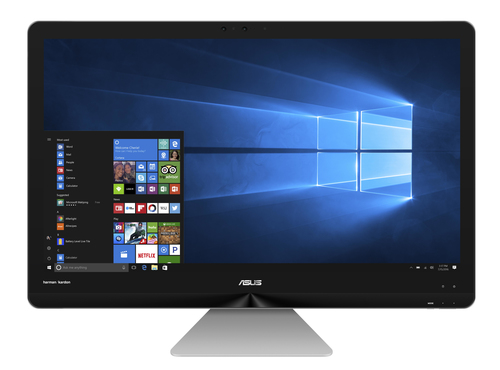

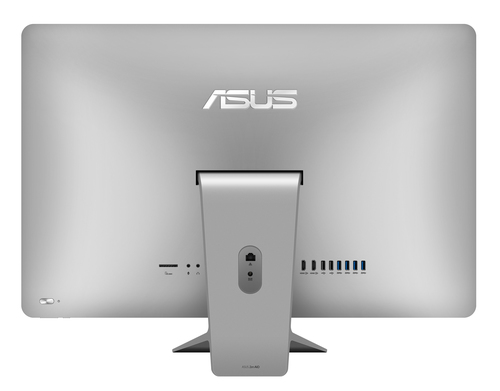

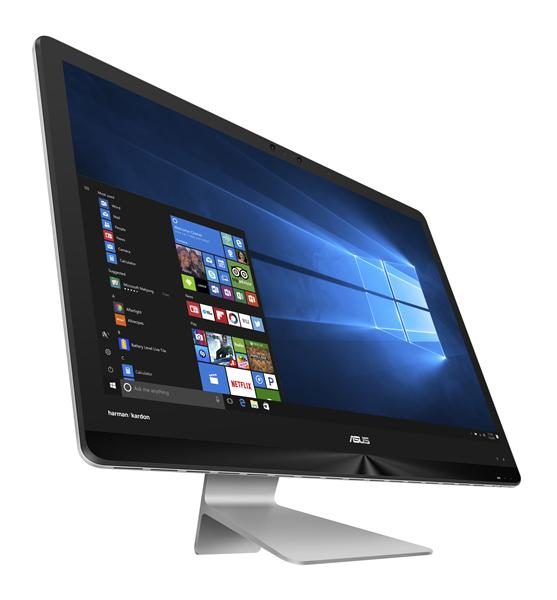

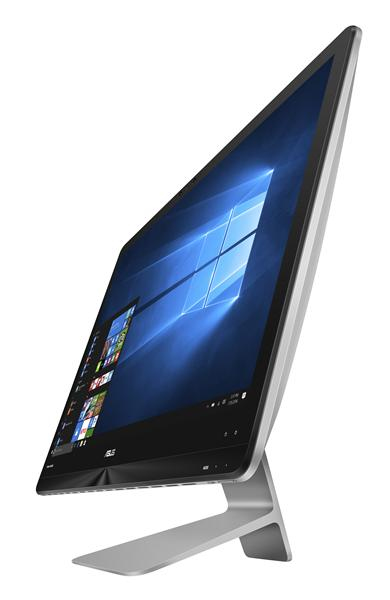

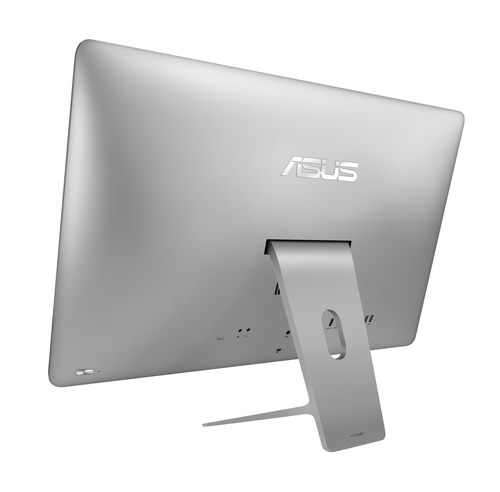

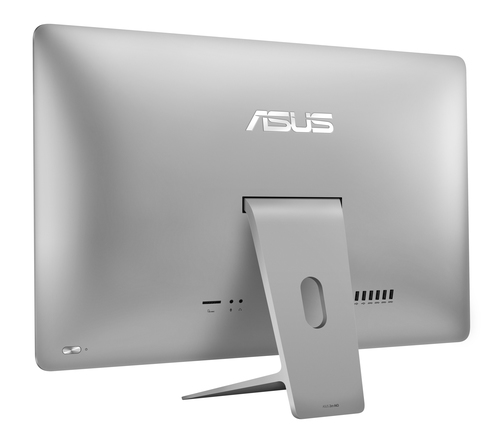

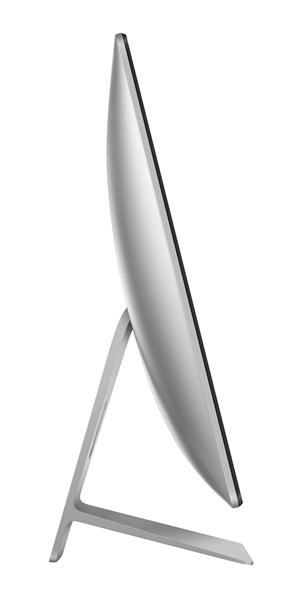

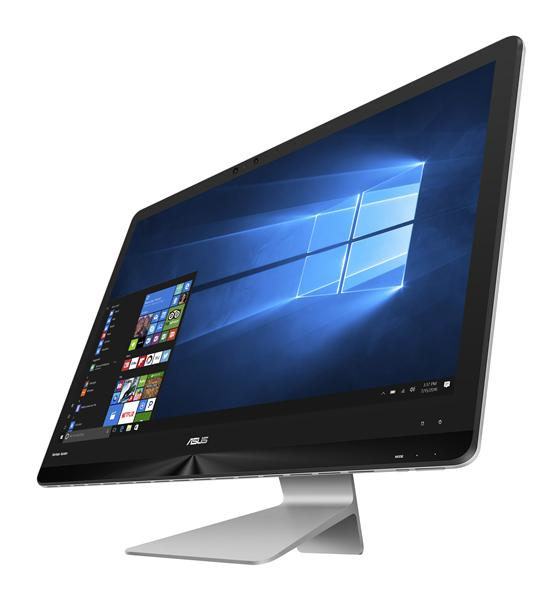

Zen AiO ZN270IEGK-RA022T All-in-One PC/workstation Intel® Core™ i7 i7-7700T

68.6 cm (27") 1920 x 1080 pixels 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForc

Model ZN270IEGK-RA022T

146 specifications

Overview

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: ZN270IEGK-RA022T
Part number: ZN270IEGK-RA022T
Also known as: ASUS Zen AiO ZN270IEGK-RA022T All-in-One PC/workstation Intel® Core™ i7 i7-7700T 68.6 cm (27") 1920 x 1080 pixels 8 GB DDR4-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForc

146 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700T
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
System bus rate	8 GT/s
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.9 GHz
Configurable TDP-down	25 W
Bus type	DMI3
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor code	SR339
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-7700 Desktop series
Stepping	B0
Tjunction	80 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 940MX
Discrete graphics card memory	2 GB
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	5912
On-board graphics card OpenGL version	4.4

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	1
Microphone in	Yes
FireWire 800	No
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	97122
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
