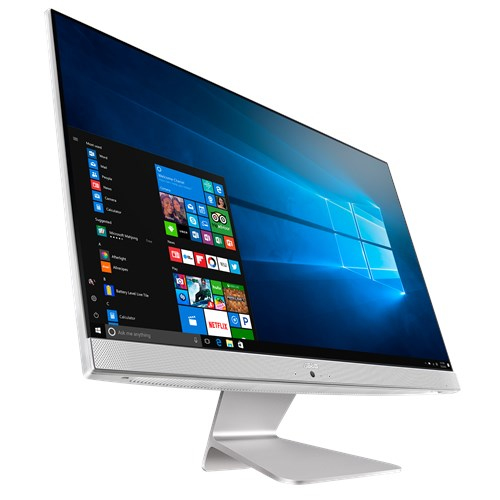

Vivo AiO V241ICUK-WA193T Intel® Core™ i3 i3-6006U

60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 6 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Home Wi-Fi 5

Model V241ICUK-WA193TPart no. 90PT01W2-M15830

151 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory6 GB
Storage1.12 TB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 6 GB
Storage: 1.12 TB
Graphics: Not available

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: V241ICUK-WA193T
Part number: 90PT01W2-M15830
Also known as: ASUS Vivo AiO V241ICUK-WA193T Intel® Core™ i3 i3-6006U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 6 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Home Wi-Fi 5

Specifications

151 specifications in 19 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Panel type	IPS
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6006U
Processor cores	2
Processor threads	4
Processor frequency	2 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Bus type	OPI
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Processor code	SSSR2UW
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6000 Mobile Processor Series
Stepping	D1
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	DIMM
Memory clock speed	2133 MHz

Storage

Specification	Value
Total storage capacity	1.12 TB
Storage media	HDD+SSD
Number of storage drives installed	2
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1916
On-board graphics card OpenGL version	4.4

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Audio system	Sonic Master

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	White

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	91157
Processor package size	42 X 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
