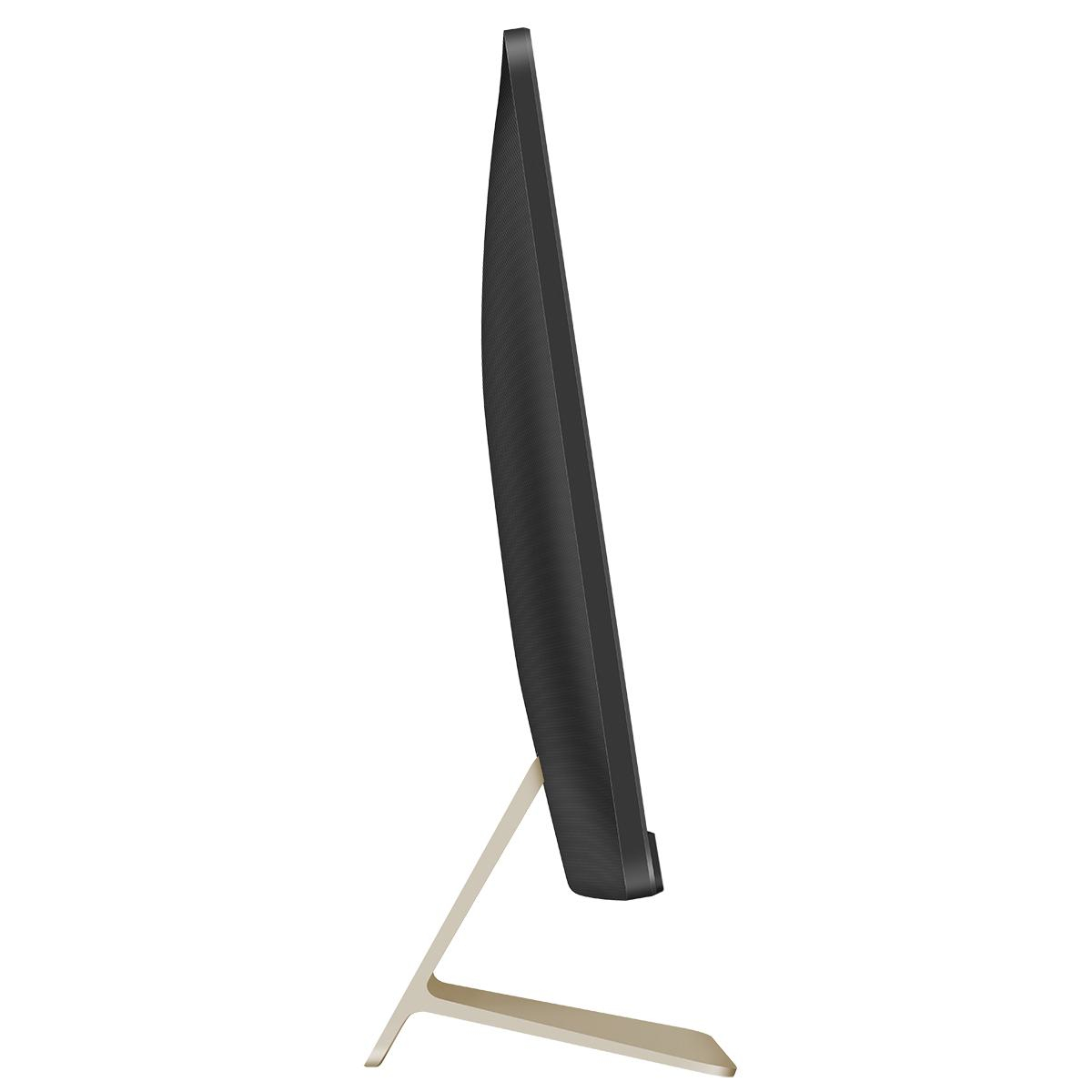

Vivo AiO V241ICGK-BA021T Intel® Core™ i5 i5-7200U
60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 1 TB HDD NVIDIA® GeForce® 930MX Windows
Model V241ICGK-BA021TPart no. 90PT01W1-M00510
142 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® 930MX
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® 930MX
- Brand
- ASUS
- Category
- All-in-One PCs/Workstations
- Model
- V241ICGK-BA021T
- Part number
- 90PT01W1-M00510
- Also known as
- ASUS Vivo AiO V241ICGK-BA021T Intel® Core™ i5 i5-7200U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 1 TB HDD NVIDIA® GeForce® 930MX Windows
Specifications
142 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Screen shape | Flat |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.1 GHz |
| Processor frequency | 2.5 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| System bus rate | 4 GT/s |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2.7 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-down | 7.5 W |
| Bus type | OPI |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 3.0 |
| Processor code | SR2ZU |
| Processor codename | Kaby Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | H0 |
| Tjunction | 100 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3L, DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 8 GB |
| Memory slots | 2 |
| Memory slots type | DIMM |
| Memory clock speed | 2133 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | HDD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® 930MX |
| Discrete graphics card memory | 2 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 620 |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x5916 |
| On-board graphics card OpenGL version | 4.4 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Audio system | Sonic Master |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 1 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 0 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Gold |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 95443 |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Pen
| Specification | Value |
|---|---|
| Pen included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 540 mm |
| Depth (with stand) | 165 mm |
| Height (with stand) | 409 mm |
| Weight (with stand) | 5.1 kg |
| Depth (without stand) | 48 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/UL/CCC/Energy Star/CECP/RCM |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Autonomy mode | No |
| Detachable display | No |
