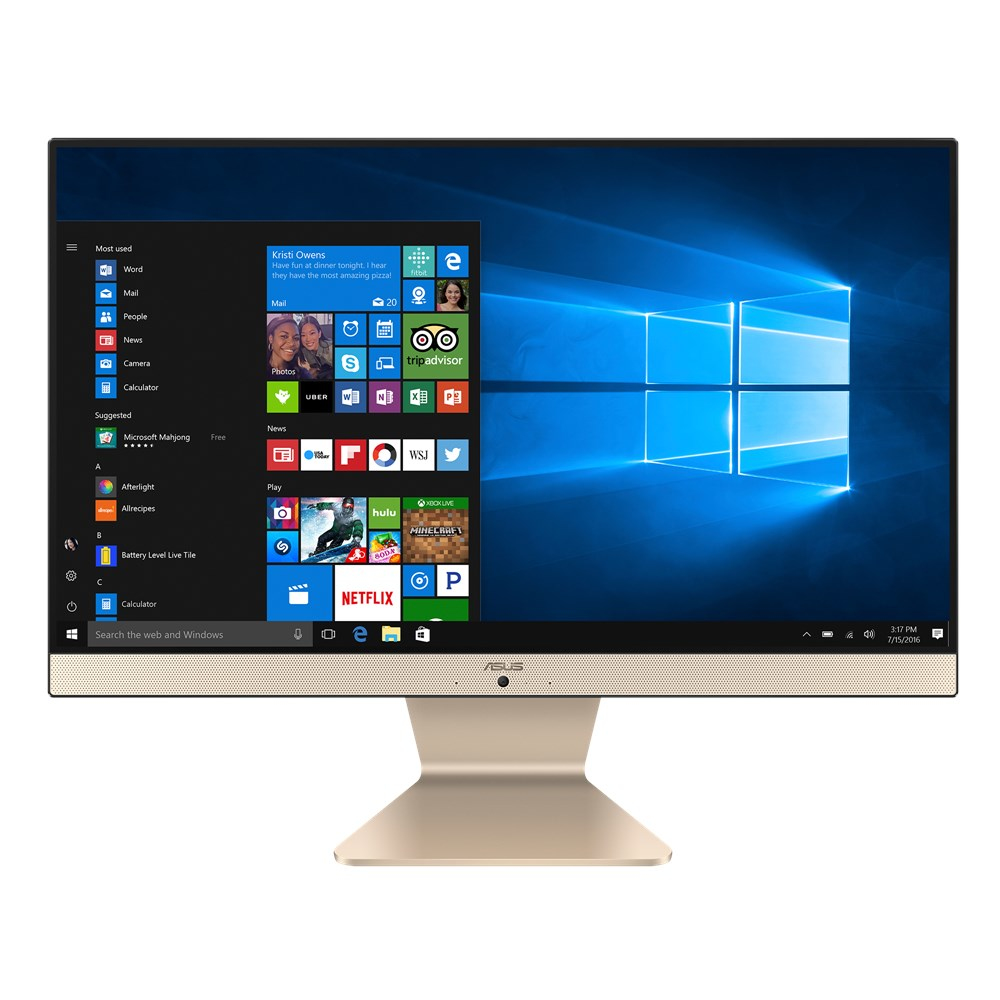

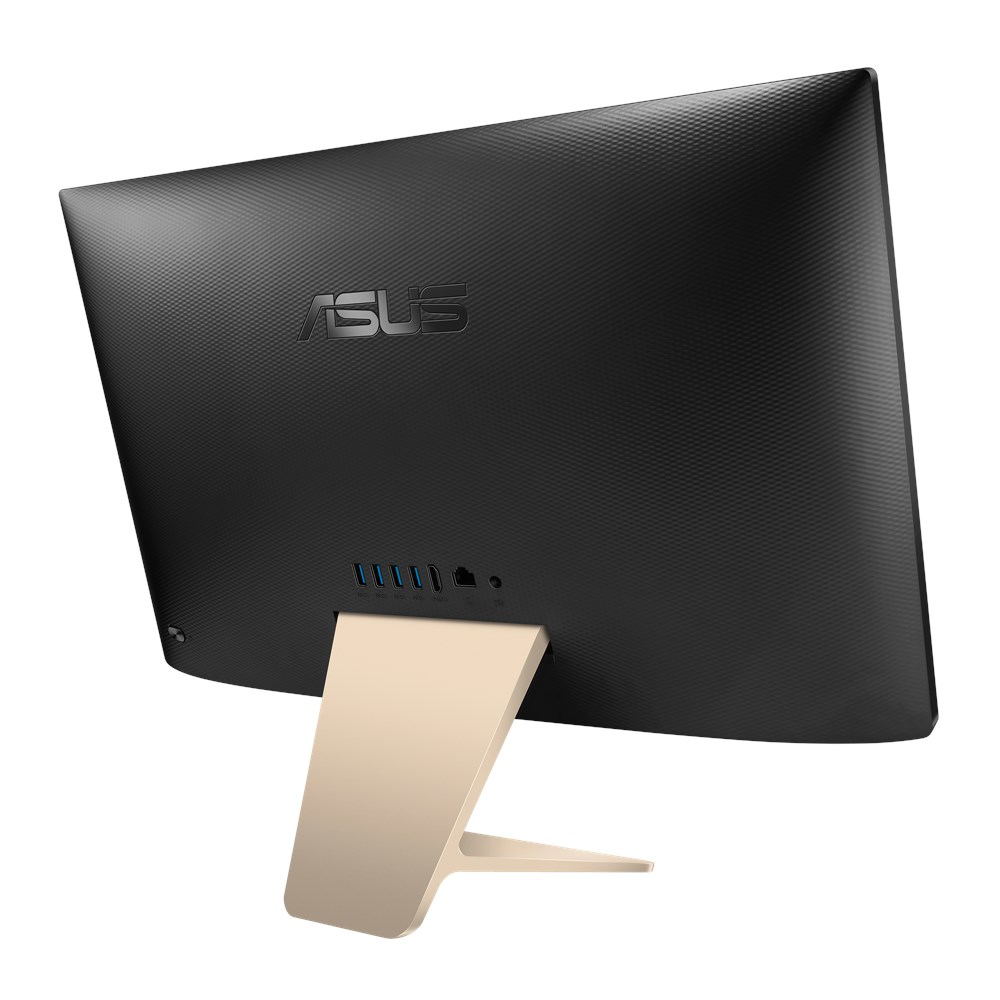

Vivo AiO V222UAK-BA054R Intel® Core™ i3 i3-8130U

54.6 cm (21.5") 1920 x 1080 pixels 4 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black, Gold

Model V222UAK-BA054RPart no. 90PT0261-M04000EAN 4718017200073

134 specifications

Overview

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: V222UAK-BA054R
Part numbers: 90PT0261-M04000, V222UAK-BA054R
EAN / UPC: 4718017200073
Also known as: ASUS Vivo AiO V222UAK-BA054R Intel® Core™ i3 i3-8130U 54.6 cm (21.5") 1920 x 1080 pixels 4 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black, Gold

134 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	8th gen Intel® Core™ i3
Processor model	i3-8130U
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
System bus rate	4 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	15 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	10 W
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Tjunction	100 °C
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	2133,2400 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA
SSD form factor	2.5"
Optical drive type	No

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card 4K support	Yes
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes

Specification	Value
Operating system installed	Windows 10 Pro

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	137977
Processor package size	42 x 42 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
