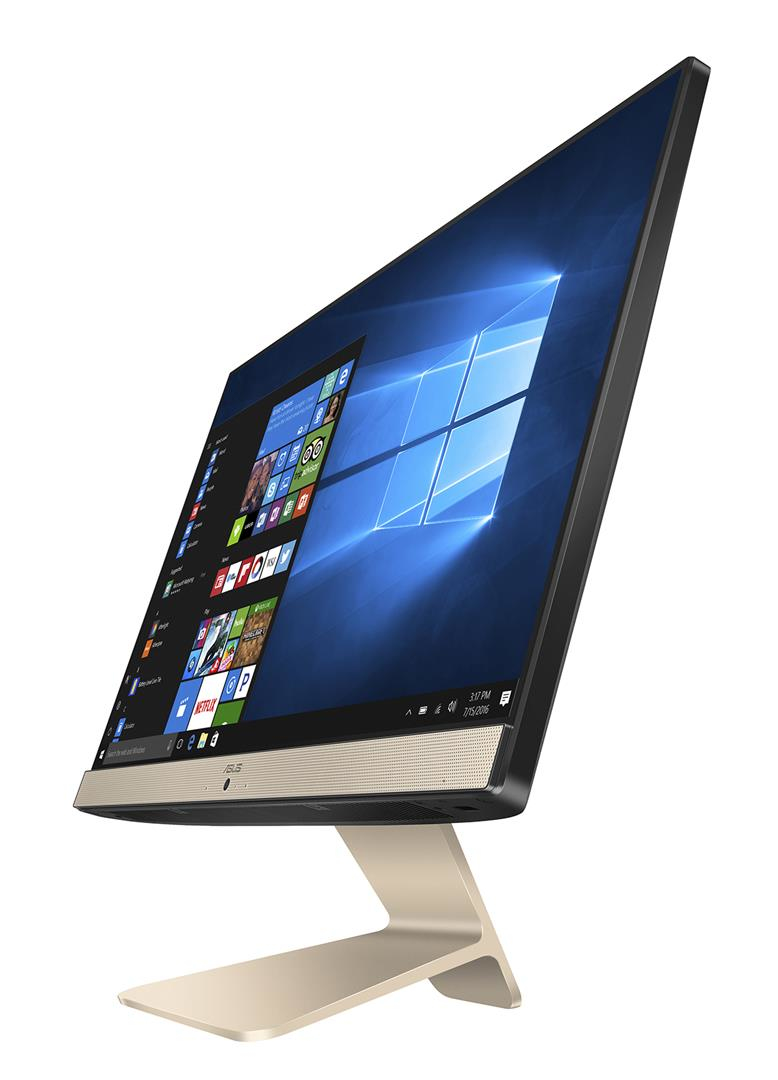

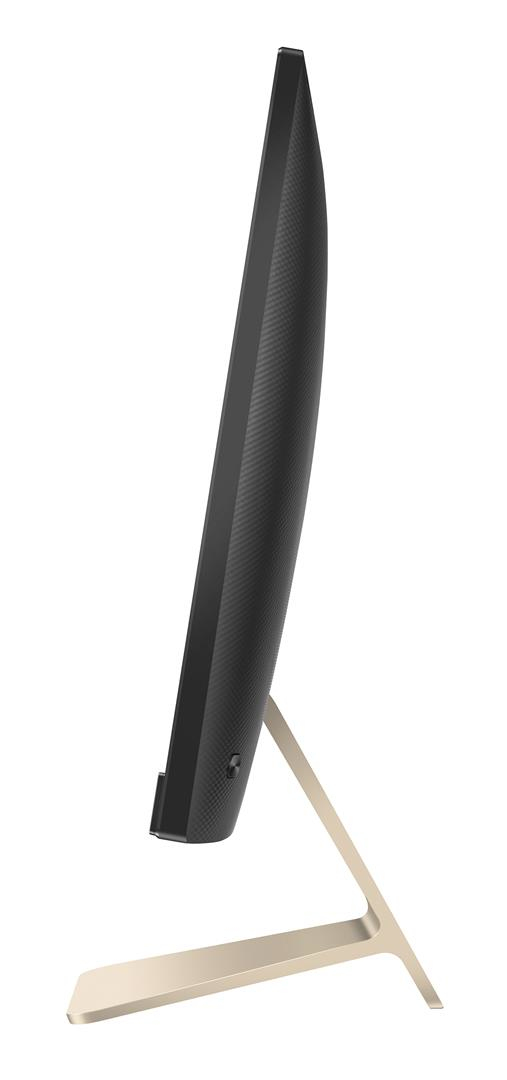

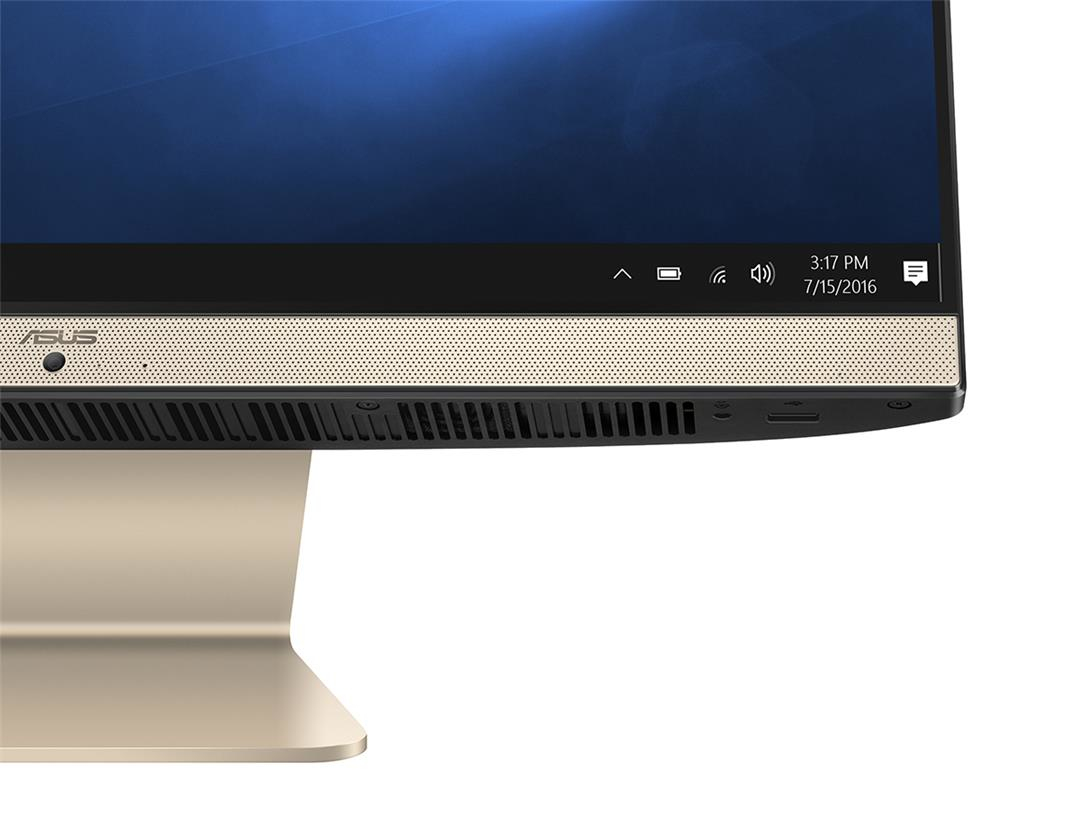

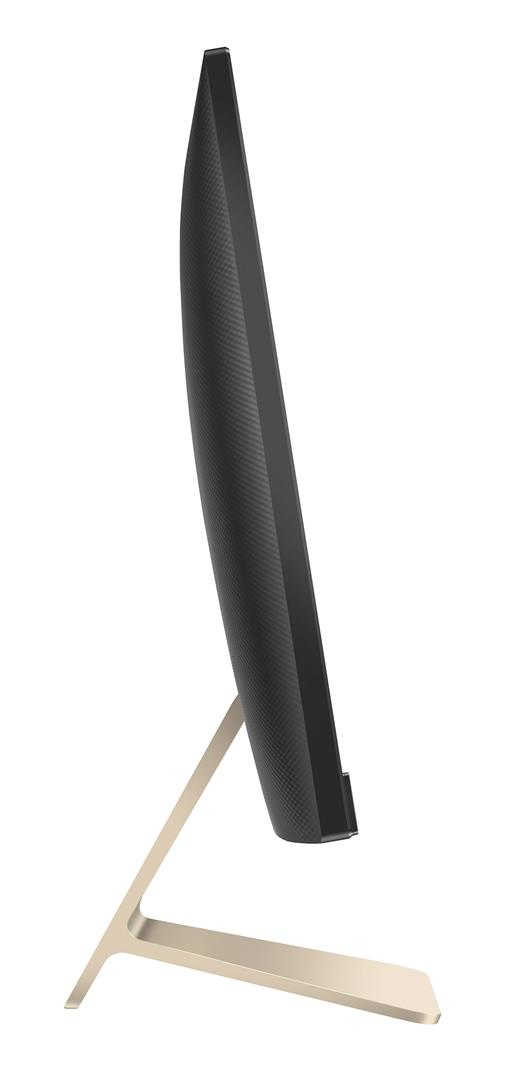

Vivo AiO V222GAK-BA041T Intel® Pentium® J5005

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Black

Model V222GAK-BA041TPart no. 90PT0211-M00750EAN 889349965610

147 specifications

Overview

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: V222GAK-BA041T
Part number: 90PT0211-M00750
EAN / UPC: 889349965610, 4712900965612
Also known as: ASUS Vivo AiO V222GAK-BA041T Intel® Pentium® J5005 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Black

147 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	J5005
Processor cores	4
Processor threads	4
Processor boost frequency	2.8 GHz
Processor frequency	1.5 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1090
Thermal Design Power (TDP)	10 W
Maximum number of PCI Express lanes	6
PCI Express configurations	1x4+1x2, 2x1+1x2+1x2, 4x1
PCI Express slots version	2.0
Processor code	SR3S3
Processor codename	Gemini Lake
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Stepping	B0
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 605
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	250 MHz
On-board graphics card burst frequency	800 MHz
On-board graphics card dynamic frequency (max)	800 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3184
Number of execution units	18

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes
FireWire 800	No
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	0.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	128984
Processor package size	25 x 24 mm
Thermal Monitoring Technologies	Yes
UART	Yes
