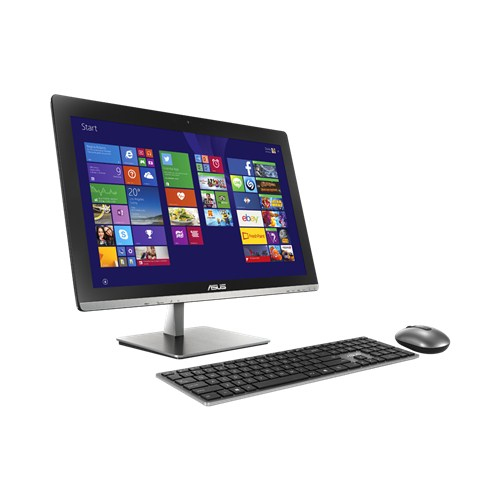

ET ET2323INT-BF119Q Intel® Core™ i7 i7-4770S

58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 840M

Model ET2323INT-BF119QPart no. 90PT0111-M03350EAN 4712900133394

152 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage2 TB
GraphicsNVIDIA® GeForce® GT 840M

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 2 TB
Graphics: NVIDIA® GeForce® GT 840M

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: ET2323INT-BF119Q
Part number: 90PT0111-M03350
EAN / UPC: 4712900133394
Also known as: ASUS ET ET2323INT-BF119Q Intel® Core™ i7 i7-4770S 58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 840M

Specifications

152 specifications in 16 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Tilt angle range	0 - 178°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4770S
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
Thermal Design Power (TDP)	65 W
Bus type	QPI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	1
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR14H
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Stepping	C0
Tcase	71.35 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 8 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	HDD
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	FLU, Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 840M
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	Sonic Master

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
Subwoofer out	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75124
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
