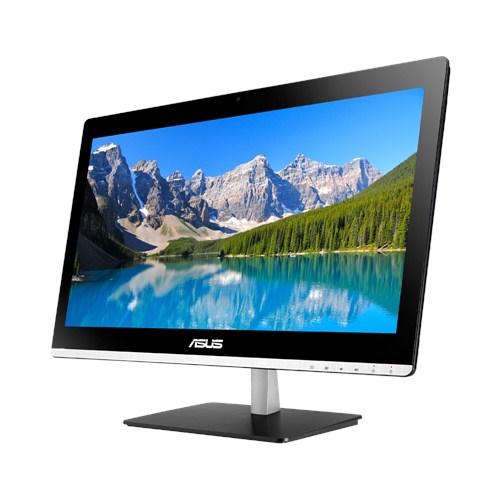

ASUS ET2230INK-BC012R Intel® Pentium® J2900

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3L-SDRAM 1 TB HDD NVIDIA® GeForce® 820M Windows 8 Black

Model ET2230INK-BC012RPart no. 90PT00W1-M04960

145 specifications

Overview

Brand: ASUS
Category: All-in-One PCs/Workstations
Model: ET2230INK-BC012R
Part number: 90PT00W1-M04960
Also known as: ASUS ET2230INK-BC012R Intel® Pentium® J2900 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3L-SDRAM 1 TB HDD NVIDIA® GeForce® 820M Windows 8 Black

145 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	J2900
Processor cores	4
Processor threads	4
Processor boost frequency	2.66 GHz
Processor frequency	2.41 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1170
Thermal Design Power (TDP)	10 W
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Processor code	SR1SB
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Pentium J2000 Series for Desktop
Stepping	B3
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, Memory Stick (MS), SD, SDHC, SDXC

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 820M
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card burst frequency	896 MHz
On-board graphics card dynamic frequency (max)	896 MHz
On-board graphics card DirectX version	11.2

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
FireWire 800	No
Firewire (IEEE 1394) ports	0
Composite video in	0
Mini PCI Express slots	0
PCI Express x16 slots	0
PS/2 ports quantity	0
RF ports quantity	0
Serial ports quantity	0
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Trial software	Office 365

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78868
Processor package size	25 X 27 mm
