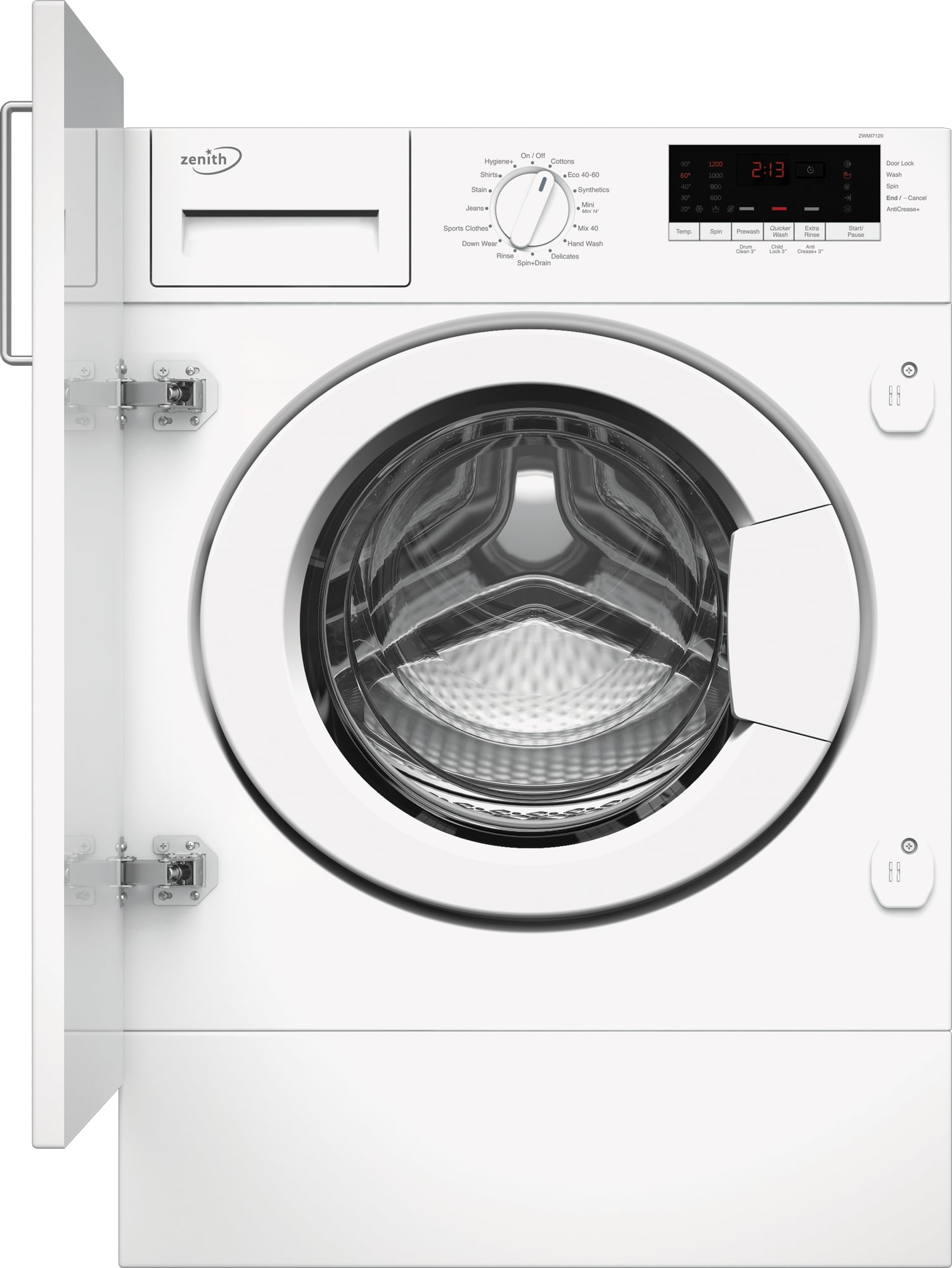

S1 ZWMI7120 Integrated
7kg Washing Machine
Model ZWMI7120EAN 8690842382772
106 specifications
- Energy classC
- Noise71 dB
- Weight67 kg
- ColourWhite
- Appliance placementBuilt-in
- Rated capacity7 kg
Overview
- Energy class
- C
- Noise
- 71 dB
- Weight
- 67 kg
- Colour
- White
- Appliance placement
- Built-in
- Rated capacity
- 7 kg
- Brand
- Zenith
- Category
- Washing Machine
- Model
- ZWMI7120
- Part number
- ZWMI7120
- EAN / UPC
- 8690842382772
- Also known as
- Zenith S1 ZWMI7120 Integrated 7kg Washing Machine
Specifications
106 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Loading type | Front-load |
| Product colour | White |
| Custom panel-ready | Yes |
| Built-in display | Yes |
| Display type | LED |
| Control type | Rotary |
| Door hinge | Left |
| Door colour | White |
| Door opening angle | 125° |
| Drum material | Stainless steel |
| Outlet hose length | 1.3 m |
| Motor type | Brushless |
| Viewing window | Yes |
| Water fill | Cold |
| Door panel included | Yes |
| Door attachment type | Hinges |
Performance
| Specification | Value |
|---|---|
| Rated capacity | 7 kg |
| Maximum spin speed | 1200 RPM |
| Spin-drying class | B |
| Number of washing programs | 15 |
| Noise emission class | A |
| Noise level (spin) | 71 dB |
| Delayed start timer | Yes |
| Delay start (max) | 19 h |
| Cycle time (max) | 207 min |
| Cycle time (quick washing program, small load) | 14 min |
| Cycle time (quick washing program) | 14 min |
| Washing programs | Cotton, Quick, Jeans/denim, Delicate/silk, Hand/wool, Down wear/duvet, Eco 40-60°C, Quick 14min, Hand, Hygiene+, Mix, Rinse, Blouse/shirt, Spin/drain, Sport, Stain care, Synthetics, Pre-wash, Extra rinse |
| Half-load | Yes |
| Rinse hold | Yes |
| Rinse Plus function | Yes |
| Rinsing effectiveness | 4.9 g/kg |
| Adjustable spin speed | Yes |
| Load balancing system | Yes |
| Add garment (pause) function | Yes |
| Adjustable temperature | Yes |
| Anti-Crease function | Yes |
| Built-in spirit level | Yes |
| Fast+ function | Yes |
| Residual moisture | 52% |
| Smartphone/tablet remote support | No |
| Stain remover option | Yes |
| Minimum water flow pressure | 100 kPa |
| Maximum water flow pressure | 1000 kPa |
Ergonomics
| Specification | Value |
|---|---|
| Child lock | Yes |
| Sensor program selection | Yes |
| Automatic dosing system | No |
| Self-cleaning | Yes |
| Drum Clean | Yes |
| Liquid detergent container | No |
| Remaining time indication | Yes |
| LED program stage indicator | Yes |
| Adjustable feet | Yes |
| Feet adjustment | 1.5 cm |
| Number of adjustable feet | 4 |
| On/off button | Yes |
| Stackable | No |
| Feet adjustment type | Front & Rear |
| Feet extension (min) | 0 mm |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | C |
| Energy efficiency scale | A to G |
| Energy consumption per 100 cycles | 59 kWh |
| Energy consumption washing per cycle | 0.59 kWh |
| Water consumption per cycle | 41 L |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 0.5 W |
| Connected load | 2200 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current | 10 A |
| Power plug current | 13 A |
| Power plug type | Type G |
| Energy efficiency index (EEI) | 68.5 |
| Washing efficiency index (EU 2017/1369) | 1.04 |
| Washing efficiency index (half load) | 1.04 |
| Washing efficiency index (quarter load) | 1.04 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 560 mm |
| Height | 820 mm |
| Weight | 67 kg |
| Door diameter | 34 cm |
| Installation compartment width | 60 cm |
| Installation compartment depth | 56 cm |
| Installation compartment height | 82 cm |
| Door opening diameter | 34 cm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Packaging content | Energy label, hoses |
| Package width | 650 mm |
| Package depth | 600 mm |
| Package height | 880 mm |
| Package weight | 68 kg |
Other features
| Specification | Value |
|---|---|
| Hose diameter | 2 cm |
| Hose extender compatible | Yes |
| Installation notes | Remove Polly block, Remove Transit Bolts |
| Number of programs | 15 |
| Professional installation required | Yes |
| Required tools | Standard tool box |
| Spare part retention | 7 year(s) |
| Product series | S1 |
| Washing class | A |
Logistics data
| Specification | Value |
|---|---|
| Expanded Polystyrene (EPS) packaging weight | 1.13 kg |
| Paper packaging weight | 10 g |
| Plastic packaging weight | 207 g |
| Commodity code | 84501190 |
| Commodity Classification Automated Tracking System (CCATS) | 84501190 |
