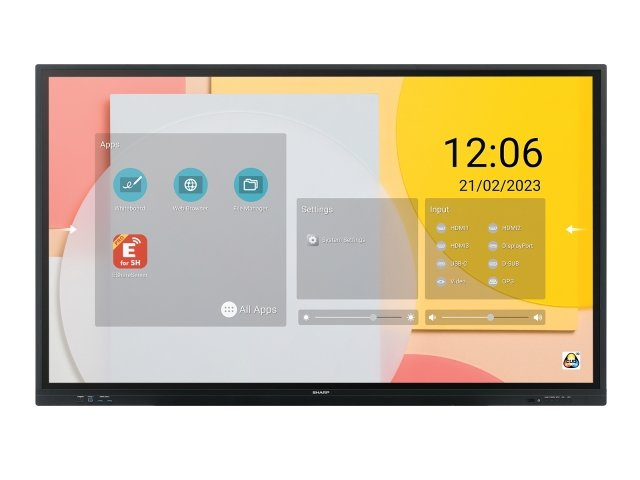

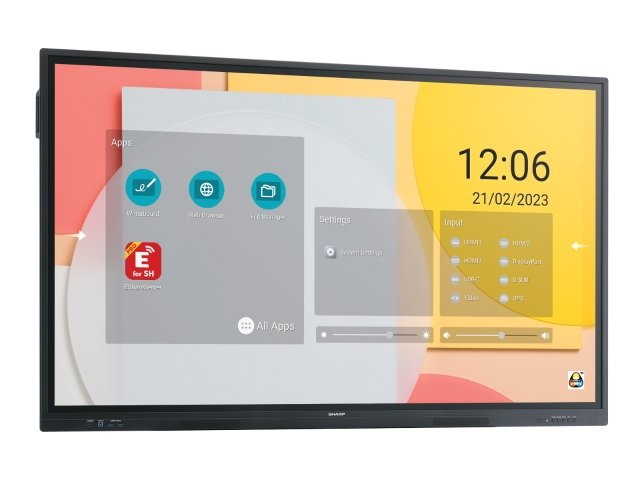

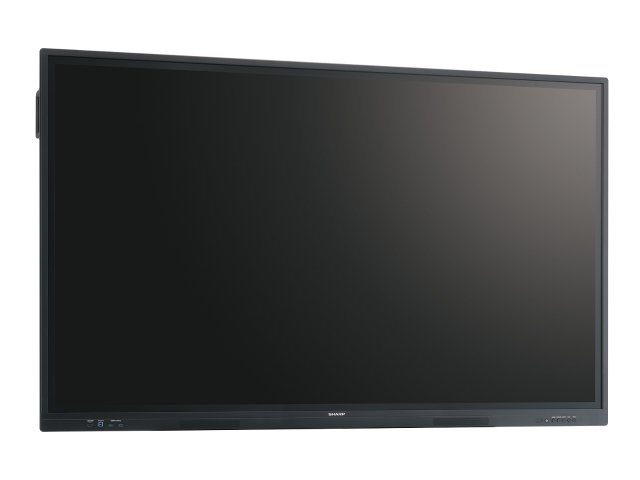

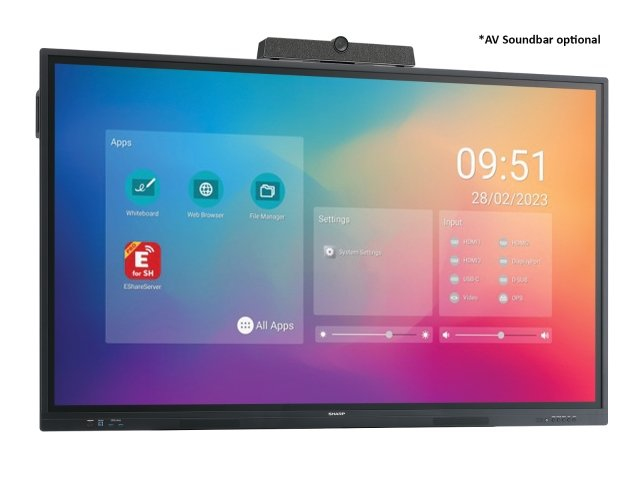

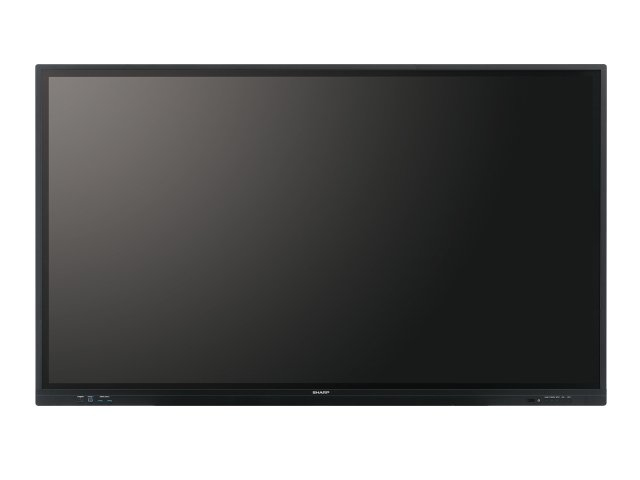

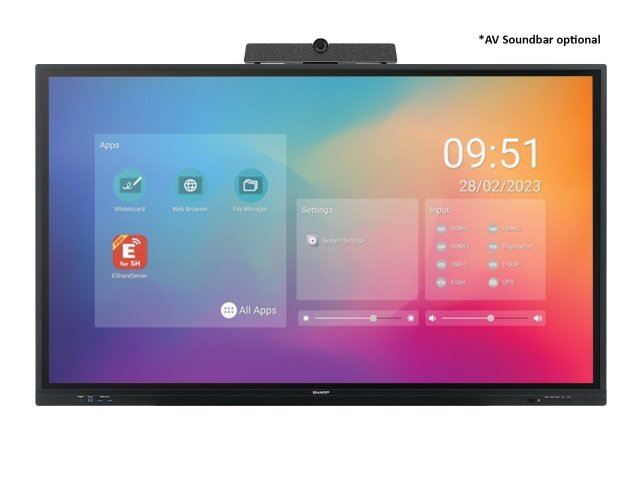

PN-LC652 video conference monitor
165.1 cm (65") LCD 3840 x 2160 pixels 4K Ultra HD
Model PN-LC652EAN 074000067257
79 specifications
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- ProcessorARM Cortex
- Memory8 GB
- Storage16 GB
- OSAndroid 11
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- Processor
- ARM Cortex
- Memory
- 8 GB
- Storage
- 16 GB
- OS
- Android 11
- Brand
- Sharp
- Category
- Video Conference Monitor
- Model
- PN-LC652
- Part numbers
- PN-LC652, PNLC652
- EAN / UPC
- 074000067257, 4550556100359, 5715063263532
- Also known as
- Sharp PN-LC652 video conference monitor 165.1 cm (65") LCD 3840 x 2160 pixels 4K Ultra HD
Specifications
79 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 165.1 cm (65") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display brightness | 450 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Display diagonal (metric) | 163.9 cm |
| Surface hardness | 8 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 5.32 cm |
| Bezel width (side) | 2.19 cm |
| Bezel width (top) | 2.19 cm |
| Mounting type | Wall |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB ports quantity | 6 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 2 |
| Audio (L/R) in | 1 |
| RS-232 interface | Yes |
| USB port | Yes |
Computer system
| Specification | Value |
|---|---|
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| Internal memory | 8 GB |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 11 |
Performance
| Specification | Value |
|---|---|
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 390 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Display width | 1511.6 mm |
| Display depth | 85.9 mm |
| Display height | 917.9 mm |
| Display weight | 38.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1660 mm |
| Package depth | 225 mm |
| Package height | 1010 mm |
| Package weight | 49 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Power adapter included | Yes |
| Cables included | AC, USB |
Certificates
| Specification | Value |
|---|---|
| Certification | CE; FCC; RCM; REACH; RoHS; UL/C-UL |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
