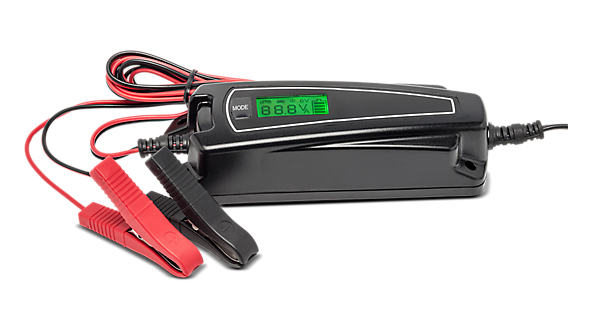

MD 15526
Model MD 15526Part no. 50053190A1EAN 4015625155260
19 specifications
- ColourBlack, Red
- Charging voltage6/12 V
- Width195 mm
Overview
- Colour
- Black, Red
- Charging voltage
- 6/12 V
- Width
- 195 mm
- Brand
- MEDION
- Category
- Vehicle Battery Charger
- Model
- MD 15526
- Part number
- 50053190A1
- EAN / UPC
- 4015625155260
- Also known as
- MEDION MD 15526 6/12 V Black, Red
Specifications
19 specifications in 2 groups
Features
| Specification | Value |
|---|---|
| Charging voltage | 6/12 V |
| Output current | 1 A |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Built-in display | Yes |
| Display type | LCD |
| Charging cable length | 1.9 m |
| Power cable length | 1.8 m |
| Power protection features | Overcharge |
| Battery capacity (max) | 120 Ah |
| Battery capacity (min) | 1.2 Ah |
| Fault diagnose system | Yes |
| Input current | 0.6 A |
| International Protection (IP) code | IP65 |
| On/off switch | No |
| Product colour | Black, Red |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 68 mm |
| Height | 47 mm |
