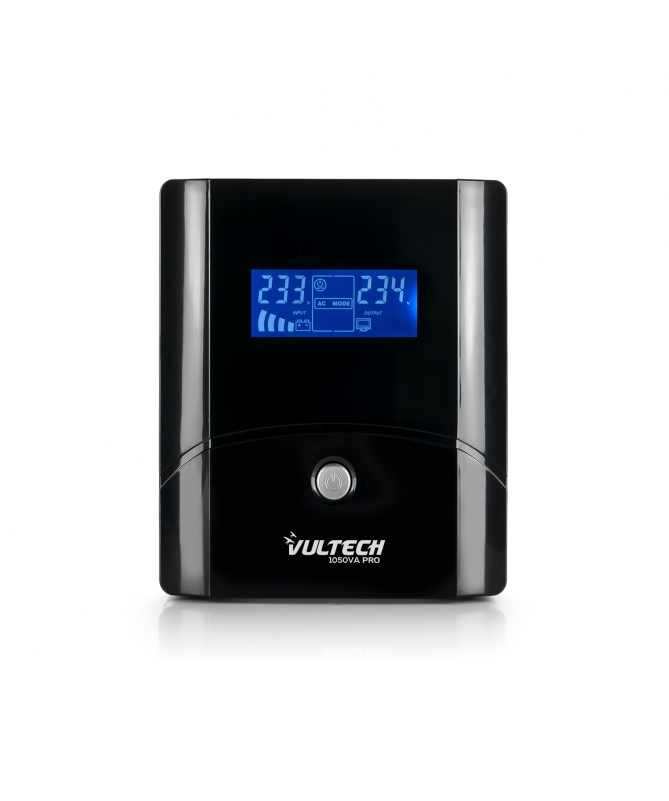

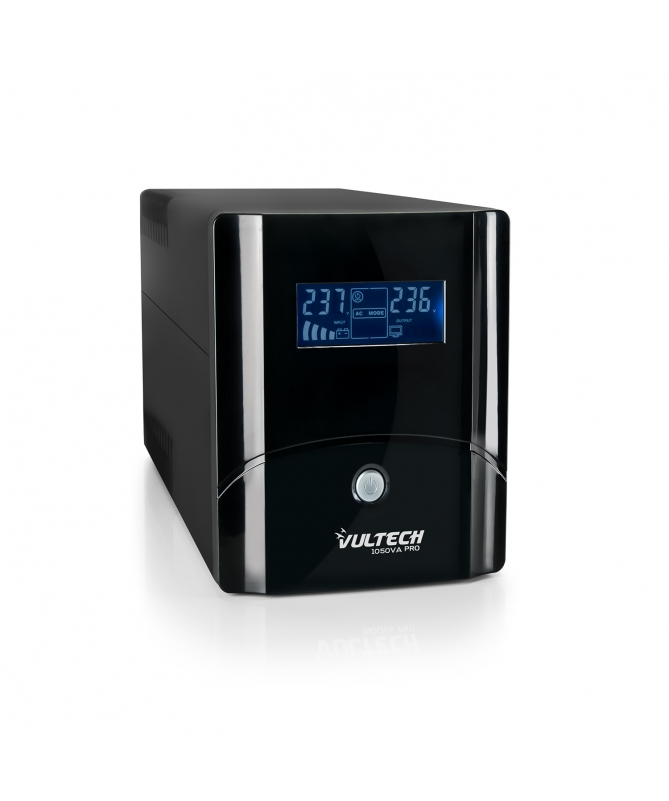

Vultech UPS1050VA-PRO uninterruptible power supply (UPS) Line-Interactive 1.05 kVA
Vultech

UPS1050VA-PRO uninterruptible power supply (UPS) Line-Interactive 1.05 kVA

560 W 2 AC outlet(s)

Model UPS1050VA-PROEAN 8052780300490

35 specifications
  • Battery9 Ah
  • TypeTower
  • Weight5.5 kg
  • ColourBlack, Silver
  • UPS topologyLine-Interactive
  • AC outlet typesType F
See all specifications

Overview

Battery
9 Ah
Type
Tower
Weight
5.5 kg
Colour
Black, Silver
UPS topology
Line-Interactive
AC outlet types
Type F
Brand
Vultech
Model
UPS1050VA-PRO
Part number
UPS1050VA-PRO
EAN / UPC
8052780300490
Also known as
Vultech UPS1050VA-PRO uninterruptible power supply (UPS) Line-Interactive 1.05 kVA 560 W 2 AC outlet(s)

Specifications

35 specifications in 6 groups

Features

SpecificationValue
UPS topologyLine-Interactive
Output power capacity1.05 kVA
Output power560 W
WaveformPseudo sine
Input operation voltage (min)145 V
Input operation voltage (max)290 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)220 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Response time6 ms
Power factor0.53
Power protection featuresOverload

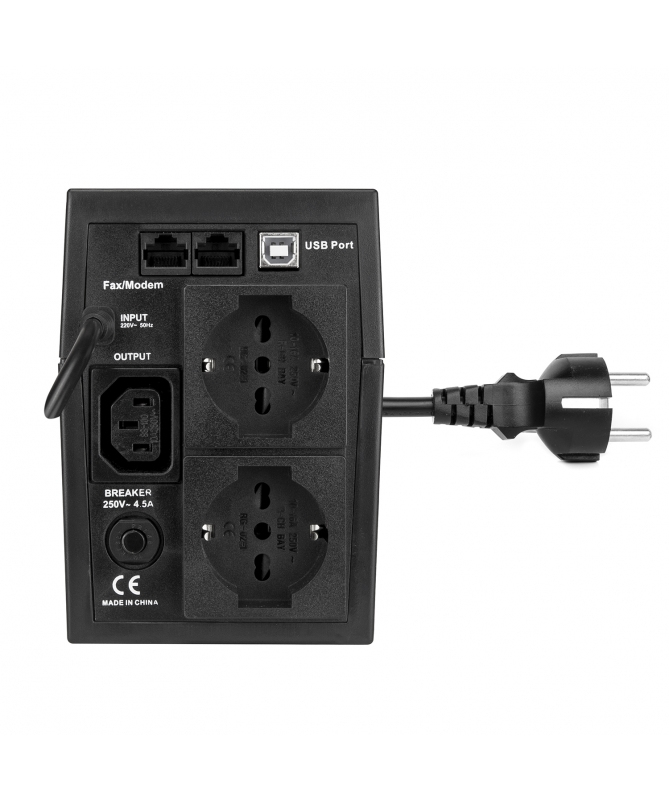

Ports & interfaces

SpecificationValue
AC outlet typesType F
Power plugC13 coupler
AC outlets quantity2 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Modem (RJ-11) ports2

Battery

SpecificationValue
Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported1
Typical backup time at full load20 min
Battery recharge time6 h

Design

SpecificationValue
Form factorTower
Product colourBlack, Silver
Cooling typePassive

Operational conditions

SpecificationValue
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

SpecificationValue
Width95 mm
Depth310 mm
Height140 mm
Weight5.5 kg
