VIDA Armour 2000VA
VIDA

Armour 2000VA

Model Armour 2000VAPart no. ARM2000EAN 5056733100529

44 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeDesktop
  • Weight11.7 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Desktop
Weight
11.7 kg
Colour
Black
UPS topology
Line-Interactive
Brand
VIDA
Model
Armour 2000VA
Part number
ARM2000
EAN / UPC
5056733100529
Also known as
VIDA Armour 2000VA uninterruptible power supply (UPS) Line-Interactive 2 kVA 1600 W 5 AC outlet(s)

Specifications

44 specifications in 10 groups

Features

SpecificationValue
UPS topologyLine-Interactive
Output power capacity2 kVA
Output power1600 W
WaveformPure sine
Input operation voltage (min)230 V
Input operation voltage (max)240 V
Output operation voltage (min)230 V
Output operation voltage (max)240 V
Transfer time (Line Mode to Battery Mode)8 ms
Noise level50 dB
Surge protectionYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes

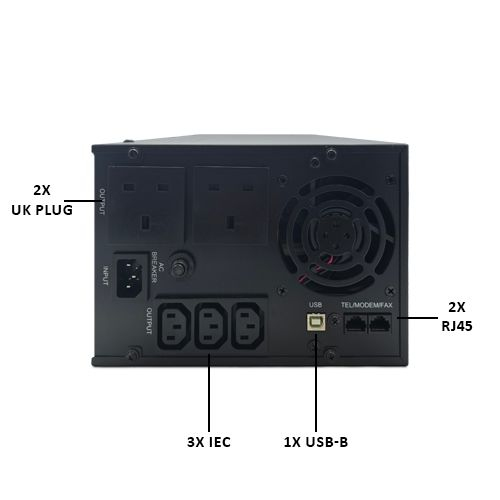

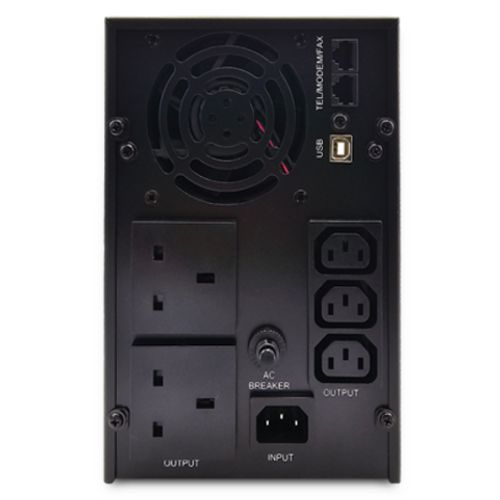

Ports & interfaces

SpecificationValue
AC outlet typesC14 coupler, Type G (BS 1363)
Power plugType G
AC outlets quantity5 AC outlet(s)
USB portYes
USB port typeUSB Type-B
Ethernet LAN (RJ-45) ports2

Battery

SpecificationValue
Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of batteries included3 pc(s)
Number of batteries supported3
Battery recharge time8 h
Cold startYes

Design

SpecificationValue
Form factorDesktop
Product colourBlack
Display typeLCD

Operational conditions

SpecificationValue
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%

Packaging content

SpecificationValue
Cables includedUSB cable
ManualYes

Certificates

SpecificationValue
Compliance certificatesUKCA, CE

Weight & dimensions

SpecificationValue
Width144 mm
Depth410 mm
Height215 mm
Weight11.7 kg

Packaging data

SpecificationValue
Package width236 mm
Package depth427 mm
Package height316 mm
Package weight19.8 kg
Package typeBox

Logistics data

SpecificationValue
Country of originChina
