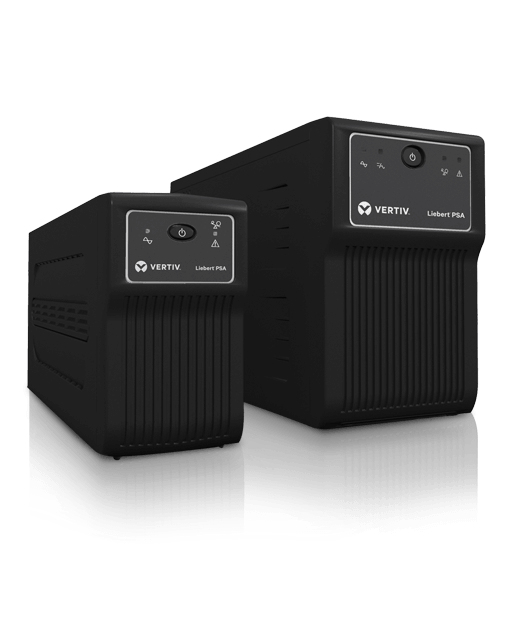

Vertiv Liebert PSA 500VA

Vertiv Liebert PSA 500VA

Model Liebert PSA 500VAPart no. PSA500MT3-230UEAN 835514002840

52 specifications
  • Battery7 Ah
  • TypeTower
  • Weight5.4 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler, IEC 320
See all specifications

Overview

Battery
7 Ah
Type
Tower
Weight
5.4 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
C13 coupler, IEC 320
Brand
Vertiv
Model
Liebert PSA 500VA
Part number
PSA500MT3-230U
EAN / UPC
835514002840, 835514007388
Also known as
Vertiv Liebert PSA 500VA uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 4 AC outlet(s)

Specifications

52 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power300 W
WaveformStepwise
Input operation voltage (min)160 V
Input operation voltage (max)287 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Response time6 ms
Number of input phases1
Number of output phases1
Power factor0.6
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesC13 coupler, IEC 320
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial ports quantity1
Ethernet LAN (RJ-45) ports2

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity7 Ah
Battery voltage12 V
Number of batteries supported1
Typical backup time at full load3 min
Typical backup time at half load10 min
Battery recharge time6 h

Design

Form factorTower
Product colourBlack
Cooling typeActive
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m

Certificates

Compliance certificatesRoHS
CertificationCE

Safety regulation & standards

SafetyIEC/EN/AS 62040-1-1

Weight & dimensions

Width99 mm
Depth356 mm
Height171 mm
Weight5.4 kg

Packaging data

Package width177 mm
Package depth443 mm
Package height253 mm
Package weight6.8 kg

Logistics data

Harmonized System (HS) code85078000

Other features

Output connections4 x IEC 320 C13
Dimensions (WxDxH)95 x 356 x 171 mm
Nominal output voltage230 V
