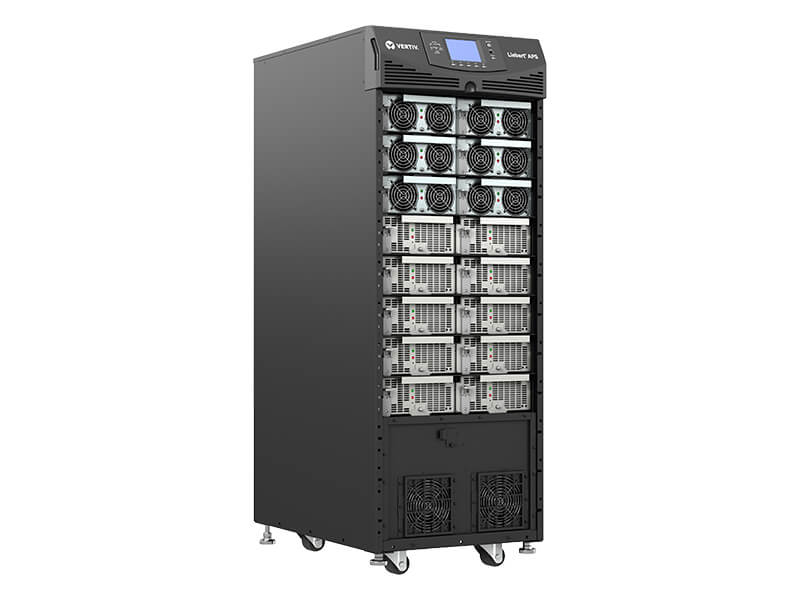

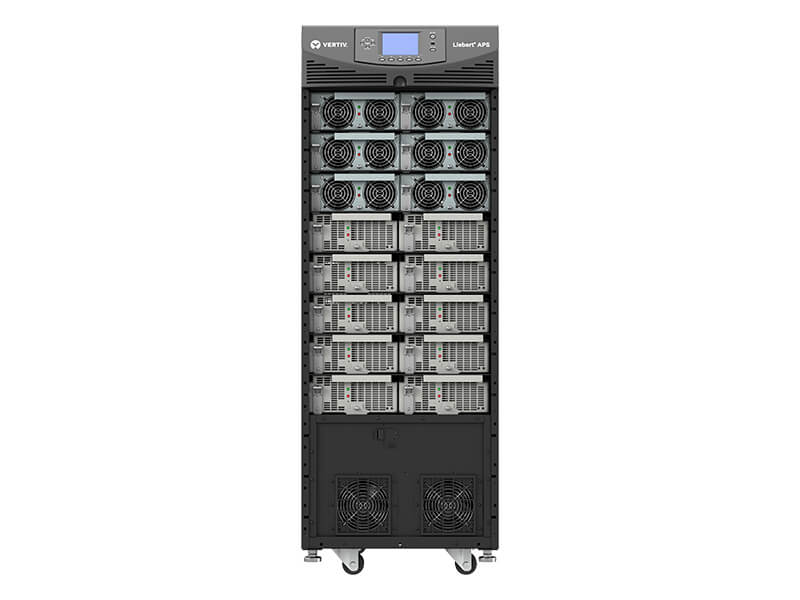

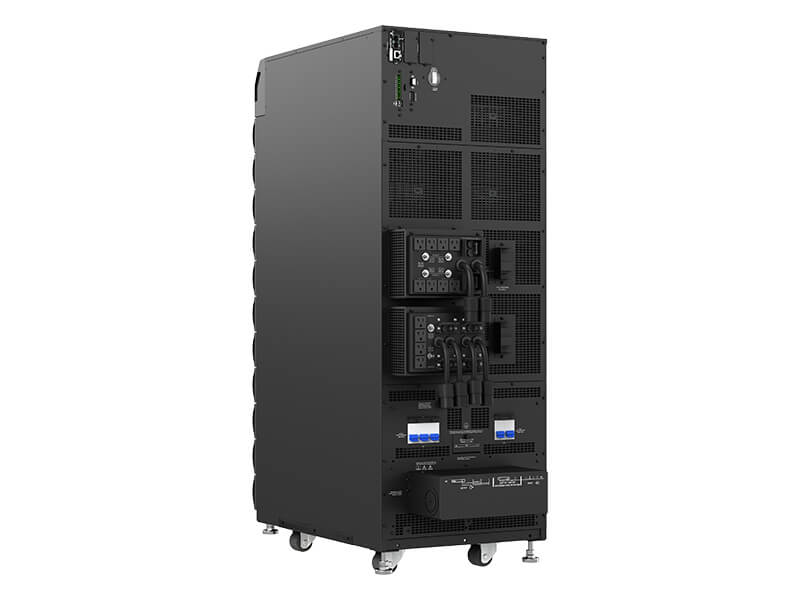

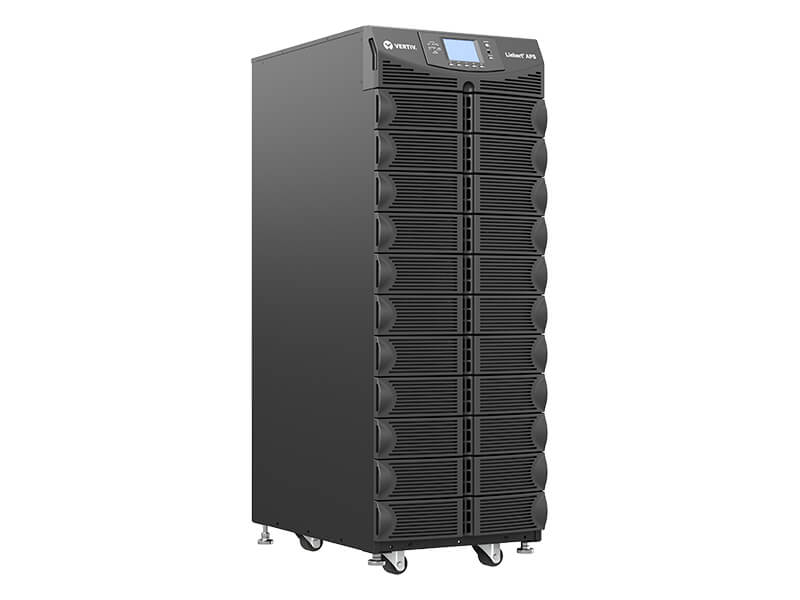

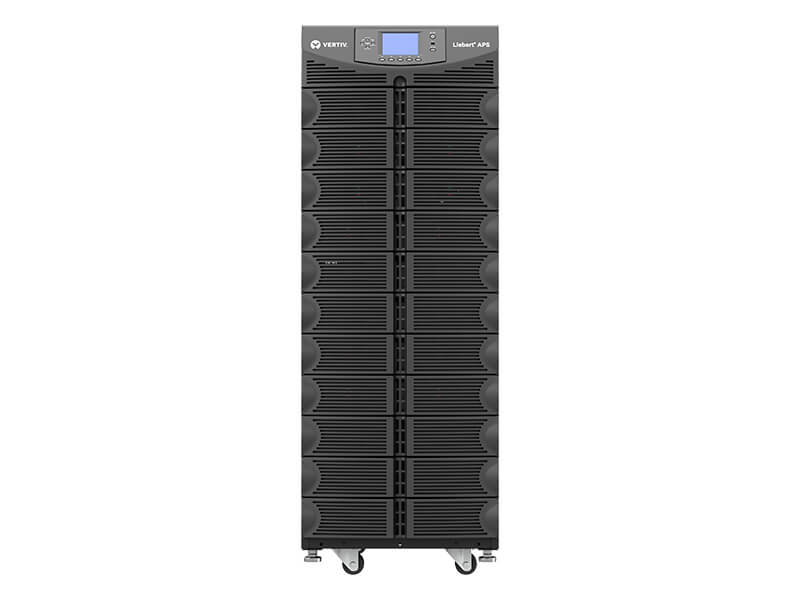

Vertiv APS AS4
Vertiv

APS AS4

Model APS AS4Part no. AS4D0NCXGNNXLKB

27 specifications
  • Weight417.3 kg
  • ColourBlack
  • Output power capacity20 kVA
  • Battery voltage1.67 V
  • Operating temperature (T-T)0 - 40 °C
  • Width440 mm
See all specifications

Overview

Weight
417.3 kg
Colour
Black
Output power capacity
20 kVA
Battery voltage
1.67 V
Operating temperature (T-T)
0 - 40 °C
Width
440 mm
Brand
Vertiv
Model
APS AS4
Part number
AS4D0NCXGNNXLKB
Also known as
Vertiv Liebert APS AS4 uninterruptible power supply (UPS) 20 kVA 18000 W

Specifications

27 specifications in 8 groups

Features

Output power capacity20 kVA
Output power18000 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)100 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation±3%
Heat dissipation7965 BTU/h
Efficiency89.7%
Input power factor0.99
Power protection featuresOverload

Battery

Battery voltage1.67 V
Typical backup time at full load300 min

Design

Product colourBlack
Cooling typeActive

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

Compliance certificatesREACH, RoHS, WEEE

Safety regulation & standards

SafetyIEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1

Weight & dimensions

Width440 mm
Depth850 mm
Height1240 mm
Weight417.3 kg

Packaging data

Package weight435.4 kg
