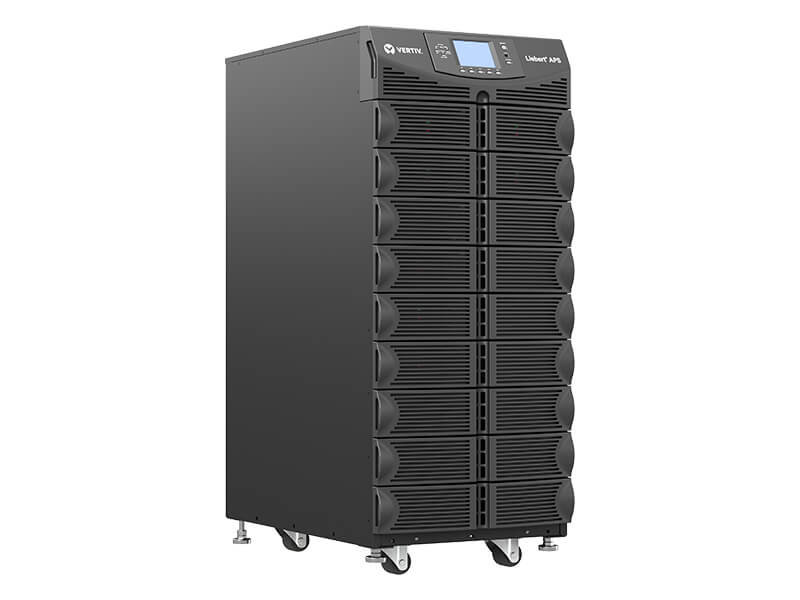

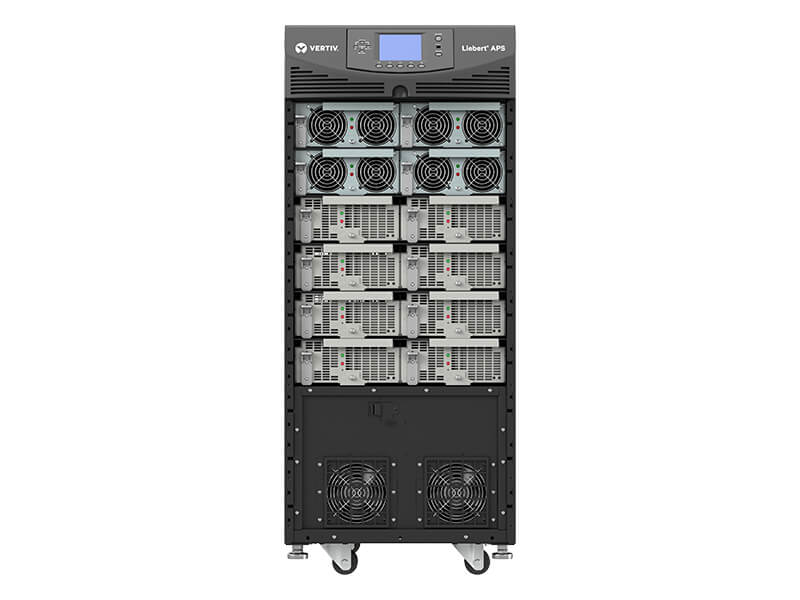

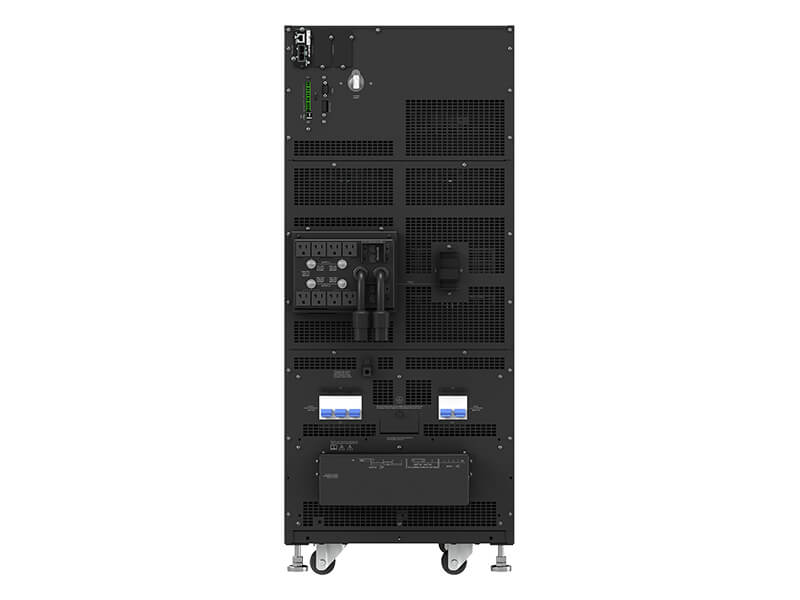

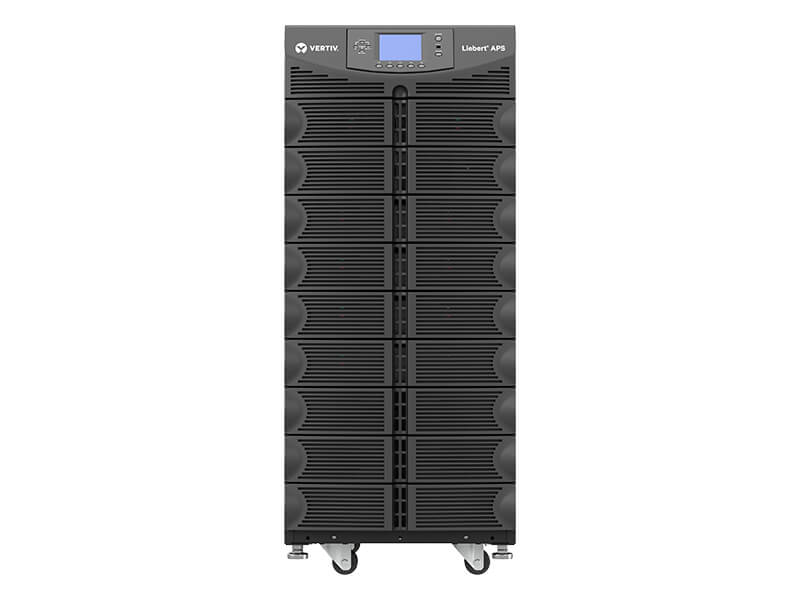

Vertiv APS AS3
Vertiv

APS AS3

Model APS AS3Part no. AS3C0NCXGNNXLKB

28 specifications
  • TypeRackmount/Tower
  • Weight360.6 kg
  • ColourBlack
  • Output power capacity15 kVA
  • Battery voltage1.67 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Type
Rackmount/Tower
Weight
360.6 kg
Colour
Black
Output power capacity
15 kVA
Battery voltage
1.67 V
Operating temperature (T-T)
0 - 40 °C
Brand
Vertiv
Model
APS AS3
Part numbers
AS3C0NCXGNNXLKB, AS3A0NCVGNNXLKB, AS3B0NCYGNNXLKB
Also known as
Vertiv Liebert APS AS3 uninterruptible power supply (UPS) 15 kVA 13500 W

Specifications

28 specifications in 8 groups

Features

Output power capacity15 kVA
Output power13500 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)100 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation±3%
Heat dissipation5528 BTU/h
Efficiency89.9%
Input power factor0.99
Power protection featuresOverload

Battery

Battery voltage1.67 V
Typical backup time at full load300 min

Design

Form factorRackmount/Tower
Product colourBlack
Cooling typeActive

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

Compliance certificatesREACH, RoHS, WEEE

Safety regulation & standards

SafetyIEC/EN/AS 62040-1:2008, UL 1778 4th Ed & CSA 22.2 No. 107.1

Weight & dimensions

Width440 mm
Depth800 mm
Height1060 mm
Weight360.6 kg

Packaging data

Package weight378.7 kg
