Premium Online
Model Premium OnlinePart no. NXGCOL3K6RT6X9EAN 8054320843559
40 specifications
- Noise45 dB

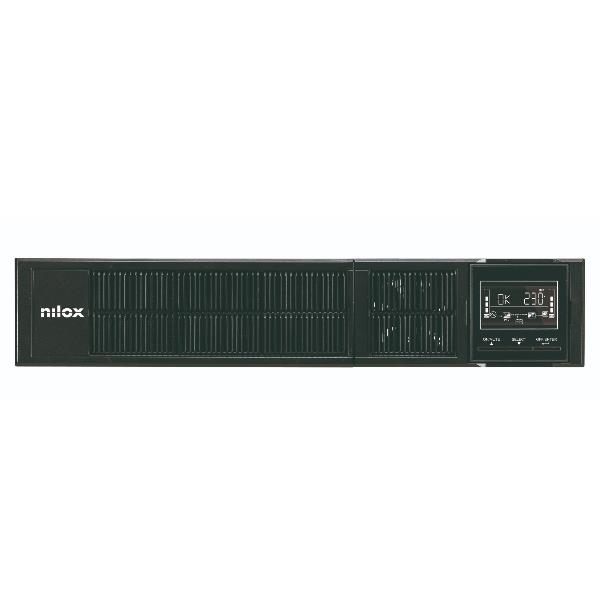

- TypeRackmount
- Weight29 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
- AC outlet typesC13 coupler
Overview
- Noise
- 45 dB
- Type
- Rackmount
- Weight
- 29 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- AC outlet types
- C13 coupler
- Brand
- Nilox
- Model
- Premium Online
- Part numbers
- NXGCOL3K6RT6X9, NXGCOL2K4RT4X9
- EAN / UPC
- 8054320843559, 8054320843542
- Also known as
- Nilox Premium Online uninterruptible power supply (UPS) Double-conversion (Online) 3.6 kVA 3240 W 8 AC outlet(s)
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3.6 kVA |
| Output power | 3240 W |
| Waveform | Sine |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power factor | 0.9 |
| Noise level | 45 dB |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| RS-232 ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lead-Calcium (Pb-Ca) |
| Typical backup time at full load | 10 min |
| Hot-swap battery | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
| Cooling type | Active |
| Built-in fan | Yes |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 29 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 760 mm |
| Package depth | 600 mm |
| Package height | 200 mm |
