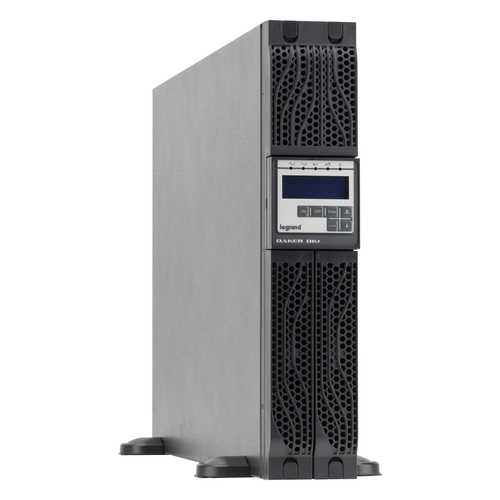

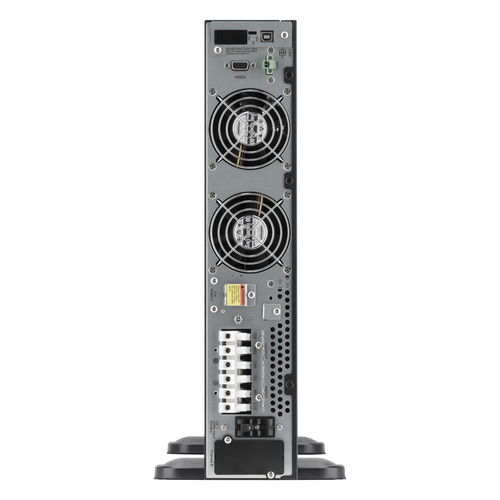

Legrand UPS DAKER DK PLUS 5000VA NO BATT

Legrand UPS DAKER DK PLUS 5000VA NO BATT

Model UPS DAKER DK PLUS 5000VA NO BATTPart no. 310175EAN 3414970826978

62 specifications
  • Noise50 dB
  • TypeRackmount
  • Weight25 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
See all specifications

Overview

Noise
50 dB
Type
Rackmount
Weight
25 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Brand
Legrand
Model
UPS DAKER DK PLUS 5000VA NO BATT
Part number
310175
EAN / UPC
3414970826978
Also known as
Legrand Daker DK+ UPS DAKER DK PLUS 5000VA NO BATT uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 1 AC outlet(s)

Specifications

62 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity5 kVA
Output power5000 W
WaveformSine
Input operation voltage (min)176 V
Input operation voltage (max)280 V
Input frequency47/63 Hz
Output operation voltage (min)228 V
Output operation voltage (max)232 V
Output frequency50/60 Hz
Output voltage regulation1%
Surge energy rating1900 J
Number of input phases1
Number of output phases1
Efficiency94%
Efficiency (ECO mode)97%
Power factor1
Input power factor0.99
Output power factor1
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputNo
Auto shut-offNo
Detachable power cordYes
Power source typeAC

Ports & interfaces

AC outlet typesHardwire
Power plugHardwire
AC outlets quantity1 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Display typeLCD
LED indicatorsStatus
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

CertificationEN 62040-1, EN 62040-2, EN 62040-3

Weight & dimensions

Width88 mm
Depth680 mm
Height440 mm
Weight25 kg

Packaging data

Package width88 mm
Package depth26.3 mm
Package height440 mm
Package weight18.5 kg

Logistics data

Products per pallet12 pc(s)
Pallet net height152 cm
Pallet net length100 cm
Pallet net weight233.4 kg
Pallet net width120 cm
Master (outer) case width560 mm
Master (outer) case length872 mm
Master (outer) case height316 mm
Master (outer) case gross weight19.4 kg
Products per master (outer) case1 pc(s)
