Legrand UPS DAKER DK PLUS 3000VA

Legrand UPS DAKER DK PLUS 3000VA

Model UPS DAKER DK PLUS 3000VAPart no. 310172EAN 3414970826947

65 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount
  • Weight30 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount
Weight
30 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
Legrand
Model
UPS DAKER DK PLUS 3000VA
Part number
310172
EAN / UPC
3414970826947
Also known as
Legrand Daker DK+ UPS DAKER DK PLUS 3000VA uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)

Specifications

65 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)176 V
Input operation voltage (max)280 V
Input frequency47/63 Hz
Output operation voltage (min)228 V
Output operation voltage (max)232 V
Output frequency50/60 Hz
Output voltage regulation1%
Surge energy rating1530 J
Number of input phases1
Number of output phases1
Efficiency92%
Efficiency (ECO mode)98%
Input power factor0.99
Output power factor0.9
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputNo
Auto shut-offNo
Power source typeAC

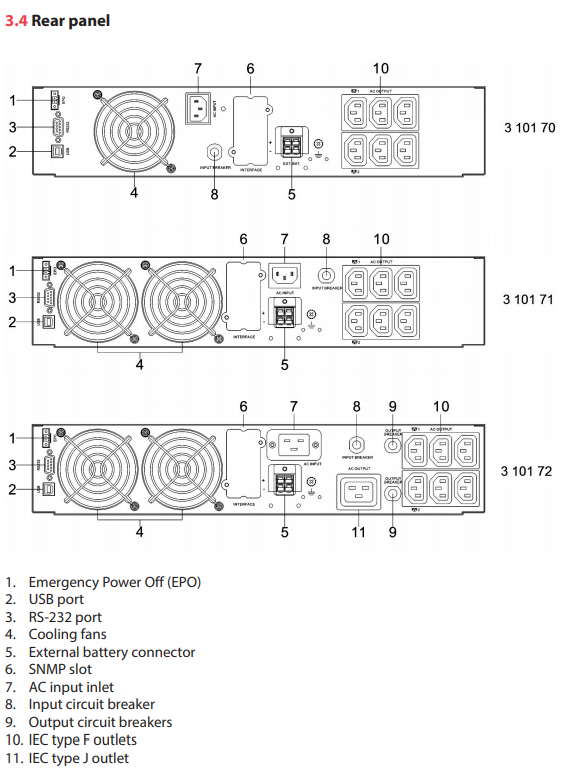

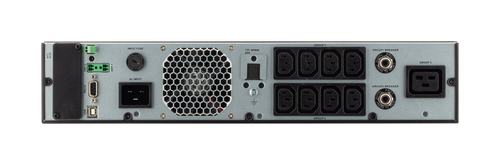

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity7 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported6
Battery recharge time4 h

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Display typeLCD
LED indicatorsStatus
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

CertificationEN 62040-1, EN 62040-2, EN 62040-3

Weight & dimensions

Width88 mm
Depth600 mm
Height440 mm
Weight30 kg

Packaging data

Package width88 mm
Package depth23.2 mm
Package height440 mm
Package weight28.2 kg

Logistics data

Products per pallet10 pc(s)
Harmonized System (HS) code85078000
Pallet net height141 cm
Pallet net length100 cm
Pallet net weight296.8 kg
Pallet net width120 cm
Master (outer) case width560 mm
Master (outer) case length719 mm
Master (outer) case height228 mm
Master (outer) case gross weight29.7 kg
Products per master (outer) case1 pc(s)
