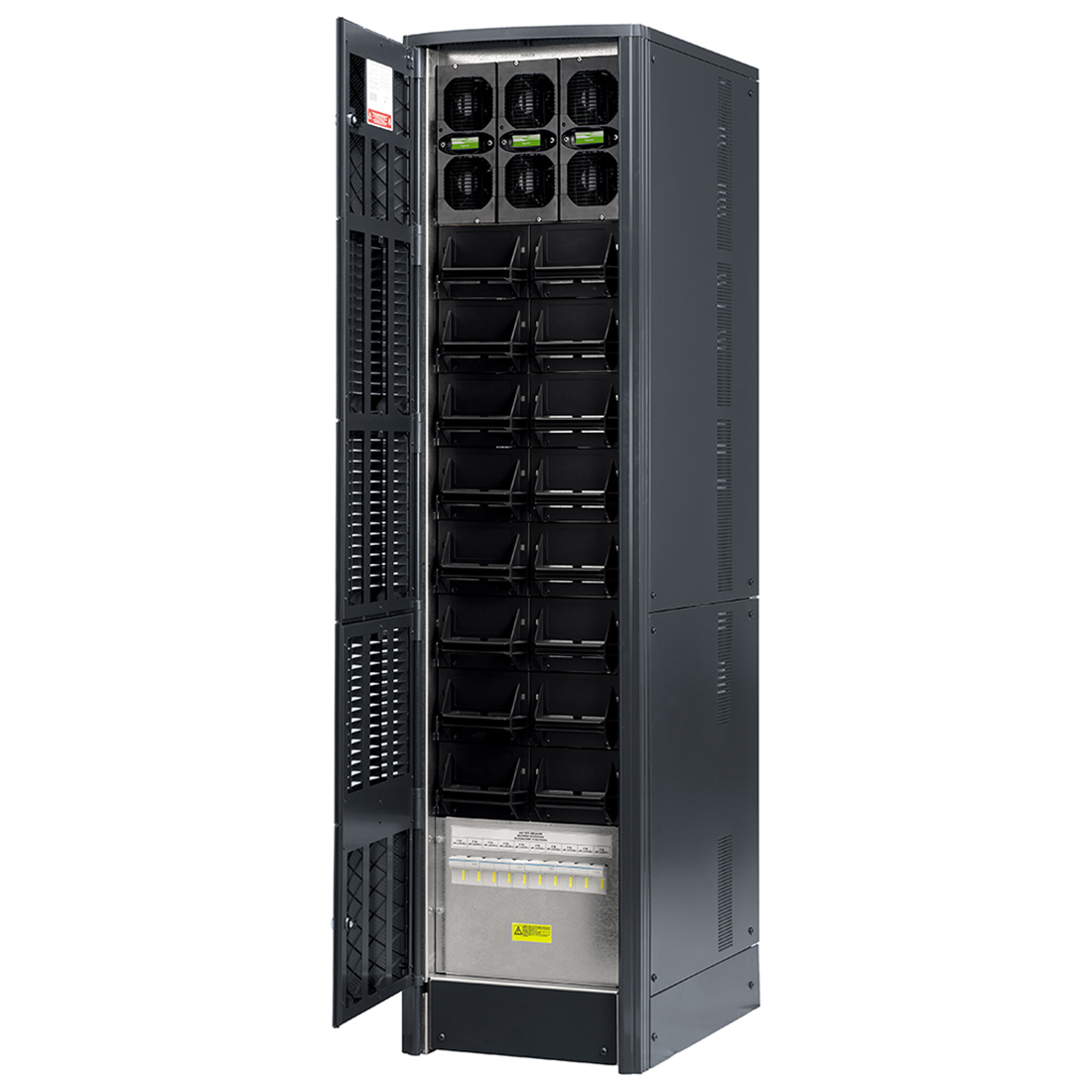

Legrand TRIMOD HE 10kVA/kW 0min ARM.B

Legrand TRIMOD HE 10kVA/kW 0min ARM.B

Model TRIMOD HE 10kVA/kW 0min ARM.BPart no. 310397EAN 3245063103979

47 specifications
  • Noise46 dB
  • TypeTower
  • Weight155 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • RS-232 ports2
See all specifications

Overview

Noise
46 dB
Type
Tower
Weight
155 kg
Colour
Black
UPS topology
Double-conversion (Online)
RS-232 ports
2
Brand
Legrand
Model
TRIMOD HE 10kVA/kW 0min ARM.B
Part number
310397
EAN / UPC
3245063103979
Also known as
Legrand TRIMOD HE 10kVA/kW 0min ARM.B uninterruptible power supply (UPS) Double-conversion (Online) 10000 W

Specifications

47 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Number of input phases3
Number of output phases3
Efficiency96%
Efficiency (ECO mode)99%
Power factor0.99
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)2%
Input current Total Harmonic Distortion (THD)3%
Noise level46 dB
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Power source typeAC

Ports & interfaces

RS-232 ports2

Battery

Battery technologySealed Lead Acid (VRLA)

Design

Form factorTower
Product colourBlack
Display typeLED
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 95%

Weight & dimensions

Width414 mm
Depth628 mm
Height1650 mm
Weight155 kg

Packaging data

Package width414 mm
Package depth429 mm
Package height1650 mm
Package weight136 kg

Logistics data

Products per pallet1 pc(s)
Pallet net height2.22 m
Pallet net length130 cm
Pallet net weight143.2 kg
Pallet net width145 cm
Master (outer) case width600 mm
Master (outer) case length745 mm
Master (outer) case height1737 mm
Master (outer) case gross weight143.2 kg
Products per master (outer) case1 pc(s)
