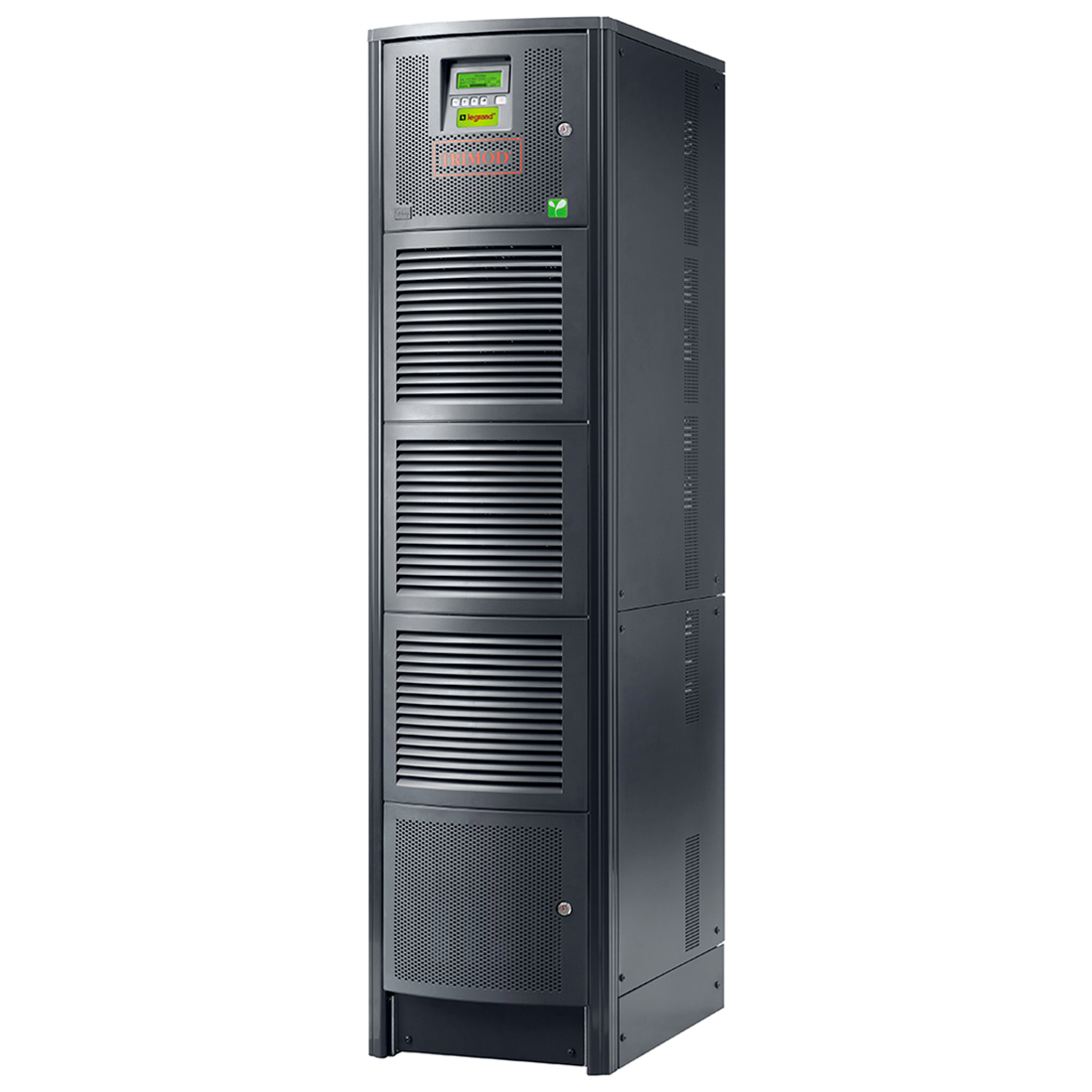

Legrand TRIMOD HE 10kVA ARM.B 3/16

Legrand TRIMOD HE 10kVA ARM.B 3/16

Model TRIMOD HE 10kVA ARM.B 3/16Part no. 310431EAN 3245063104310

38 specifications
  • TypeTower
  • Weight100 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Battery technologySealed Lead Acid (VRLA)
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Type
Tower
Weight
100 kg
Colour
Black
UPS topology
Double-conversion (Online)
Battery technology
Sealed Lead Acid (VRLA)
Operating temperature (T-T)
0 - 40 °C
Brand
Legrand
Model
TRIMOD HE 10kVA ARM.B 3/16
Part number
310431
EAN / UPC
3245063104310
Also known as
Legrand TRIMOD HE 10kVA ARM.B 3/16 uninterruptible power supply (UPS) Double-conversion (Online) 10000 W

Specifications

38 specifications in 7 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Efficiency96%
Efficiency (ECO mode)99%
Output voltage Total Harmonic Distortion (THD)2%
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Power source typeAC

Battery

Battery technologySealed Lead Acid (VRLA)

Design

Form factorTower
Product colourBlack

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width414 mm
Depth628 mm
Height1650 mm
Weight100 kg

Packaging data

Package width414 mm
Package depth429 mm
Package height1650 mm
Package weight110.9 kg

Logistics data

Products per pallet1 pc(s)
Pallet net height2.22 m
Pallet net length130 cm
Pallet net weight116.7 kg
Pallet net width145 cm
Master (outer) case width800 mm
Master (outer) case length1200 mm
Master (outer) case height2105 mm
Master (outer) case gross weight116.7 kg
Products per master (outer) case1 pc(s)
