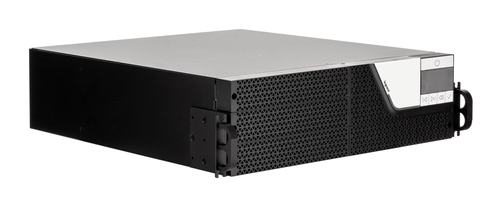

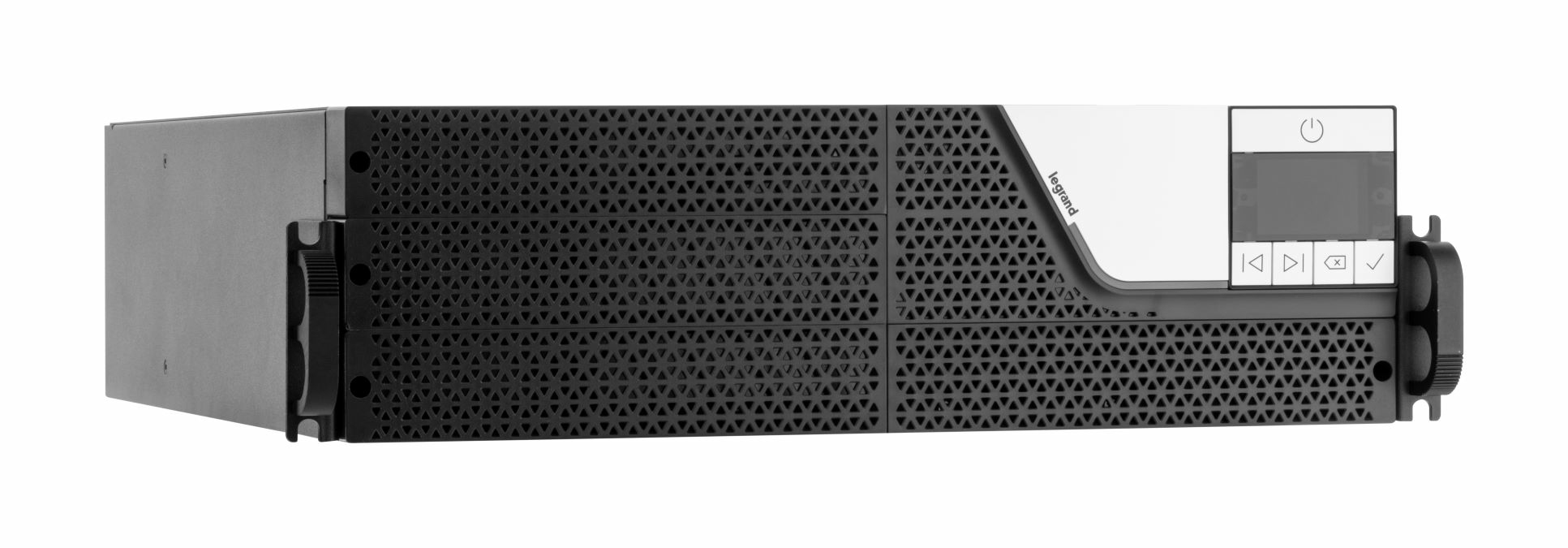

Legrand ASI KEOR SPE rack 3U 2.2KVA

Legrand ASI KEOR SPE rack 3U 2.2KVA

Model ASI KEOR SPE rack 3U 2.2KVAPart no. 311071EAN 3414972083461

28 specifications
  • TypeRackmount
  • Weight28.3 kg
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler, C19 coupler
  • Typical backup time at full load0.00016 min
  • Width440 mm
See all specifications

Overview

Type
Rackmount
Weight
28.3 kg
UPS topology
Line-Interactive
AC outlet types
C13 coupler, C19 coupler
Typical backup time at full load
0.00016 min
Width
440 mm
Brand
Legrand
Model
ASI KEOR SPE rack 3U 2.2KVA
Part number
311071
EAN / UPC
3414972083461
Also known as
Legrand Keor ASI SPE rack 3U 2.2KVA uninterruptible power supply (UPS) Line-Interactive 1980 W 9 AC outlet(s)

Specifications

28 specifications in 5 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1980 W
Input operation voltage (min)175 V
Input operation voltage (max)288 V
Input frequency47/63 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Efficiency85%
Efficiency (ECO mode)98%
Output power factor0.9
Output voltage Total Harmonic Distortion (THD)3%
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputYes
Auto shut-offYes
Power source typeAC

Ports & interfaces

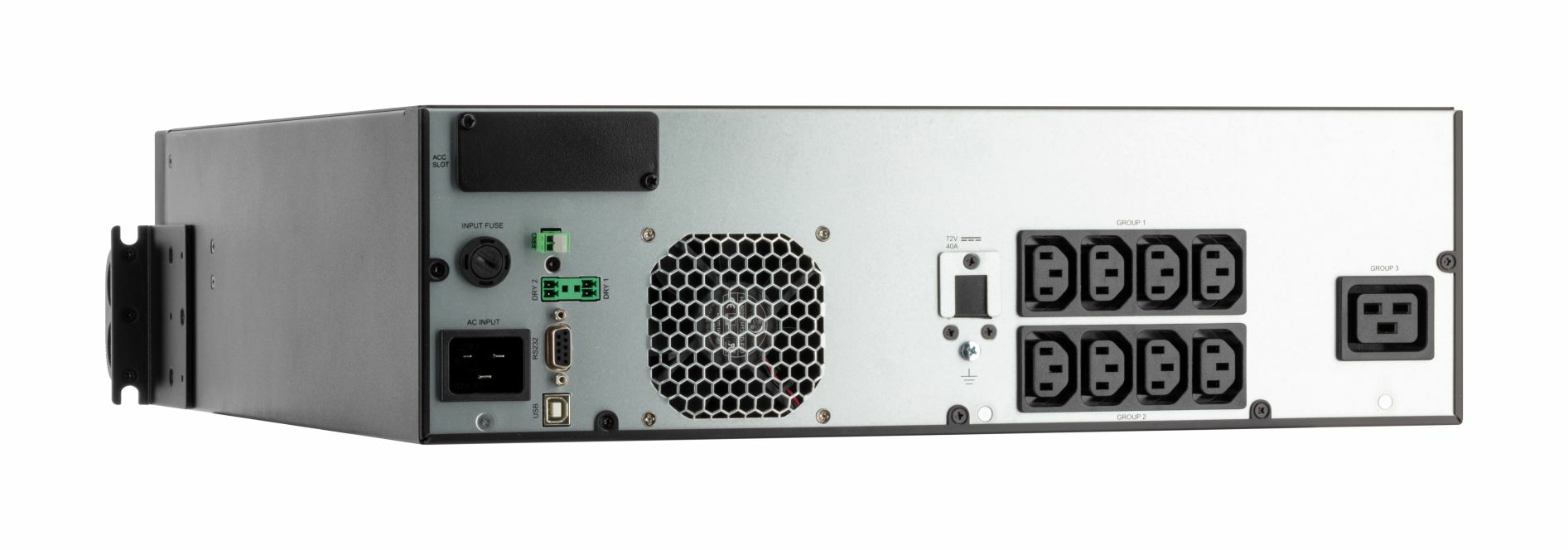

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity9 AC outlet(s)
USB portYes
Serial interfaceNo

Battery

Typical backup time at full load0.00016 min

Design

Form factorRackmount

Weight & dimensions

Width440 mm
Depth500 mm
Height132 mm
Weight28.3 kg
