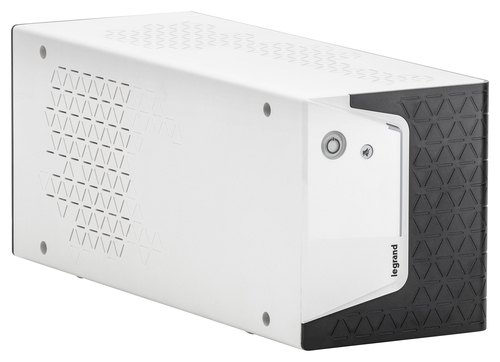

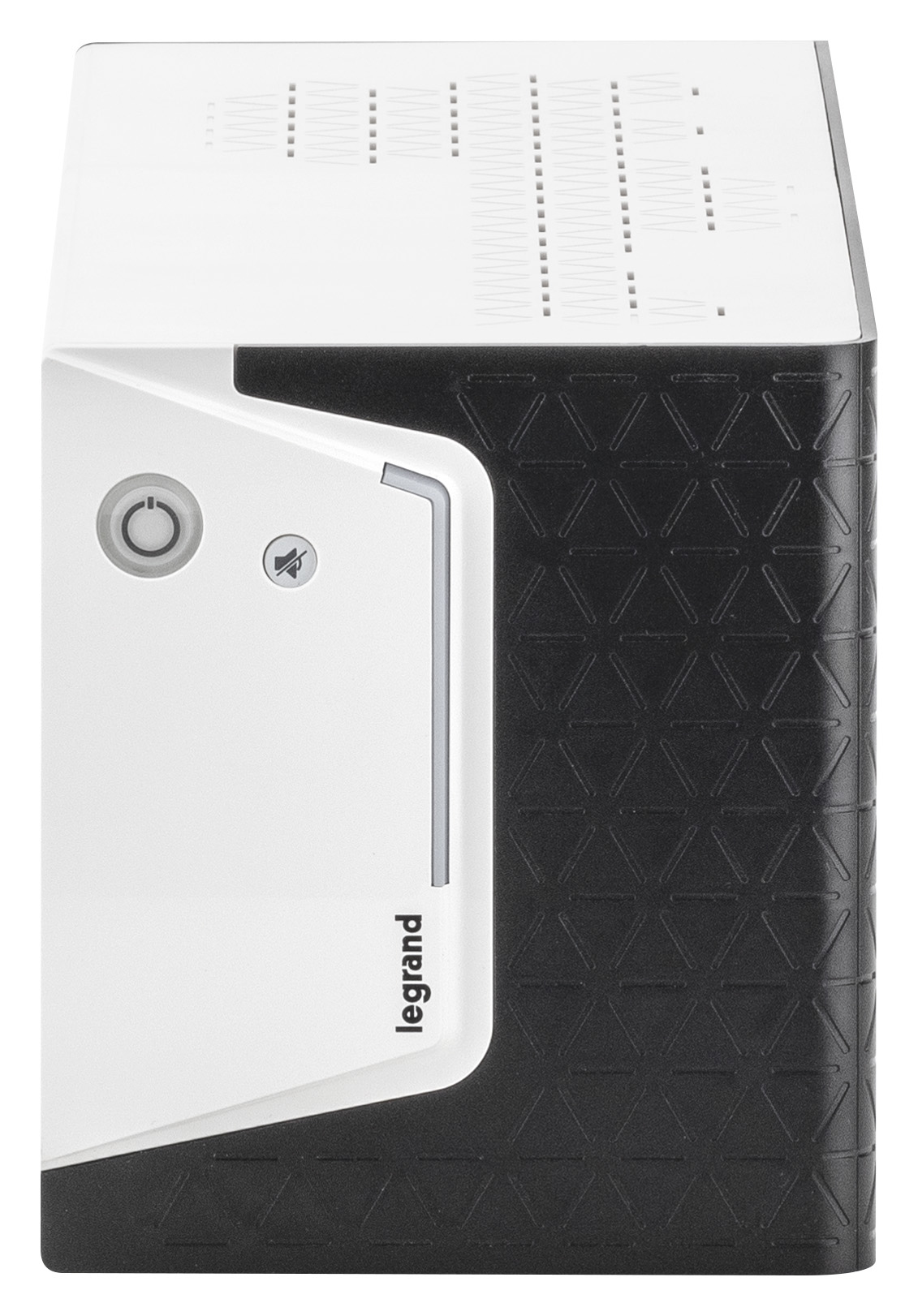

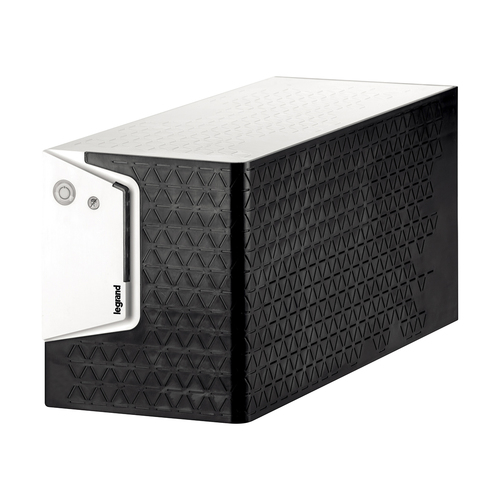

Legrand ASI KEOR SP 800 GR

Legrand ASI KEOR SP 800 GR

Model ASI KEOR SP 800 GRPart no. 310184EAN 3414971232013

62 specifications
  • Battery9 Ah
  • Noise40 dB
  • TypeMini Tower
  • Weight5.5 kg
  • ColourBlack, White
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
9 Ah
Noise
40 dB
Type
Mini Tower
Weight
5.5 kg
Colour
Black, White
UPS topology
Line-Interactive
Brand
Legrand
Model
ASI KEOR SP 800 GR
Part number
310184
EAN / UPC
3414971232013
Also known as
Legrand Keor ASI SP 800 GR uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 480 W 2 AC outlet(s)

Specifications

62 specifications in 10 groups

Features

UPS topologyLine-Interactive
Output power capacity0.8 kVA
Output power480 W
WaveformSine
Input operation voltage (min)170 V
Input operation voltage (max)280 V
Input frequency45/65 Hz
Output operation voltage (min)207 V
Output operation voltage (max)253 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Number of output phases1
Efficiency97%
Output power factor0.6
Noise level40 dB
Surge protectionYes
Power protection featuresOvercharge, Overdischarge, Overload, Short circuit
Audible alarm(s)Yes
Potential-free outputNo
Auto shut-offNo
Power source typeAC

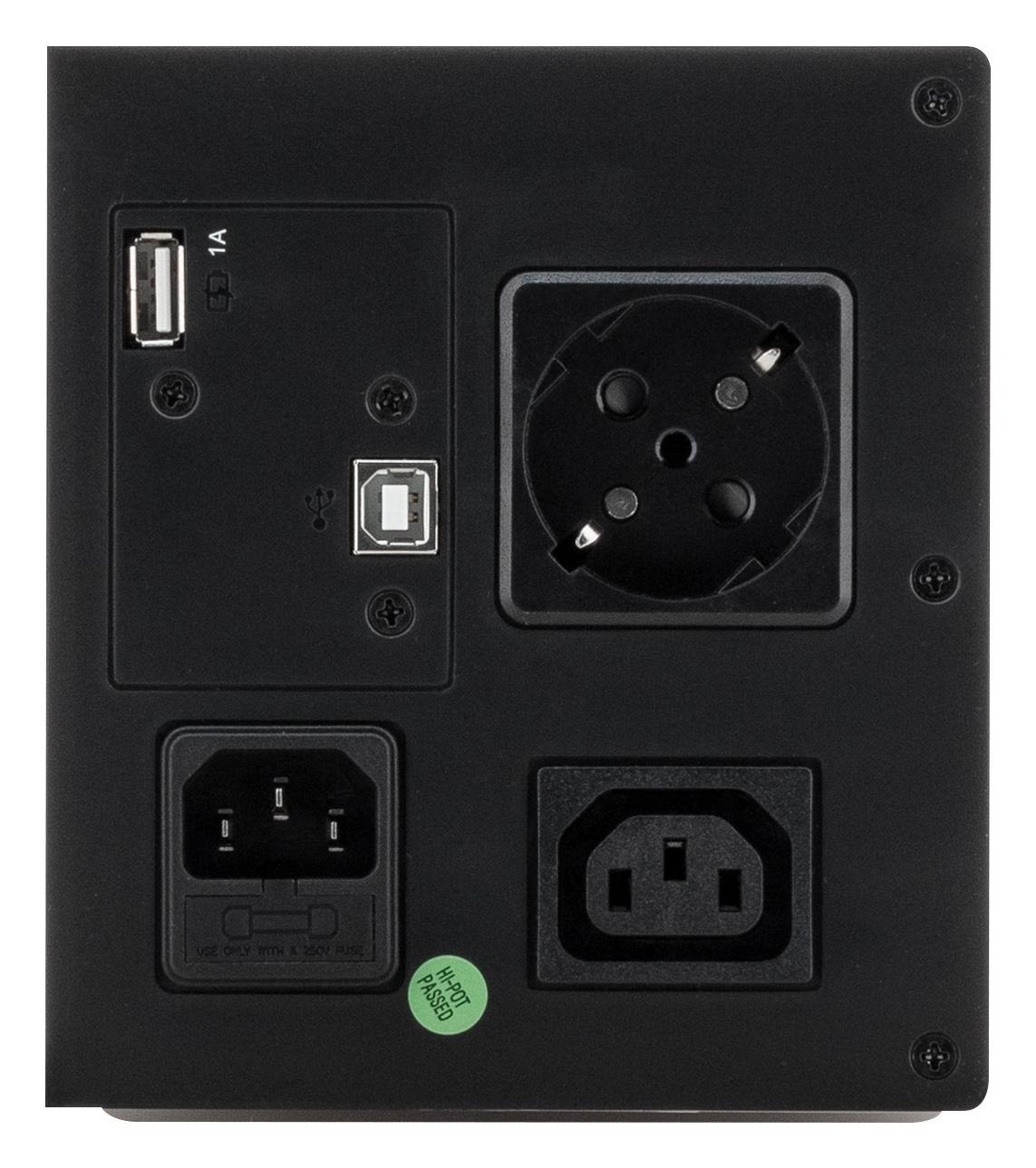

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity2 AC outlet(s)
Number of type F outputs1
USB portYes
USB 2.0 ports quantity2
USB port typeUSB Type-A/USB Type-B
Serial interfaceNo

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Number of batteries supported1

Design

Form factorMini Tower
Product colourBlack, White
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

Compliance certificatesCE
CertificationEN 62040-1, EN 62040-2

Sustainability

Sustainability complianceYes

Weight & dimensions

Width120 mm
Depth330 mm
Height138 mm
Weight5.5 kg

Packaging data

Package width120 mm
Package depth5.46 mm
Package height138 mm
Package weight6.17 kg

Logistics data

Products per pallet60 pc(s)
Harmonized System (HS) code85078000
Pallet net height135 cm
Pallet net length100 cm
Pallet net weight389.6 kg
Pallet net width120 cm
Master (outer) case width192 mm
Master (outer) case length392 mm
Master (outer) case height218 mm
Master (outer) case gross weight6.49 kg
Products per master (outer) case1 pc(s)
